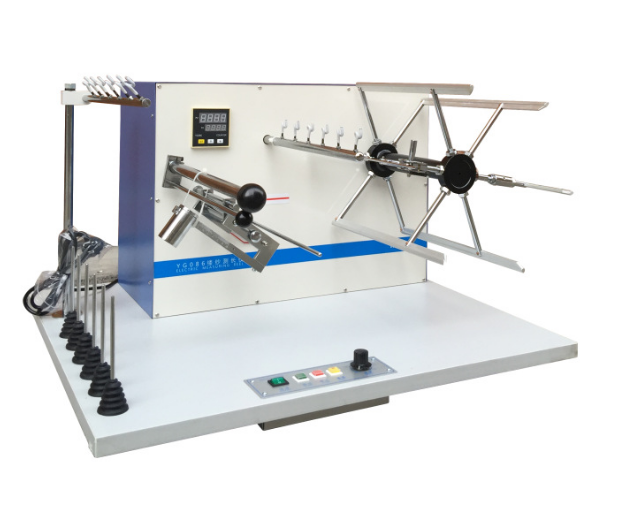

Equipment Overview:
The yarn of the sample on the bobbin is shaken by the yarn frame, and the tension of the yarn can be selected for accurate measurement of the length of the yarn, the measurement of the linear density or the number of the yarn, and the strength test of the crepe.

Meet the criteria:
GB/T4743 GB/T14343 GB/T6838 ISO2060 ASTM D1907 and so on.

Technical parameter：

1.Testing spindle numbers: 6 magentas

2.Spindles space: 60mm

3.Winch circumference: 1000±1mm

4.Winch speed: 30~300rpm(Stepless speed regulation)

5.Palygorskite yarn laps: 1~9999

6.Shake yarn peciprocating distance of horizontal travel:35±0.5mm

7.Single yarn tension range:0~100±1cN

8.Power source:AC220V  50Hz  100W

【Features】:

1. Yarn frame:

The frame is composed of six-leaf blades, and the yarn is wound into a frame and has a hexagonal shape. One of the leaves is movable, which facilitates the falling of the crepe and avoids the influence of artificial tension on the crepe when the crepe falls.

2. Shake tension:

The tension of the yarn and the tension adjusting rod is adjusted by a tension adjuster composed of two open parallel tension adjusting rods to adjust the tension of the yarn, and is measured by a lever tension scale.

3. Transmission mechanism:

The transmission mechanism is installed in a casing, which is not easy to be ashed, and the reliability of use is guaranteed. The rotation of the frame and the traverse reciprocating movement are respectively driven by two separate motors.

(1) Yarn frame transmission:

The frame of the yarn is driven by two pairs of pulleys through two pairs of pulleys. The speed of the frame is steplessly changed by the electric control. The frame is started smoothly. The final rotation of the frame is rotated to the final lap. The yarn frame is parked correctly and smoothly.

(2) Shaker traverse reciprocating transmission:

The synchronous motor directly drives the cam to run at the same speed, and pushes the traverse guide hook to reciprocate in the same direction, so that the yarn reciprocates when the yarn is wound. The larger traverse reciprocating width will reduce the overlapping layer of the yarn during winding. number.

4, crepe lap number control mechanism:

The number of crepe turns is pre-selected by the manual button on the counter. The number of turns of the yarn frame is no contact, the switch switches the signal, and the counting number of the counter shows the number of turns of the yarn frame. The precision counter guarantees the selection of the number of turns. Correctness of control
