Xenon Arc Lamp is a kind of comprehensive climate test equipment, support climate aging test, polymer light fastness test (Polymer materials exposed to simulated solar spectrum of artificial light through the glass to assess the light resistance of materials). From the light, temperature, rain or condensation, humidity and so on to do the simulation and strengthen test; use simulating full sunlight spectrum xenon arc lamp to simulate the destructive waves of different environment. Can be used for the selection of new materials, improvement of existing materials or evaluate the material durability After material composition changes and other testing.
Machine summary:

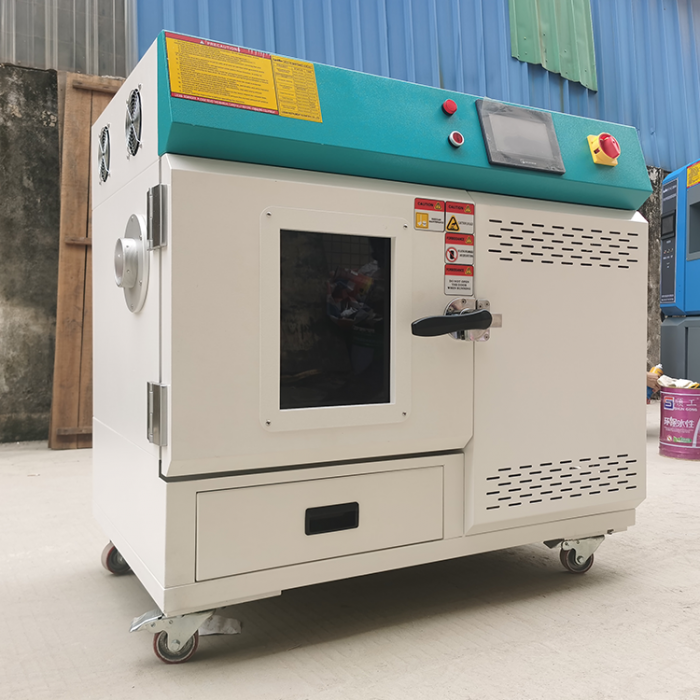

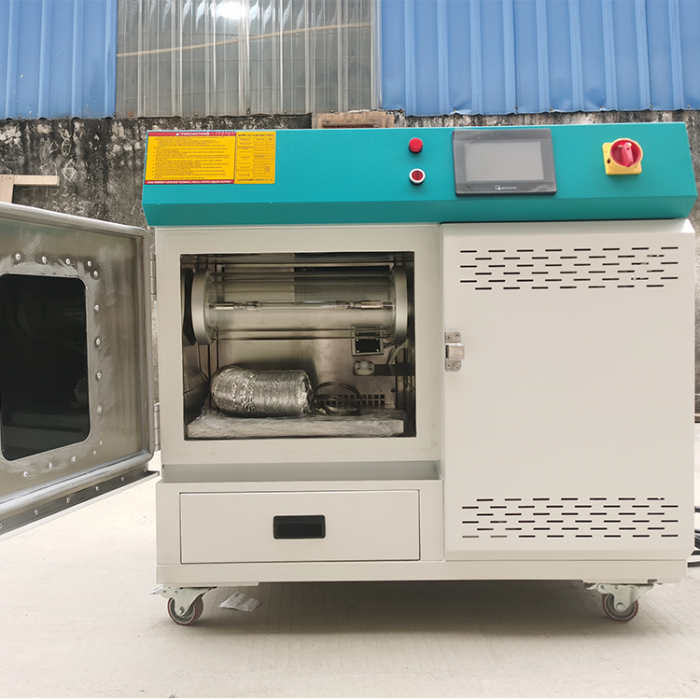

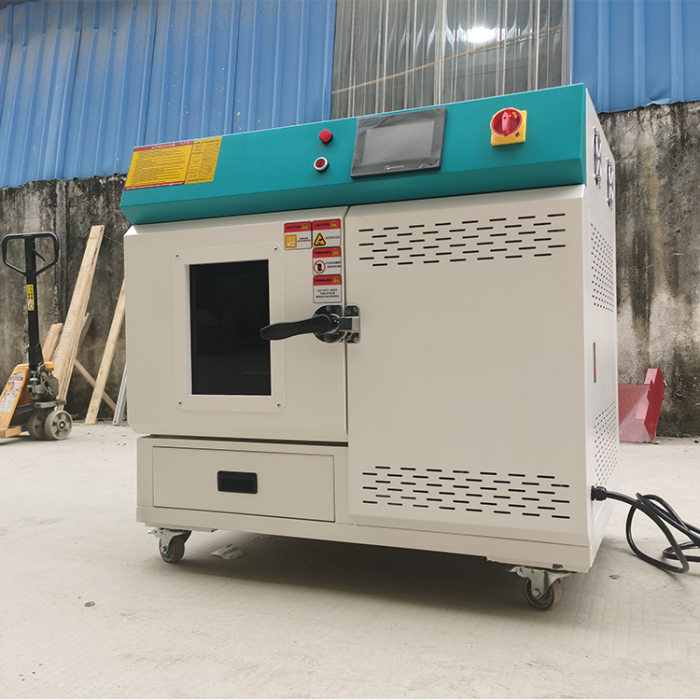

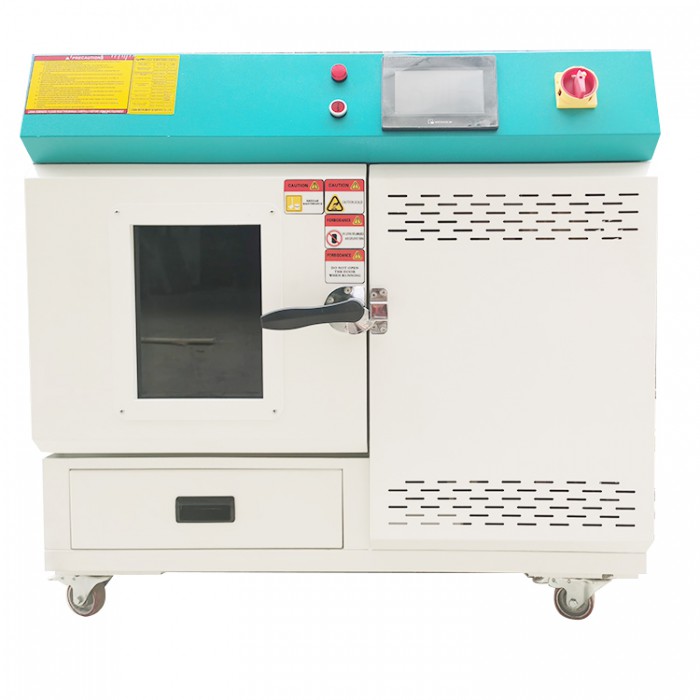

The Xenon Testing Chamber Simulate the uv light ,and the machine make the test specimen expensed to uv light,high temperature and water spray to proceed the test! This machine use xenon lamp tube to simulate the sunlight radiation, use the condensate and spray to simulate the dew and rain.
Xenon Testing Chamber only need a few days or weeks time, can show the condition or the parts components of aging damage status outdoor many months even a few years time, including colour fading, color change, fracture, fissure, wrinkle, blister, embrittlement, strength reduction, oxidation and so on.
Maintenance of equipment:
Installation site should consider factors such as the cooling efficiency of the machine and easy to check the maintenance, Other installation considerations:
1. The distance between this machine with wall and any other machines should be more than 60cm.
2. Should be set on the ground of the plain, no vibration, and use gradienter examination.
3. Ambient temperature should be keep into 10℃～25℃, the machine can operate in the most stable status. If ambient temperature change too fast, for example change 5℃ or more in a few minutes, the temperature and humidity control and cooling rate, will can’t very stable control.
Should be away from the heat source and inflammable, explosive substance.
4. Do not under direct sunlight, and maintain indoor airiness.
5. Avoid placed in the place of the dust too much.
6. Power supply line and the drain road, should be shortened as much as possible.
The Xenon Testing Chamber Simulate the uv light ,and the machine make the test specimen expensed to uv light,high temperature and water spray to proceed the test! This machine use xenon lamp tube to simulate the sunlight radiation, use the condensate and spray to simulate the dew and rain.
Xenon Testing Chamber only need a few days or weeks time, can show the condition or the parts components of aging damage status outdoor many months even a few years time, including colour fading, color change, fracture, fissure, wrinkle, blister, embrittlement, strength reduction, oxidation and so on.
Maintenance of equipment:
Installation site should consider factors such as the cooling efficiency of the machine and easy to check the maintenance, Other installation considerations:
1. The distance between this machine with wall and any other machines should be more than 60cm.
2. Should be set on the ground of the plain, no vibration, and use gradienter examination.
3. Ambient temperature should be keep into 10℃～25℃, the machine can operate in the most stable status. If ambient temperature change too fast, for example change 5℃ or more in a few minutes, the temperature and humidity control and cooling rate, will can’t very stable control.
Should be away from the heat source and inflammable, explosive substance.
4. Do not under direct sunlight, and maintain indoor airiness.
5. Avoid placed in the place of the dust too much.
6. Power supply line and the drain road, should be shortened as much as possible.
Technical parameter:
| Model | HZ-2025 Xenon Arc Lamp | |
| Sample exposure area | 560cm2 | |
| Performance index | Blackboard or black mark temperature | BST 35°C-100°C |
| Spectral wavelength | UV-A340, wave length: 340nm | |
| Irradiation light source | Full spectrum xenon lamp (air-cooled) | |
| Irradiance/(w/m2×nm): adjustable | ||
| Xenon lamp power | 2.5kw (lifetime: 600-800 hours) | |
| Temperature and humidity control system | Time controller | Import programmable time computer integrated controller (MOELLER) |
| Accuracy range | Setpoint accuracy: temperature±0.1°C Indication accuracy: temperature±0.1°C | |
| Temperature Humidity Sensor | Platinum resistance Pt100Ω/mv | |
| Heating system | The independent system, Nickel-chromium alloy electric heating heater | |
| Temperature controller | Import integrated microcomputer temperature and humidity controller | |
| Circulatory system | Low noise of heat-resistant air-condition type motor, leafy type centrifugal rotor, Cooling tubes used air-cooled system | |
| Water spray | As option by buyer | |
| Accessories | One pc Xenon lamp as spare parts; Filter, calibrator as option by buyer | |
| Power voltage | AC220V±10% 50±0.5HZ | |
| Dimension | 81x35x75CM L*D*H | |
| Weight | 60kg | |
