Equipment Overview:

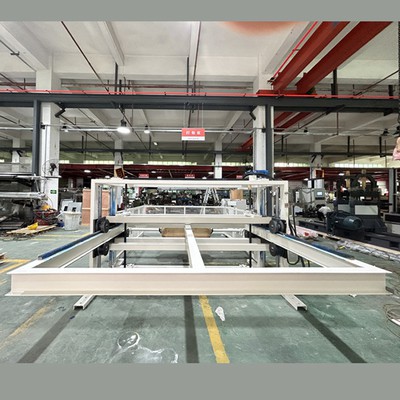

This machine uses a touch screen human-machine interface and a PLC programmable controller to form the control core. The mechanical part is simple and easy to operate. It is mainly used to test the ability of the inflatable cushion to withstand long-term repetitive rolling loads.

Test principle;

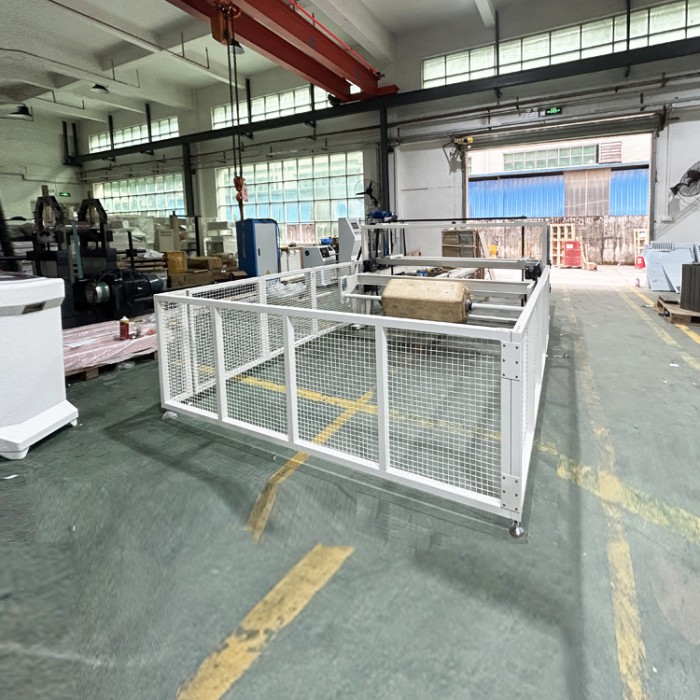

A rolling loading module (hexagonal roller) is placed on the loading part of the horizontally placed inflatable cushion, and rolls at a certain frequency to test the ability of the inflatable cushion to withstand long-term repetitive rolling loads.

Technical parameters:

1. The maximum mattress size that can be placed on the machine: 2*2m

2. The roller can be raised and lowered before and after the test, which is convenient for placing the mattress

3. The loading force during the test can be increased by adding steel plate weights

4. Counting accuracy: 100,000 times ±1 time

5. Counter: 0--999,999 can be set arbitrarily (with power-off retention function)

6. Control system: PLC

7. Display: LCD touch screen

8. Set the number of tests and test speed arbitrarily.

9. Display speed, number of times, test time

10. Steel profile frame structure

11. Test speed: 0-20 rpm (adjustable) (depending on the stroke)

12. Machine size: about 2600*2700*2150
