Tester summary:
Martindale Pilling Tester is testing wear-resistance property of textiles, footwear, etc. ... testing 4 specimen at the same time, At testing the hammer mill alway change its orientation (lissajious), repeated abrase specimen until reach a certain times and then to measure its frictional property.
Corresponding standard:
BS-3424, ASTM-D4966, DIN-53863, SATRATM31, ISO-20344
Applicable Industry:
textile, rubber, leather, synthetic leather, shoes, etc.
Martindale Pilling Tester is testing wear-resistance property of textiles, footwear, etc. ... testing 4 specimen at the same time, At testing the hammer mill alway change its orientation (lissajious), repeated abrase specimen until reach a certain times and then to measure its frictional property.
Corresponding standard:
BS-3424, ASTM-D4966, DIN-53863, SATRATM31, ISO-20344
Applicable Industry:
textile, rubber, leather, synthetic leather, shoes, etc.
Technical parameters:

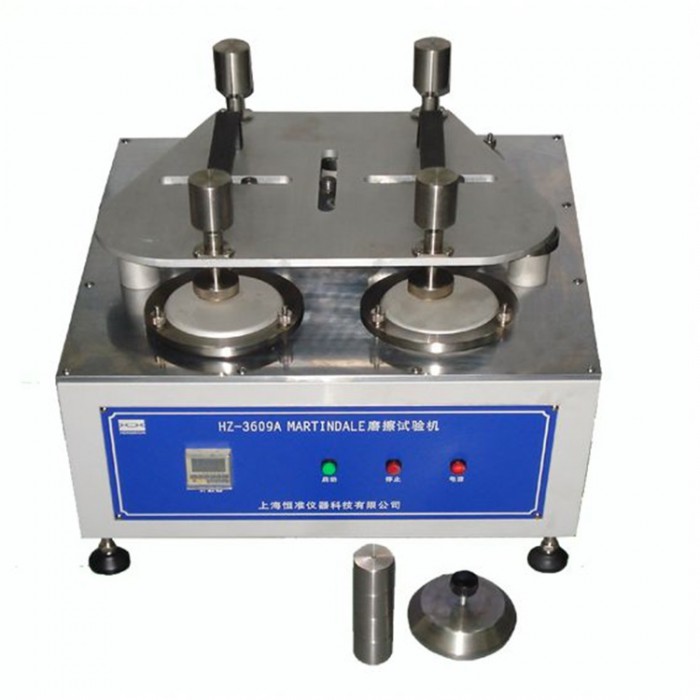

Model: HZ-3609A
specimen: 44±1mm×4
Load: 595g 795g
Count: Electronic
Volume: 56.5×56.5×45cm
Weight: 40kg
Power: AC220V, 0.6A
