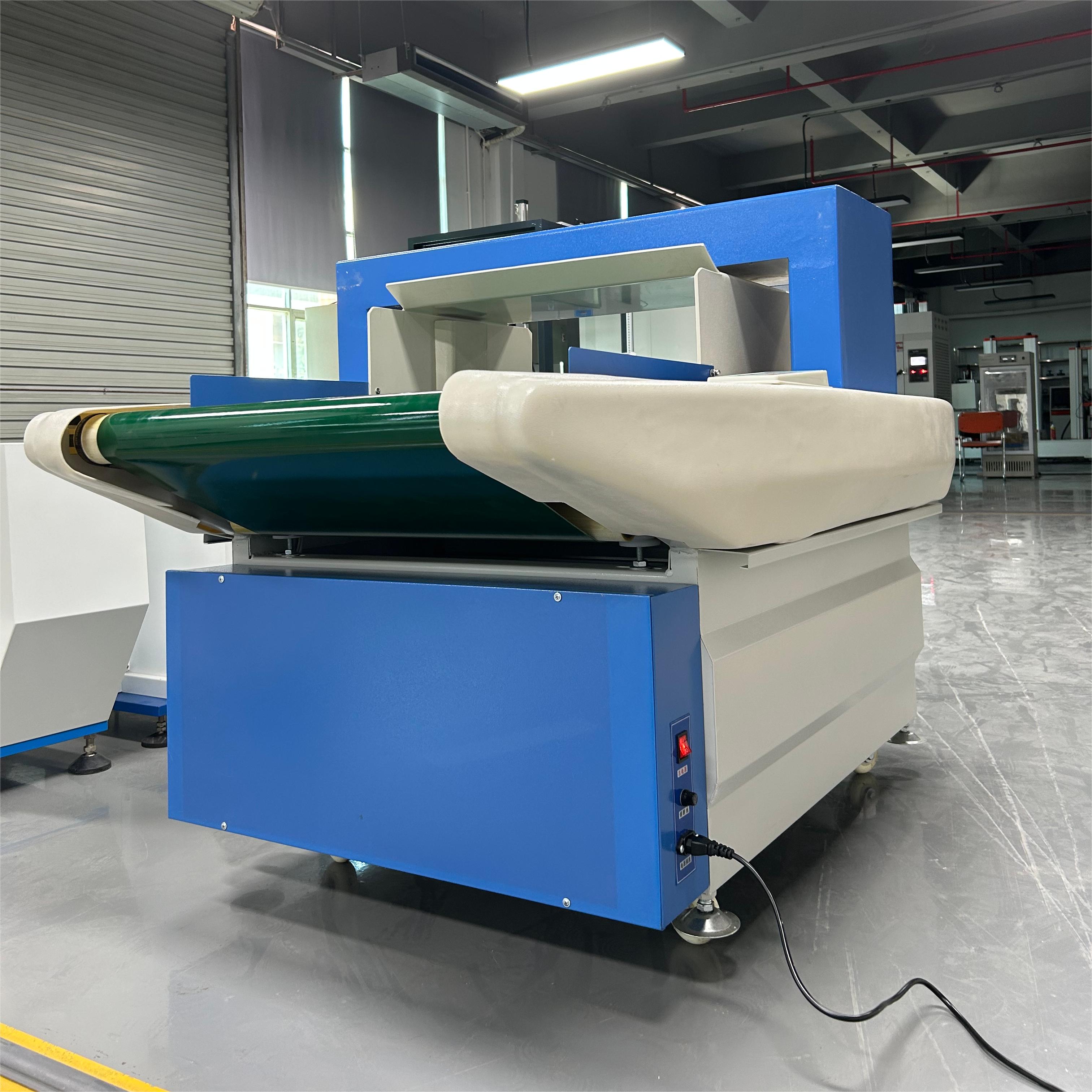

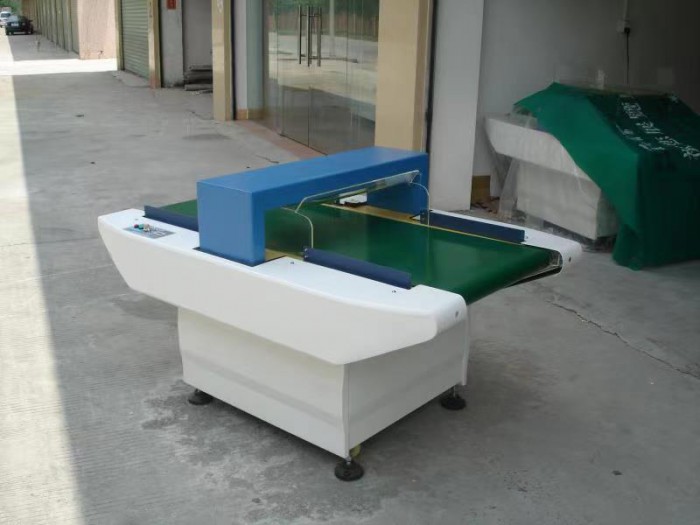

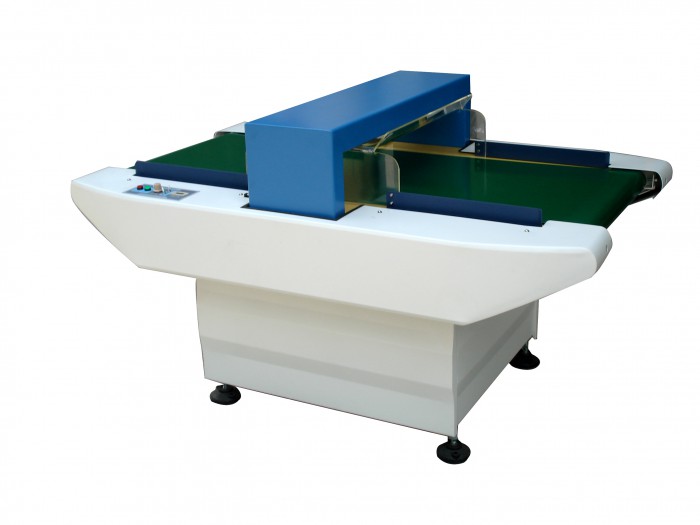

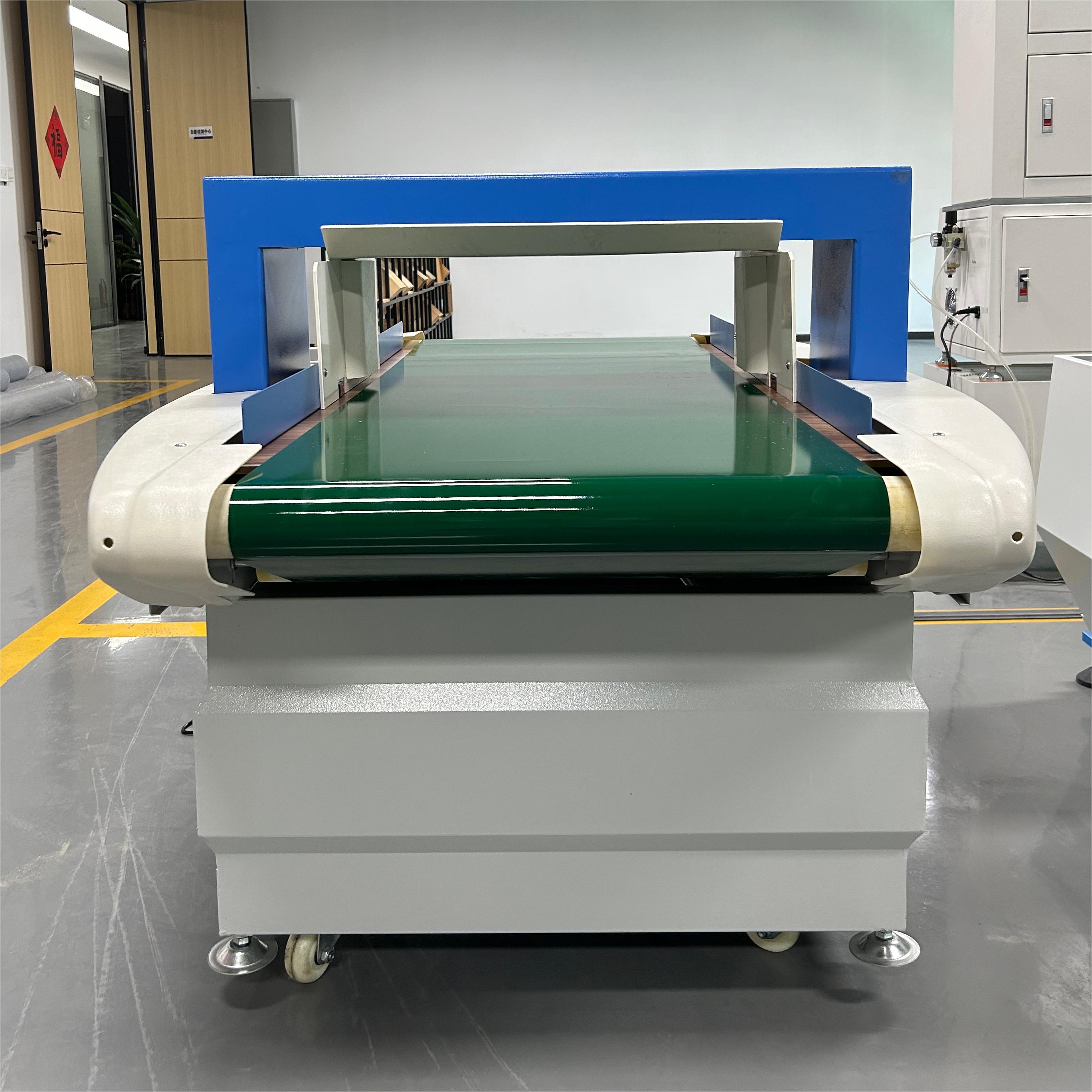

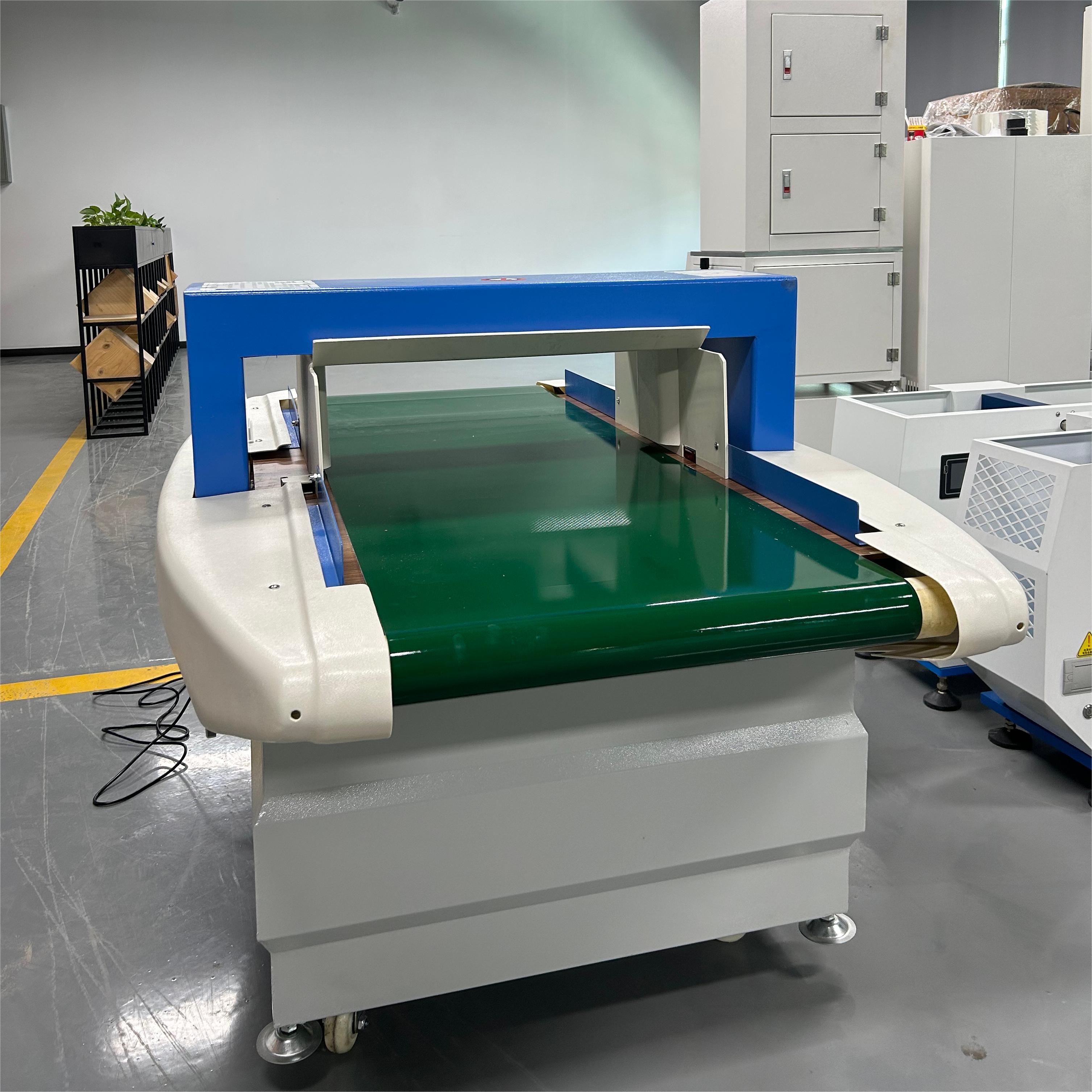

Conveyor Type Needle Detector Machine HZ-3607 isused in the detection of shoes, clothing, hat, toys, textiles, food, pharmaceutical products that have the hidden iron, needles, nails.
Equipment summary:
Needle detector machine isused in the detection of shoes, clothing, hat, toys, textiles, food, pharmaceutical products that have the hidden iron, needles, nails.
Features:
high sensitivity of this type of machine, good stability, it will automatically alarm as detect Broken Needle and return the prodcut to the manufacturing line.
Corresponding standard: QB/T 2638-2004
Applicable Industries:
Widely used in the export of garments, knitwear, bedding, down products, leather shoes, hats, plush toys, as well as food, medicine and other industries, Testing in the manufacturing process left the Broken Needle, pins, small iron filings in the product.
Technical parameters:
Needle detector machine isused in the detection of shoes, clothing, hat, toys, textiles, food, pharmaceutical products that have the hidden iron, needles, nails.
Features:
high sensitivity of this type of machine, good stability, it will automatically alarm as detect Broken Needle and return the prodcut to the manufacturing line.
Corresponding standard: QB/T 2638-2004
Applicable Industries:
Widely used in the export of garments, knitwear, bedding, down products, leather shoes, hats, plush toys, as well as food, medicine and other industries, Testing in the manufacturing process left the Broken Needle, pins, small iron filings in the product.
Technical parameters:
| Model | HZ-3607-600 | HZ-3607-1000 | HZ-3607-2000 |
| Detection high | 100mm, 120mm, 150mm, 300mm | ||
| Sensitivity | 1.0mm, 1.2mm, 1.5mm, 2.0mm | ||
| Detection width | 600mm | 1000mm | 2000mm |
| Power | 200V 50HZ | ||
| Alarm | buzzing | ||
| Conveyor speed | About 30m/min | ||
| Consumed power | 110W | ||
| Volume | 1820*1050*900 (L*W*H) | ||
