The machine used to test the waterproof function for rubber-faced, rubber shoes and shoes lined. pneumatic clamps bring the sample into water and charging to a certain degree of air at the same time, if the sample leak water , it will immediately generate bubbles, when the bubbles reach the set time, the fixture with the sample will surface.
Equipment summary:

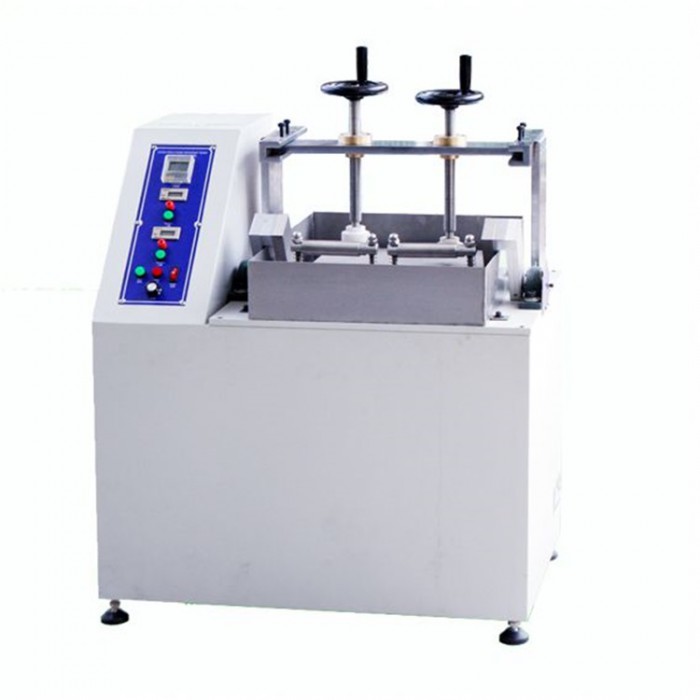

HZ-3609B Shoes lining seepage testing equipment used to test the waterproof function for rubber-faced, rubber shoes and shoes
lined. pneumatic clamps bring the sample into water and charging to a certain degree of air at the same time, if the sample leak water ,
Shoes lining seepage testing equipment will immediately generate bubbles, when the bubbles reach the set time, the fixture with the
sample will surface.
Applicable industry shoes:Rubber face rubber boots
Corresponding standard: HG/ T3664
Technical parameters:
Model | HZ-3609B Shoes lining seepage testing equipment |
Test at same time | 2 pcs 4 pcs according to needs |
clip plane lenght | 220mm |
Fixture lifting displacement | 320mm |
Filling pressure | 0~50kPa |
Timer | LED, 0~999 sec |
Volume | 105×56.5×146.5cm |
Weight | 128kg |
Power | 1ζ, AC220V, 2 A |
