This measuring instrument can be applied to various: aerospace, automobile and shipbuilding, scientific research and teaching, electronic appliances, hardware and plastics, precision metal stamping plates, silk screen screens, acrylic plates, LCP films, PCB boards, LCDTFT, glass cover plates, TP, ultra-large LCD display frames, die cutting, backlight modules, etc., and is suitable for measurement industries such as reverse engineering plane research and development, design, drawing editing, and experimental inspection laboratories.

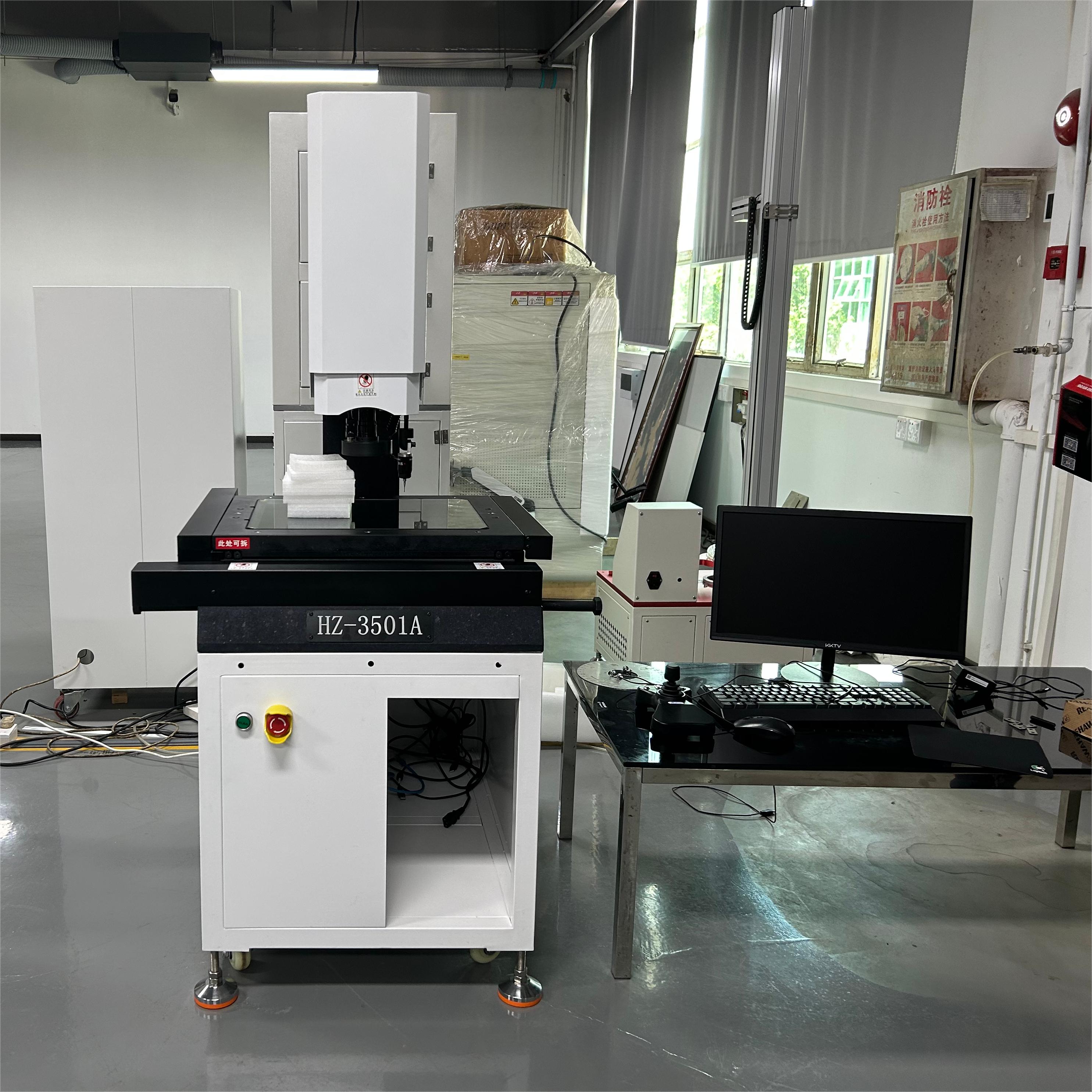

Equipment Summary：

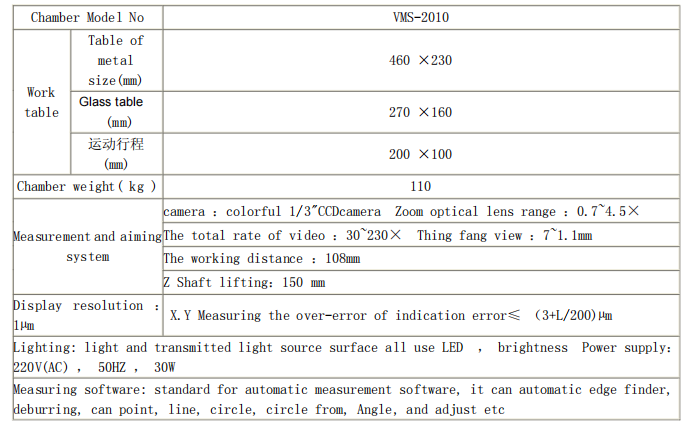

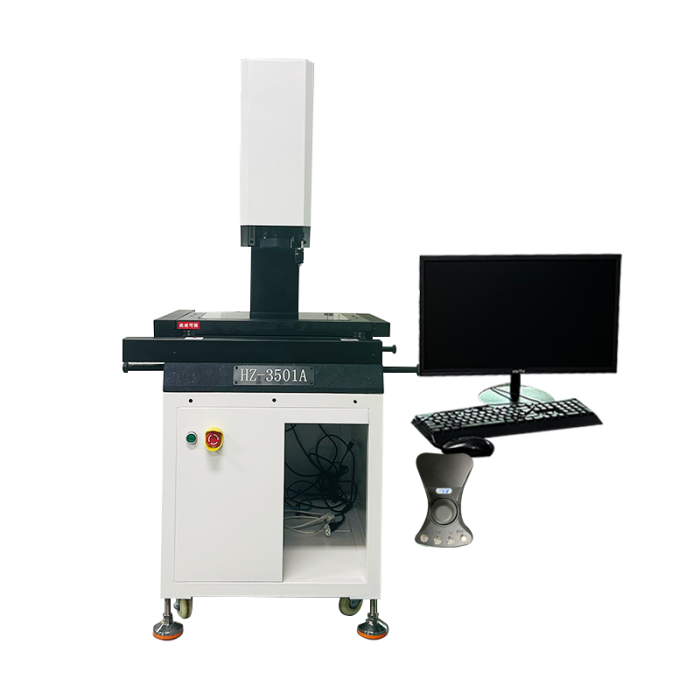

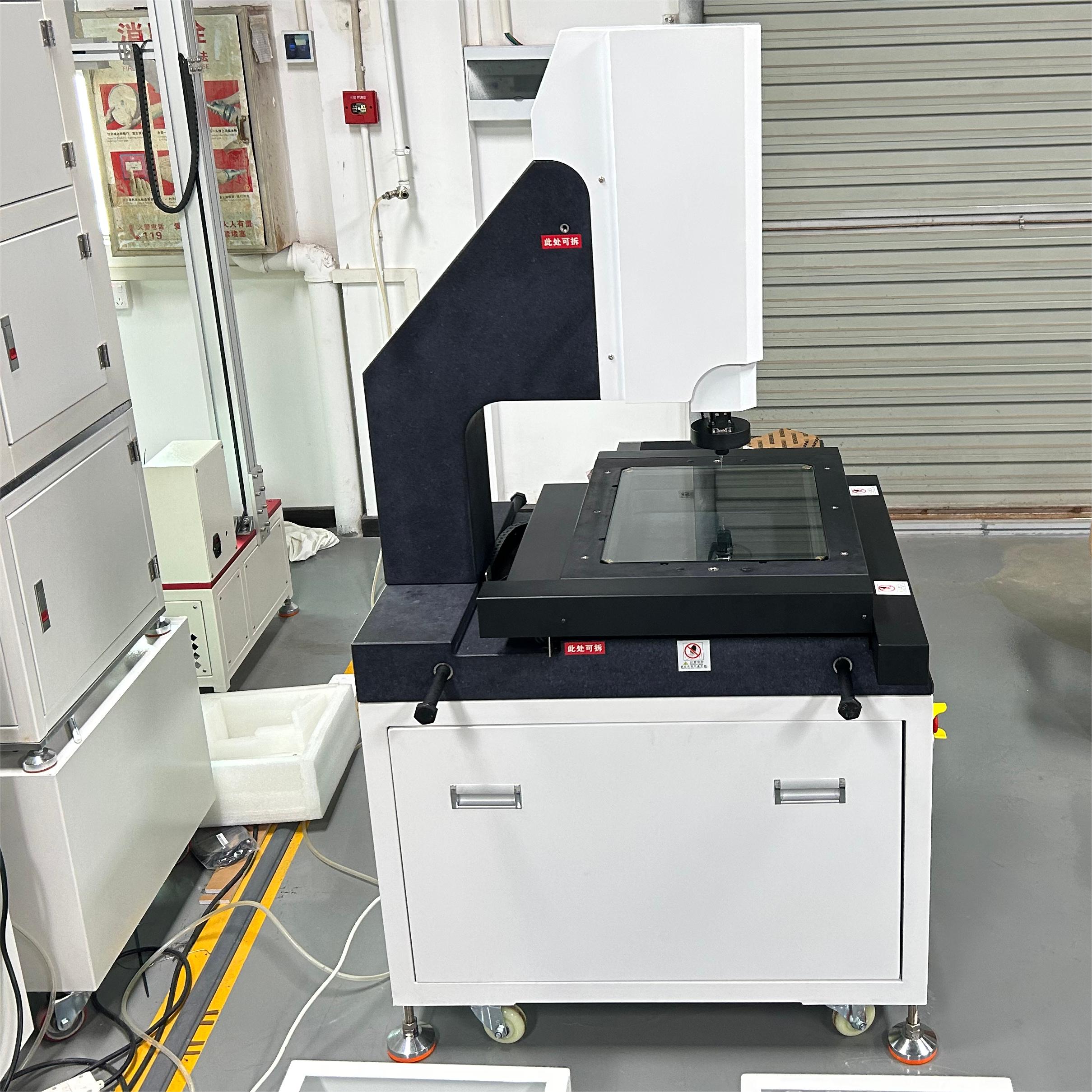

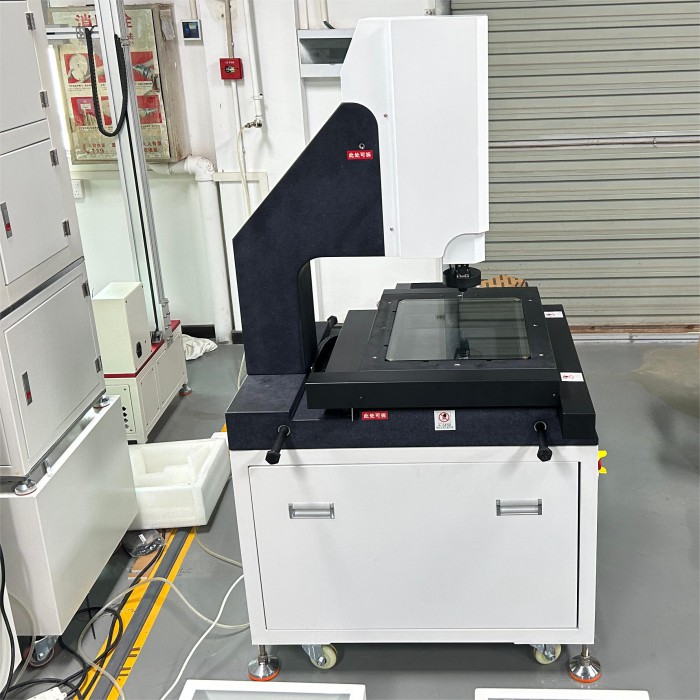

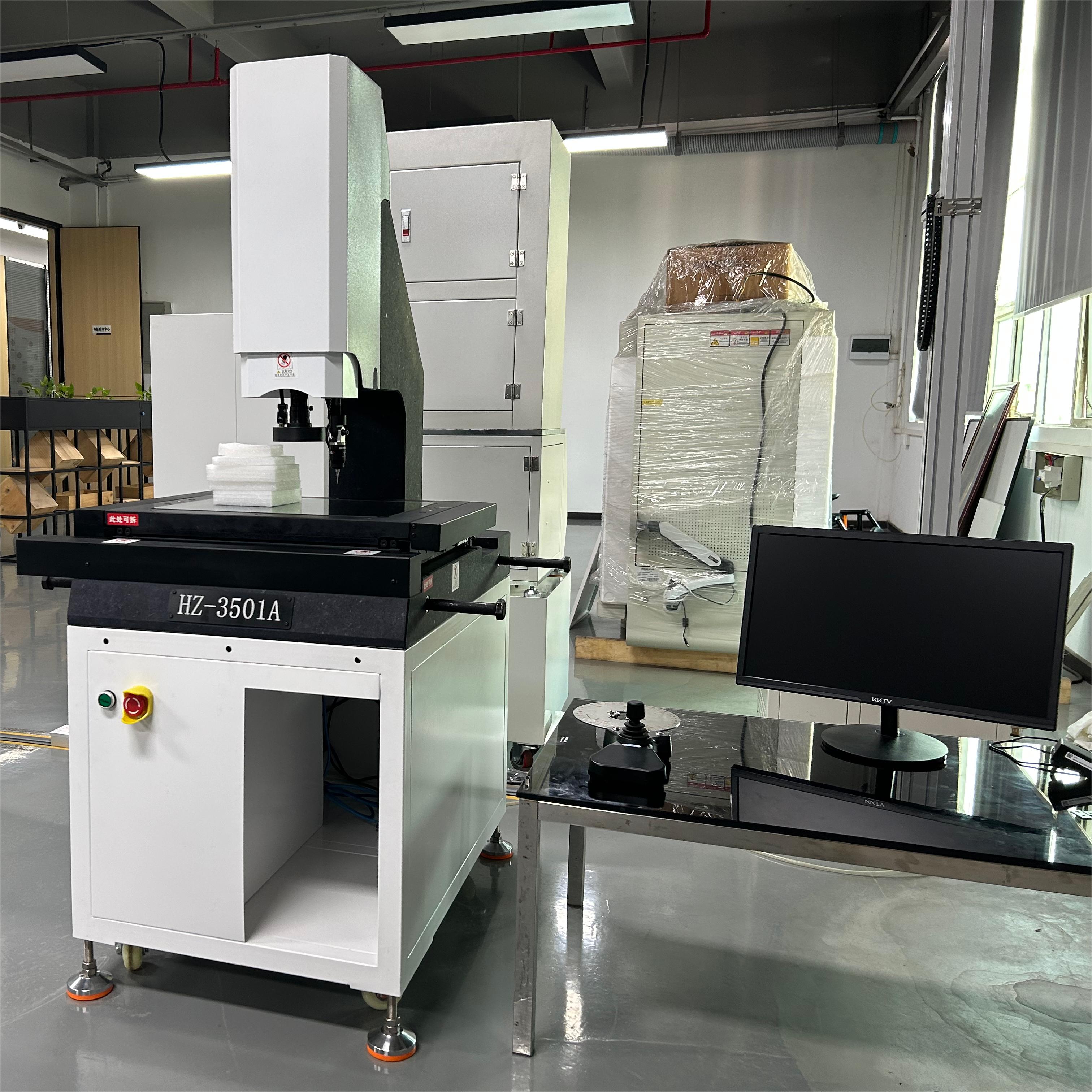

This instrument is applicable to two coordinates measuring for the purpose of all fields of application, machinery, electronics, instruments, plastic etc widely used.

Main Feature :

1. The instrument with RS - 232 interface, after connect with computer, using special measuring software M2D of surveying and mapping graphics processing and output.

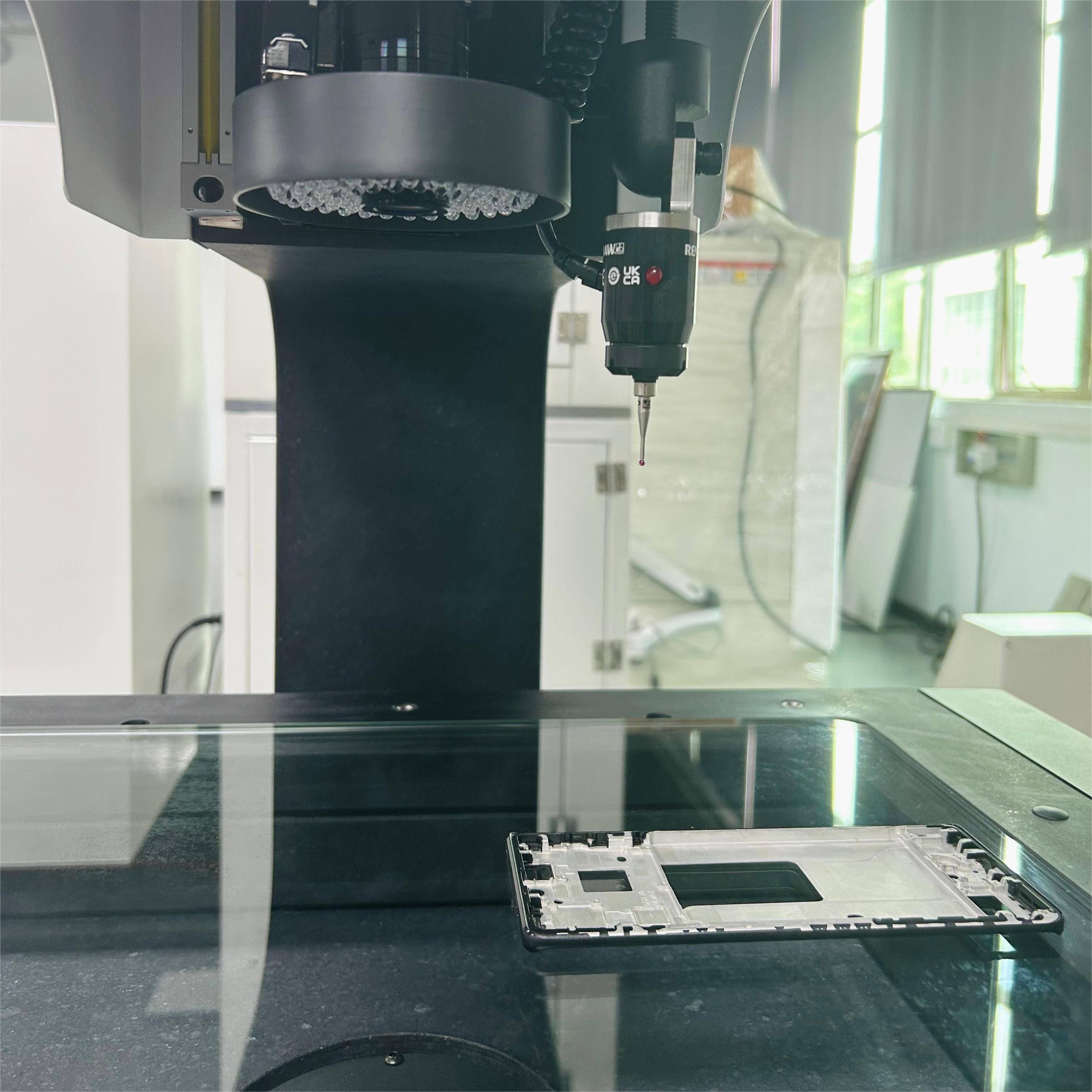

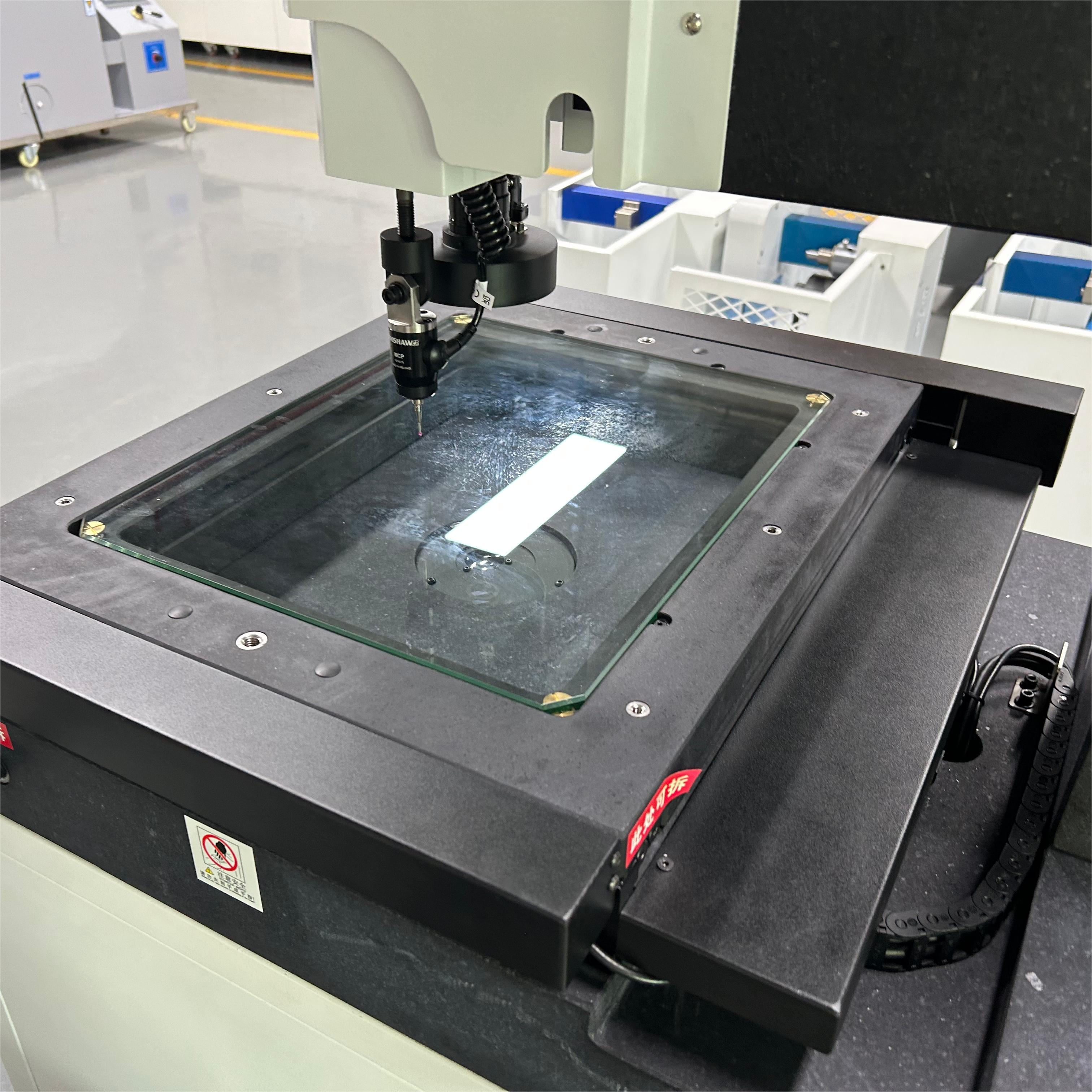

2. Instruments by color CCD camera, zoom objective and ShiZiXian generator as measuring aiming system,

3. Grating feet and DC - 3000 electricity box composition digital measurement and data processing system,

4. The instrument has a variety of data processing, display, input and output functions, especially the workpiece adjust function very practical, Users can according to their respective needs optional printer and different measuring aiming system.

Main Fuction:

☆ elements: multi-point measurement points, line, arc, circle, elliptic, provisions Angle, rectangular, automatic recognition points measuring point, line, circle, arc.

☆ element structure: center construction, construction, midpoint tectonic intersection, line structure, round structure, Angle structures.

☆ element preset: point, line, circle, arc.

☆ graphics: coordinates pan, workpiece pendulum.

☆ any axis pendulum, coordinate is reset.

☆ graphics amplifier, graphics narrowing, graphics pan, graphics print graphics selected, cancel selected, graphics deleted.

☆ Settings amplifier, graphics narrowing, graphics print circular selected, cancel selected, graphics deleted.

☆ Settings image gray, saturation, contrast, image save as BMP format.

☆ variety of edge finder mode, computer automatic take points, automatic identification round, arc greatly improve mining point speed.

☆ image support S terminals input, Image size 640 * 480mm.

Software common features:

☆ multi-point points, line, arc, circle, elliptic, improve measurement accuracy.

☆ coordinate shift and coordinates betweent, measuring more convenient for improve measurement efficiency

☆ convenient element combination function, the user can simply click graphics can be combined from point, line, circle, distance, Angle.

☆ macros instructions, the same kind of workpiece batch measurement, proposes more convenient for high measurement efficiency.

☆ measurement data delivered direct to AutoCAD DXF, measuring graphics can documentation.

☆ measurement data can be sent to Excel, statistical analysis, can draw a simple Xbar - S control charts, ask out Ca, etc. Various parameters.

☆ multi-lingual interface switching.

☆ records user program, editing instructions, teach execution. This instrument is applicable to two coordinates measuring for the purpose of all fields of application, machinery, electronics, instruments, plastic etc widely used. Instrument has a variety of data processing, display, input and output functions, especially the workpiece adjust function very practical, Instrument equipped with RS - 232 interface, after connect with computer, using special measuring software M2D of surveying and mapping graphics processing and output. Users can according to their respective needs optional printer and different measuring aiming system.
