- Product Details

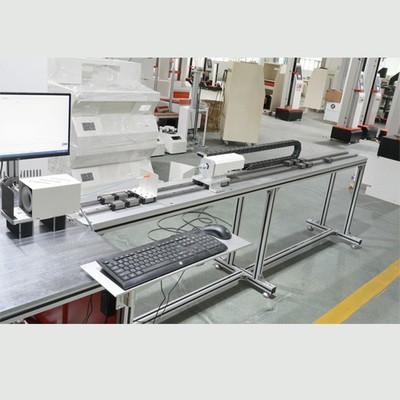

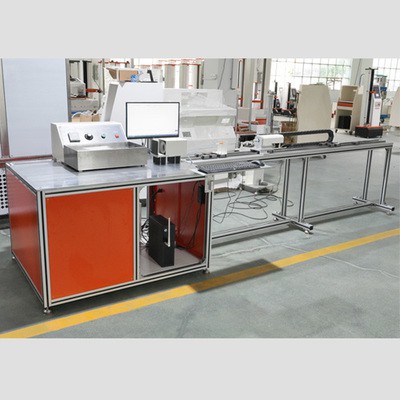

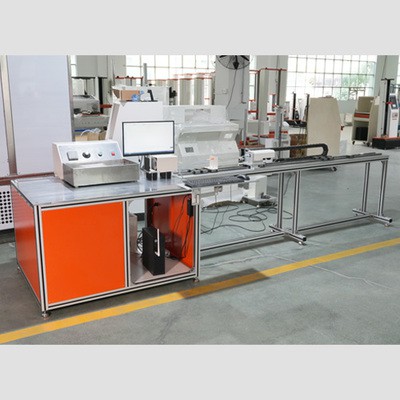

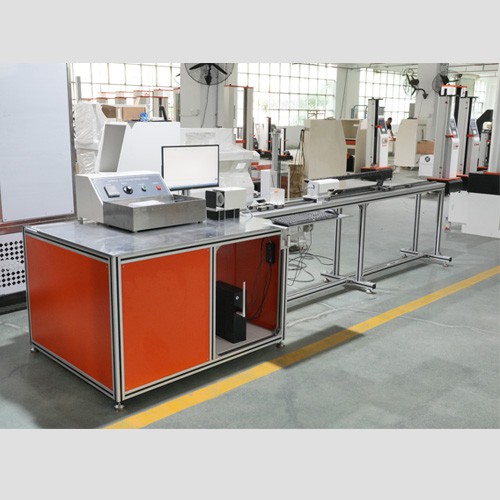

This equipment is developed and designed to meet the torque detection of standard specimens. It is mainly composed of mechanical parts, electrical control parts and software control systems. It has the functions of automatic data collection, storage, output and printing, and is easy to operate.
Equipment use:
This equipment is developed and designed to meet the torque detection of standard specimens. It is mainly composed of mechanical parts, electrical control parts and software control systems. It has the functions of automatic data collection, storage, output and printing, and is easy to operate.
Comply with the standard:
"GB/T16491-1996 Electronic universal testing machine"
Application industries:
Widely used in metrology and quality inspection; clothing and footwear; rubber and plastics; metallurgy and steel; machinery manufacturing; electronic appliances; automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instrumentation; medical equipment; civil nuclear energy; civil aviation; colleges and universities; scientific research laboratories; commodity inspection and arbitration, technical supervision departments; building materials and ceramics; petrochemical industry; other industries.
Technical parameters:
| Model | HZ-1018 |
| Maximum load | 100N, 200N, 500N, 1KN, 2KN, 5KN, optional |
| Torque range | 0-100 N·M |
| Accuracy level | 0.5 grade |
| Effective force measurement range | 0.2%～100% (0.5 grade) |
| Force measurement accuracy | Within ±0.5% of the indicated value |
| Test machine resolution | Maximum load 1/200000, no internal or external division, and the resolution remains unchanged throughout the process |
| Load sensor | Basic configuration: tension and compression sensors (maximum load), one static torque sensor Extended configuration: multiple sensors can be added |
| Deformation measurement system (optional according to requirements) | Extended configuration: Small deformation: gauge length 25mm, 50mm, 100mm Deformation range: 5mm, 10mm, 25mm |
| Effective test width | 390mm (can be widened according to customer requirements) |
| Effective stretching space | 400, 500, 600mm (can be increased according to customer requirements) |
| Test speed range | 0.001～500mm/min |
| Displacement measurement accuracy | Within ±0.5% of the indicated value/within ±0.2% of the indicated value |
