Equipment Overview:

Paper Core Crushing Test Machine Equipment is suitable for plastic industry polymer material mixing and processing such as, PVC, color master batch. Making the raw material and compound mixing, and achieve the required color and quality. The machine adopts special heated mold, roll surface temperature uniformity, never take off a layer, sample thickness can be mixed, the machine safety protection device, convenience to use.

Working Theory

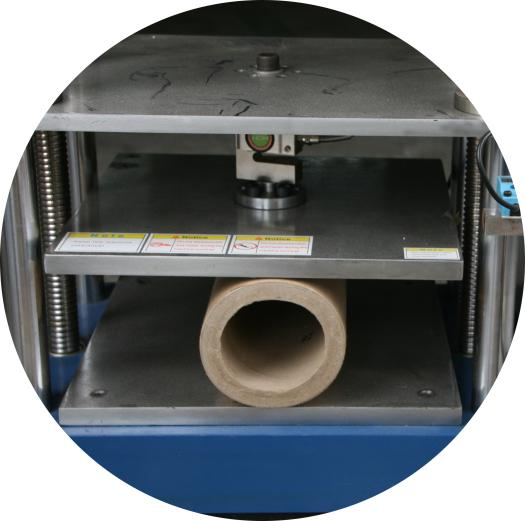

The machine uses a motor to drive the screw to achieve vertical movement. When testing, the paper tube is placed on the workbench. The motor drives the screw to move down and press on the paper tube. The load cell records the force change during the compression of the paper tube. Afterwards, the force change curve can be printed directly by the printer during the test.

Standardization

This machine is used to test tube, yarn tape, paper tins, synthesis of tins, horizontal compressive strength.

Application Industry

It is the ideal test auxiliary appliance for paper, packaging, scientific research, quality and other industries and department.

Test Standard

IBB/T 0032
ISO 11093-9
GB/T 22906.9GB/T 27591-2011

Operating Range

Ambient pressure                   75 to 110KPa (absolute)

Ambient temperature           10°C to 35°C

Operating humidity                0% to 95%, non-condensing

Mixing Capacity

Machine can support            200kg/500kg option；

Force

Induction                                 Force sensors

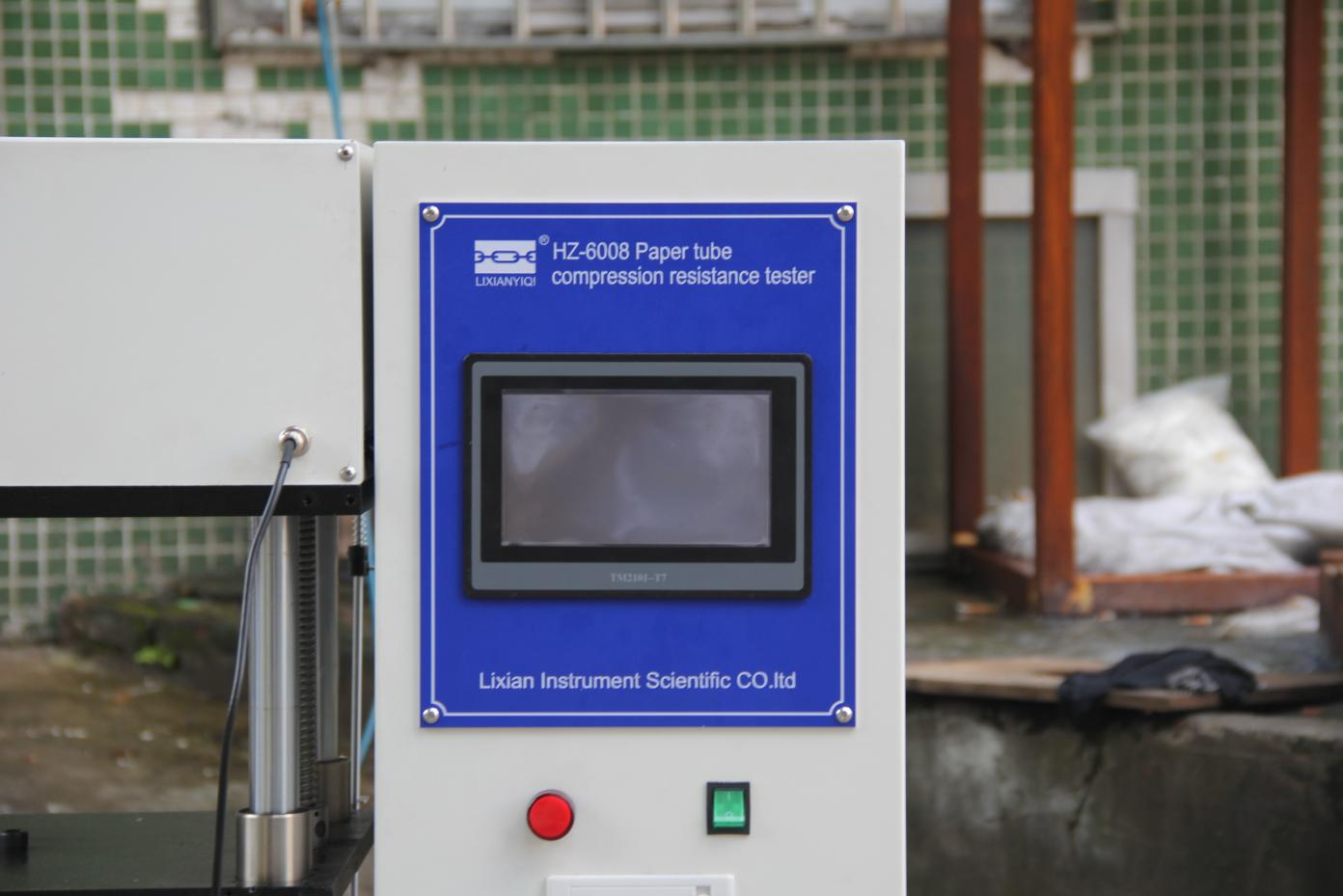

Displayer:                                 Touch screen；

Resolution                               1/50000

Accuracy                                 ± 0.5 %

Units switch                               Kgf, Lbf, N.( Optional)

Working Mode(Optional)

1) Testing speed                   10-500mm/min

2) The pressure plate area        300mmx300mm

Baffle material

PTFE material                             Made of sharp type

Power Supplier

1∮，AC220V，10A

Safety Device

Multiple touch touch emergency stop, safe operation.

Technical paramete
