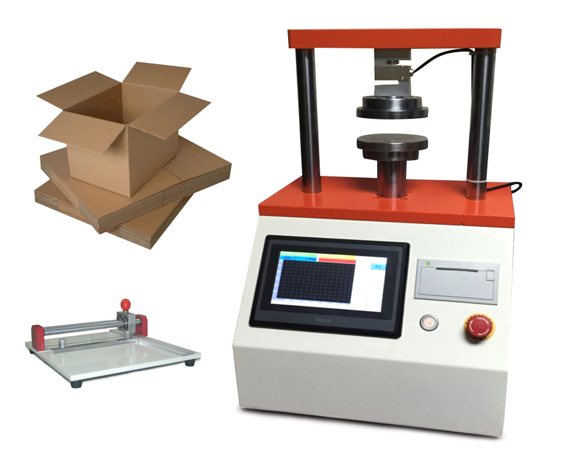

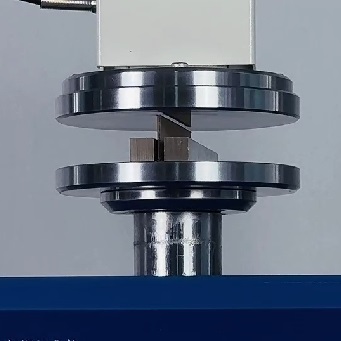

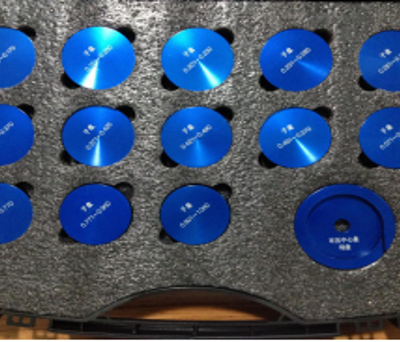

The Carton Edge Compression Strength Tester performs a variety of paper quality tests on packaging materials such as corrugated cardboard cartons, including five tests: ring compression (RCT), flat compression (FCT), edge compression (ECT), adhesion (PAT) and general compression resistance (CMT). It is a test device that combines multiple functions in one. Due to transportation needs, cartons will be stacked up, so the tolerance of weight load depends on the performance of the cardboard. This machine is equipped with various fixture accessories to test the ring compression strength of the base paper, the flat/edge compression strength of the cardboard, and the bonding strength, so that paper product manufacturers can control production costs and improve product quality.

Comply with standards:

CNS2956, JISP8126, TAPPIT472, TAPPIT 811, GB/T2679.6-1996, GB/T6548-1998

Technical parameters

Capacity: 0~20000N/M

Indication accuracy: ±1%

Resolution: 0.1N

Press plate: ￠100mm

Press plate spacing: 75mm

Test speed: 12.7mm/min

Geometric error: flatness <0.05mm; parallelism error less than 1/2000×B (B is the diameter of the circular press plate)

Volume: 500×270×520mm (W×D×H)
