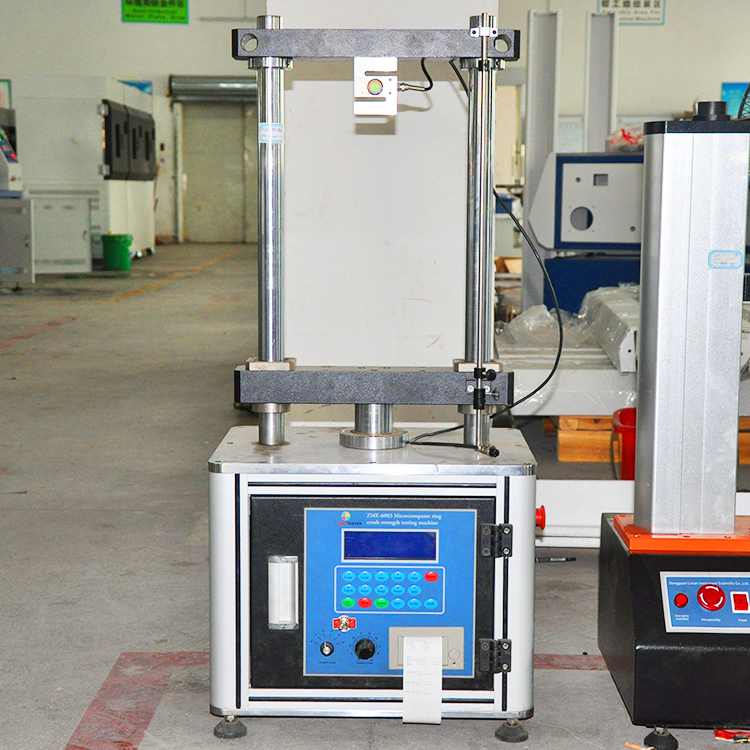

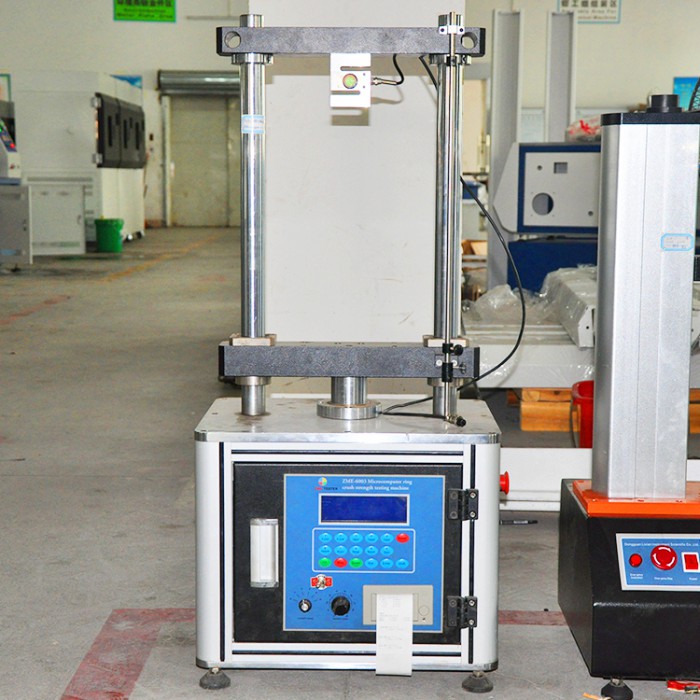

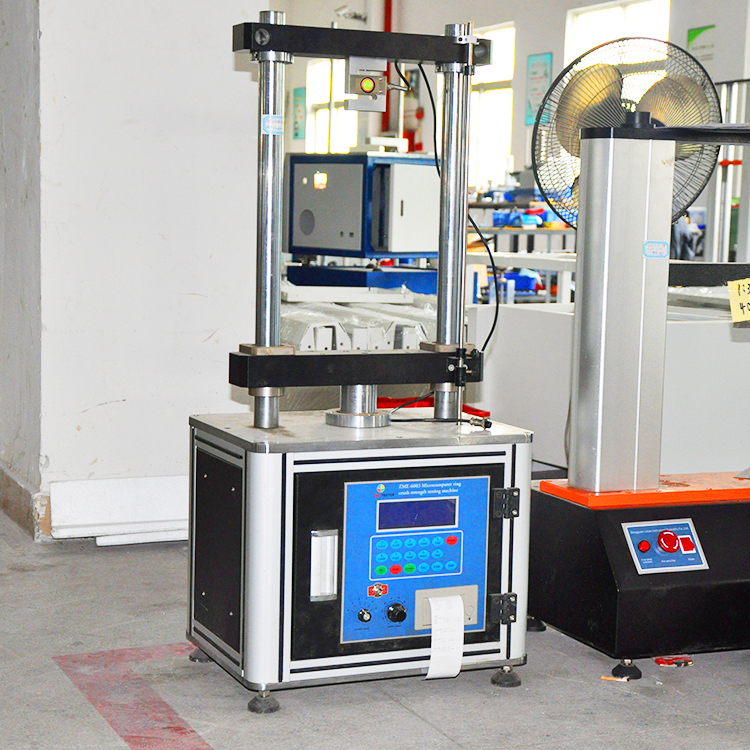

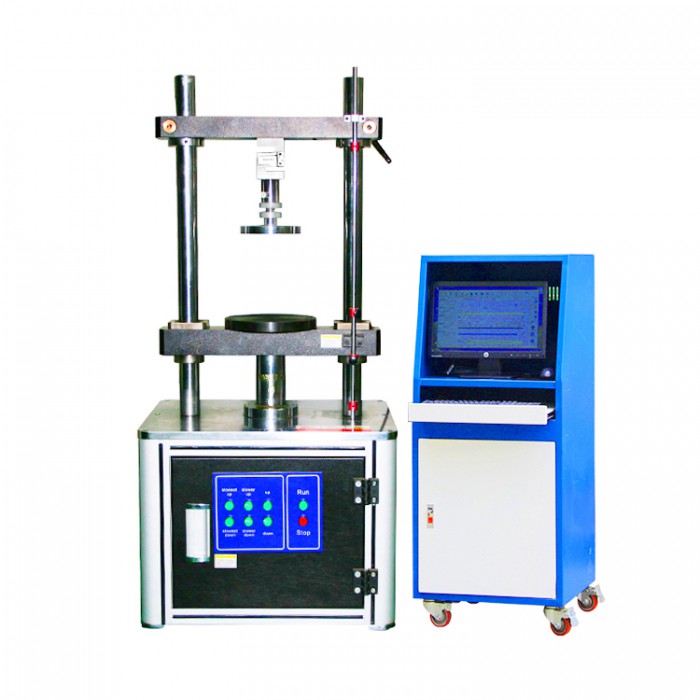

Packaging Ring Crush Strength Testing Machine The machine used to test the compression resistance degree of corrugated paper and kraft paper in upright direction at certain condition. This machine can also do flat crush strength test, compression resistance test,Sticky degrees test as well as other compression tests.This machine also equipped with advanced high precision load device and load displayer, thus the test load value can display and read directly.
Main functions:
The machine in order to test the quality of paper for a variety of paper can be Ring Crush Test (RCT), level pressure (FCT), while pressure (ECT), bonding (PAT) and the general compression (CMT) and many other tests the most direct equipment
Main features:
Ring Crush Strength Testing Machine uses microcomputer to control, double-column frame, sensor measuring system, stepless speed regulation.Its novel structure, digital processing and accurate, easy to use and easy to maintenance, Its the most economical ring compressive strength testing machine in the market at present.
.
Technical parameter:
Model | HZ-6003 |
Compression Speed | 12.7±3.0mm/min(Or by the customer separate and non-section speed) |
Constant Speed | 12.7,25.4，38.1，50.8，60mm/min |
Compression plate size | Φ130mm. |
Determination of the maximum pressure | 200kg(can make it according to the requirement) |

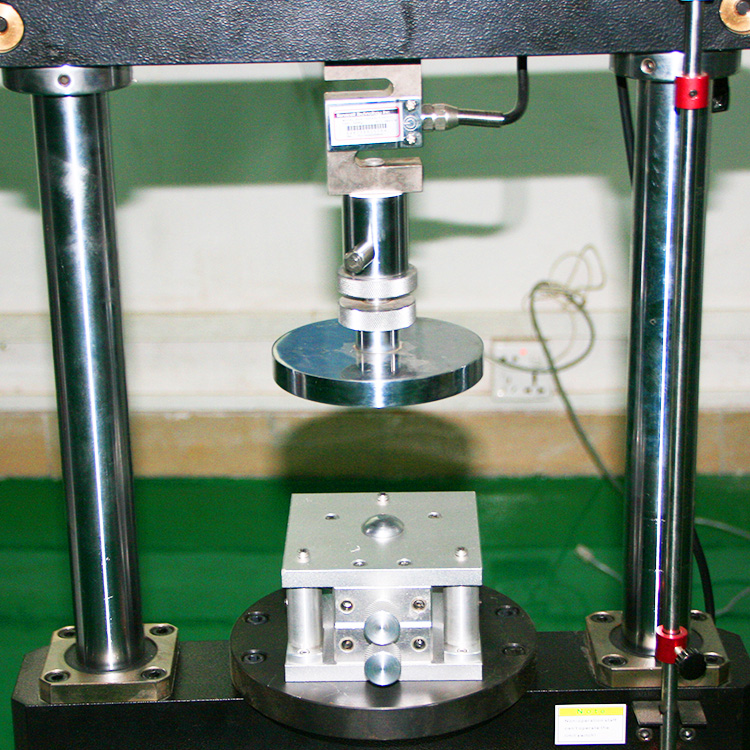

Ring Compression Testing Machine is equipped with an optional fixture into the test under the following | Ring Crush Test Center is equipped with disc and ring voltage dedicated sampler to carry out cardboard ring compression strength test (RCT) |
Equipped with side pressure (adhesive) and the secondary sample for lead blocks for compressive strength of corrugated board edge test (ECT) | |
Peel strength test frame is equipped to carry out corrugated board adhesion (peel) strength test (PAT) | |
Is equipped with platen specimen sampler to carry out compressive strength of corrugated board level test (FCT) | |
Standard | Ring Crush Test Fixture for a group. |
Power | 220V 50Hz |
Weight | 75kg |
Dimension | 480×480×600mm |
