Summary：

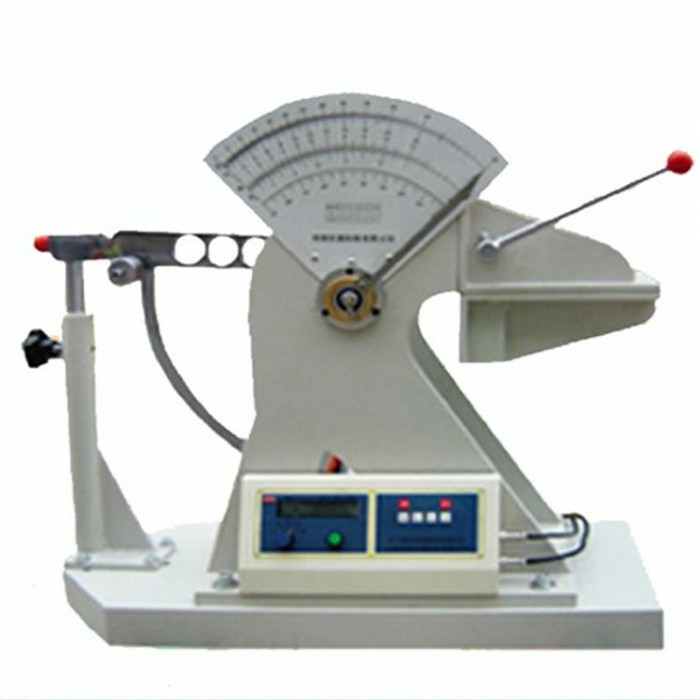

The corrugated cardboard puncture tester is a special instrument for measuring the puncture resistance (that is, puncture strength) of corrugated cardboard. This instrument has the characteristics of fast compression, automatic reset of the operating handle, reliable safety protection, and LCD display.
Main function：
This instrument is composed of a pendulum system sample holding device, a pointer dial pyramid (piercing head) operating system and other parts. According to the functional principle, the instrument installs a triangular prism pyramid designed and produced according to standard geometry on a pendulum with a special shape, and uses the energy of the pendulum to make the triangular pyramid penetrate the sample.
Main feature：
Ø Full electronic control technology, open structure, high automation program, simple and convenient operation, safe and reliable.
Ø Fully automatic measurement, intelligent judgment function, the operating system displays the measurement results in real time.
Ø Automatic measurement, statistical test results; easy to use;
Ø Modern design concept of mechatronics, compact structure, beautiful appearance and easy maintenance;
Standard：ISO3036、GB2679·7
Application industry:
It has a wide range of applications, and is an indispensable common instrument for enterprises and departments such as cardboard and carton production, scientific research and commodity inspection.
Technical parameters：
No. | Item | Index |
1 | Gear position | A file: 0~6J B file 6~12J C file 12~24J D file 24~48J |
2 | Accuracy | ≤±0.5% |
3 | Measuring range | (0~48)J |
4 | Resolution | 0.001J |
5 | Head pressure | 250~1000N |
6 | Friction and air resistance of the pendulum shaft | >120 times (measured by the swing times of the pendulum arm) |
7 | Pyramid characteristic size three base length | 60mm×60mm×60mm, height (25±0.7)mm, |
8 | Edge fillet radius | (1.5±0.1)mm |
9 | Man-machine interface | 3.2in 320*240 dot matrix LCD display, real-time display of each test result. |
10 | Print output | modular integrated thermal printer |
11 | Dimensions | 900*410*810mm |
12 | Working environment | temperature (20±10°C), humidity <85%, on a horizontal panel
|
13 | Weight | 50kg |
14 | Power | Single phase, 220V, 50Hz |
