Product Summary:

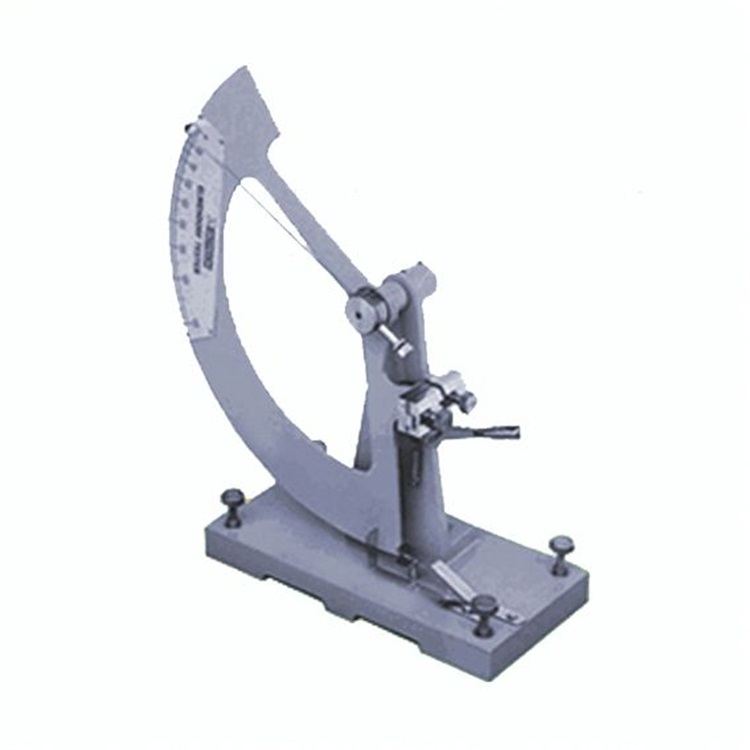

HZ-6011A Cardboard tear tester (pointer type) is the special instrument ,which used to the pendulum,
torn out samples, and tear strength. Instrument.
Meet Standards:
With the performance parameters of the ISO1974 paper -- tear the doorways of measurement (love
markov GB455 and law,the paper tore degree 1 determination of relevant provisions of such standards.
Applicable Industry:
HZ-6011A Cardboard tear tester (pointer type) is the ideal experiment instrument for the papermaking,
scientific research ,product quality supervision,inspection departments of industry and so on.
Techincal Parameter:
Model | HZ-6011A Cardboard tear tester (pointer type) |
Measurement range | (100~16000)mN |
Swing | (100~8000)mN,Indexing 100Mn |
Increase swing | (100~16000)mN,Indexing 200mN |
Error | Upper limited 20%~80% Within±1%;beyond±0.5%FS |
Error of repeatability | Upper limited 20%~80% Within≤1%;beyond≤0.5%FS |
Tearing arms | (104±1)mm |
Size of clip paper | (25×15)mm |
The distance between the paper clip | (2.8±0.3)mm |
Temperature | 20±10 Degree/temperature |
The initial angel of tearing | 27.5±0.5 |
Tear distance | (43±0.5)mm |
Notice | No vibration, no corrosive gas, the working environment clean. |
