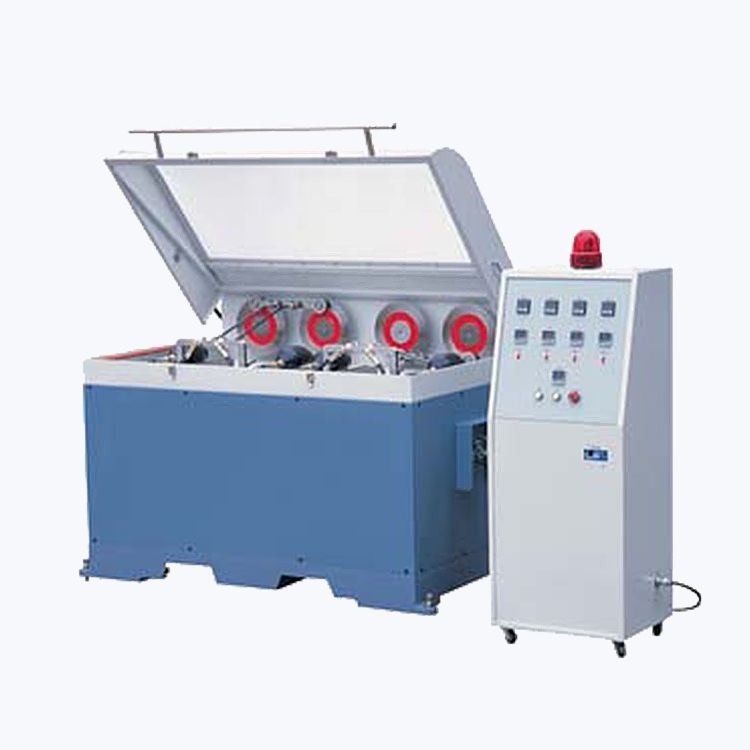

Brake hose flex fatigue testing machine Equipment HZ-7018
Brake hose flex fatigue testing machine Equipment HZ-7018, a deflection action for analog brake hose under high pressure to a certain frequency, the fatigue strength of the test. This test machine is suitable for motor vehicles (including motorcycles) and trailers use hydraulic,pneumatic, vacuum brake hose, brake hose fittings and brake hose assemblies
  • Tel:13711888650
  • Product Details

Product Description

Brake hose flex testing machine, a deflection action for analog brake hose under high pressure to a certain frequency, the fatigue strength of the test. This test machine is suitable for motor vehicles (including motorcycles) and trailers use hydraulic, pneumatic, vacuum brake hose, brake hose fittings and brake hose assemblies


Specification

Model Number
HZ-7018
Fixture
4 groups (Each test four groups)
Hose test load
1620 KPa
Deflection radius
100mm
Sample length
100~600mm (Adjustable)
Deflection speed
800 rpm
Motor
Three-phase AC motor
Hydraulic systems
Pressure growth system with automatic packing device
Water pressure
1620 kPa (16.5kg/cm2)
Timer
0~99,99h(Can be set)
