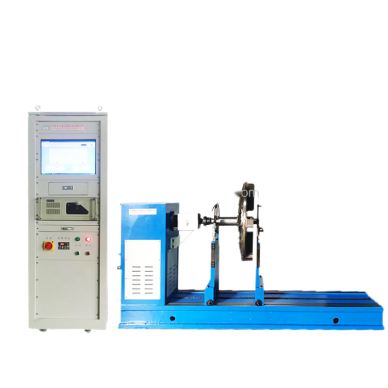

Universal Joint Drive Balancing Machine
Overview
The balancing machine is an instrument used to determine the unbalance of the rotor. The balancing machine is a hard-supported balancing machine. The swing frame is very rigid. The measurement result of the dynamic balancing machine is used to correct the unbalance of the rotor, so that the vibration generated when the rotor rotates or acts on the vibration on the bearing is reduced to the allowable range to achieve the purpose of reducing vibration, improving performance and improving product quality.
Range of Application

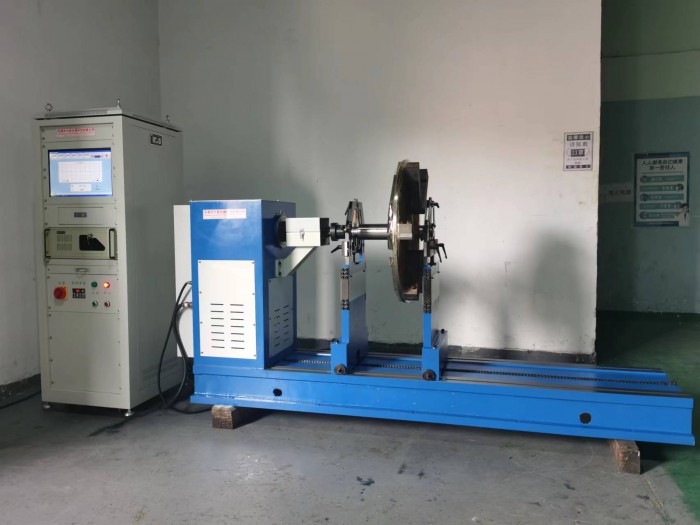

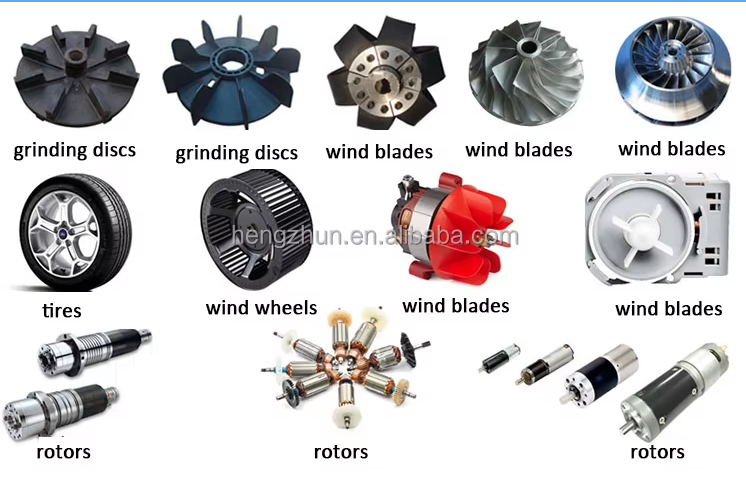

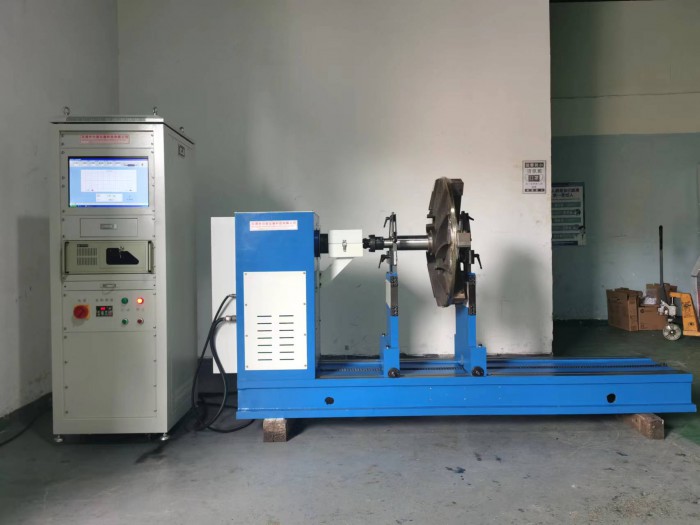

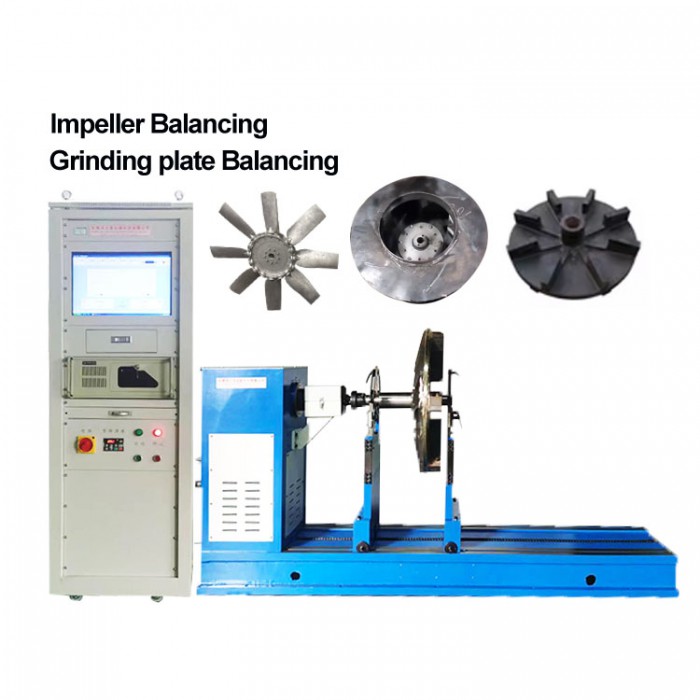

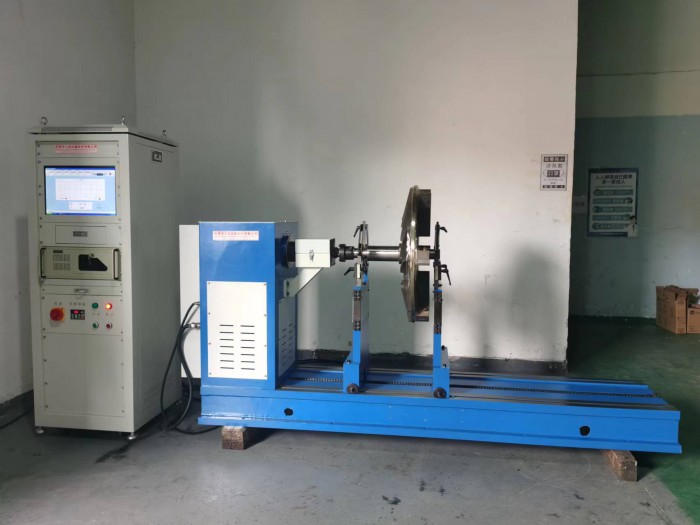

This balancing machine is widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency .
Technical Parameters

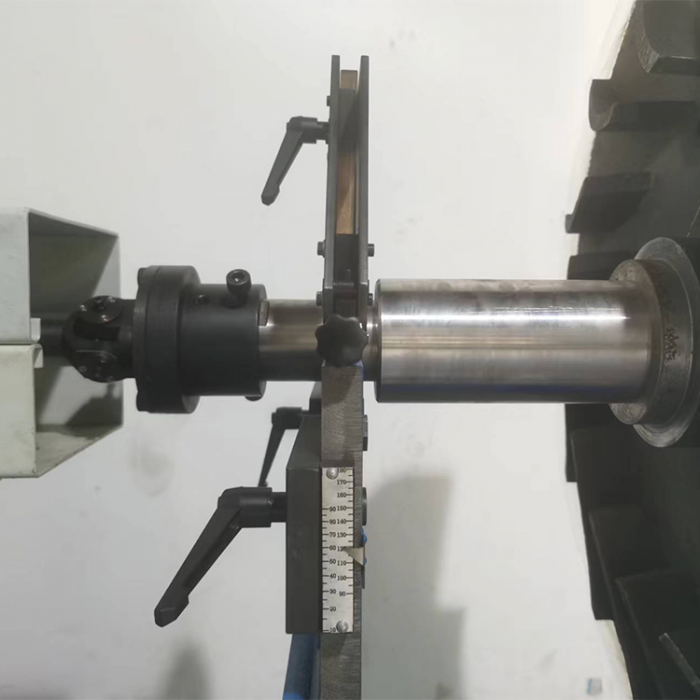

Model | HZ-9702A-160 | HZ-9702A-300 | HZ-9702A-500 |
Max Mass of Workpiece(kg) | 160 | 300 | 500 |
Max Diameter of Workpiece | Ø100mm | Ø350mm | Ø500mm |
Distance Between Two Support Bearings (mm) | 60 | ||
Maximum distance from drive shaft flange to right support center (mm) | 800 (machine length 1.5m) | ||
Roller bearing journal range(mm) | Ø10～ Ø140 （equip SKF bearing） | ||
Balance speed （r/min） | Frequency conversion stepless speed regulation | ||
Drive shaft torque（N.m） | 120 | ||
Motor Power (KW) | 1.5 (Inverter motor) | 3 (Invertermotor) | 3 (Invertermotor) |
The smallest achievable residual unbalance (g.mm/min) | emar≤0.5 | ||
Unbalance reduction rate (%) | URR≥95% | ||
Measuring system | Microcomputer digital electrical measurement system | ||
Note: The technical parameters of the above series of balancing machines are for reference only. The specific parameters and quotations need to be determined according to the actual situation of the rotor of the user's workpiece, and can also be customized. | |||
