Product summary:

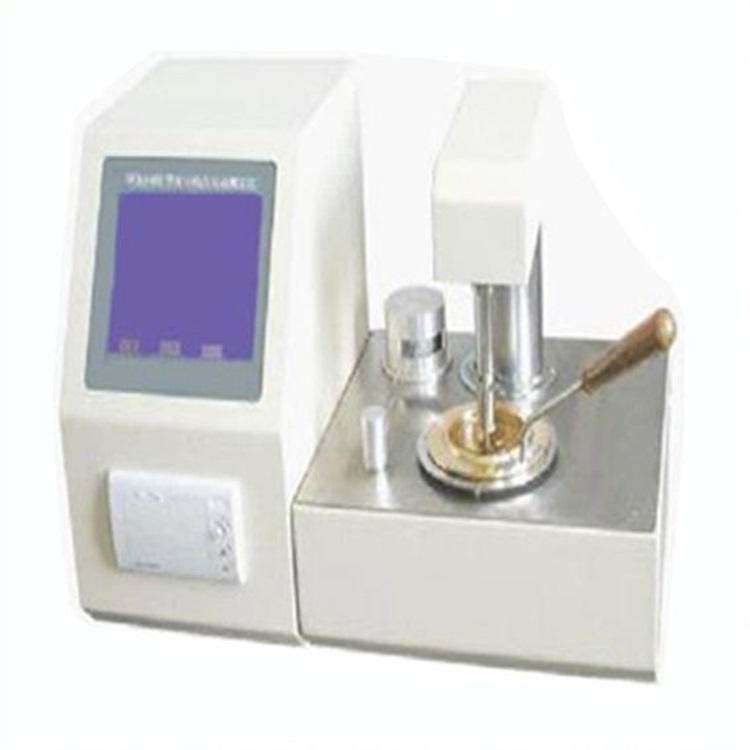

Open Cup Flash Point Automatic Tester is used to test the open cup flash point and fire point of petroleum products. The instrument adopts electric ignition and does not need any flammable gas. It is suitable to standards ASTMD92-IP 36、GB/T 267-1988. Adopting the latest technologies such as high-powered micro-processor, electric-erasing storage, high-precision A/D switcher, blue LCD monitor, anti-jamming auto self-restore and PID self-adjustment etc, the instrument has the following features
Technical Specification
| Testing scope : | 40--400℃ |
| Flash point testing : | Platinum Resistance |
| Fire point testing : | CRC Thermocoup |
| Accuracy : | Error ≤2℃ |
| Repetition capability : | Suitable to standards ASTMD92-IP 36 |
| Monitor : | Blue LCD monitor (320 x 240) |
| Storage : | 100 testing results |
| Mode of idignition : | Electric idignition |
| Interface: | Standard RS232 |
| Mode of cooling: | Compelling air |
| Printer: | Chinese characters, 40 lines |
| Self-inspection function: | Inspect the working status of testing head, testing rod, testing lid and fan. |
| Power: | 300VA |
| Power Supply: | AC240V Frequency: 50Hz |
| Environment Temperature: | 10℃--35℃ |
| Environment Humidity: | ≤90% |
| Weight: | About 17kg |
