- Product Details
Main function:

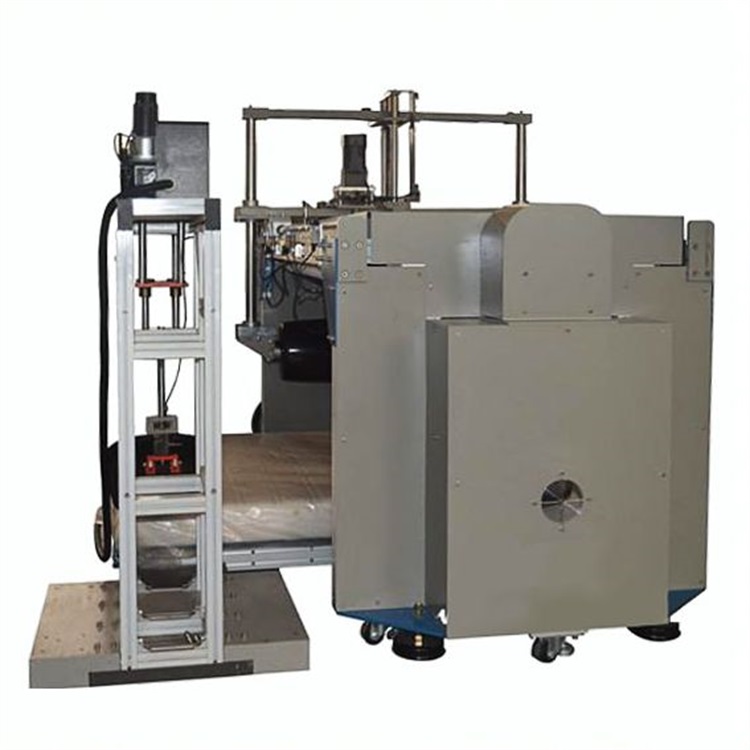

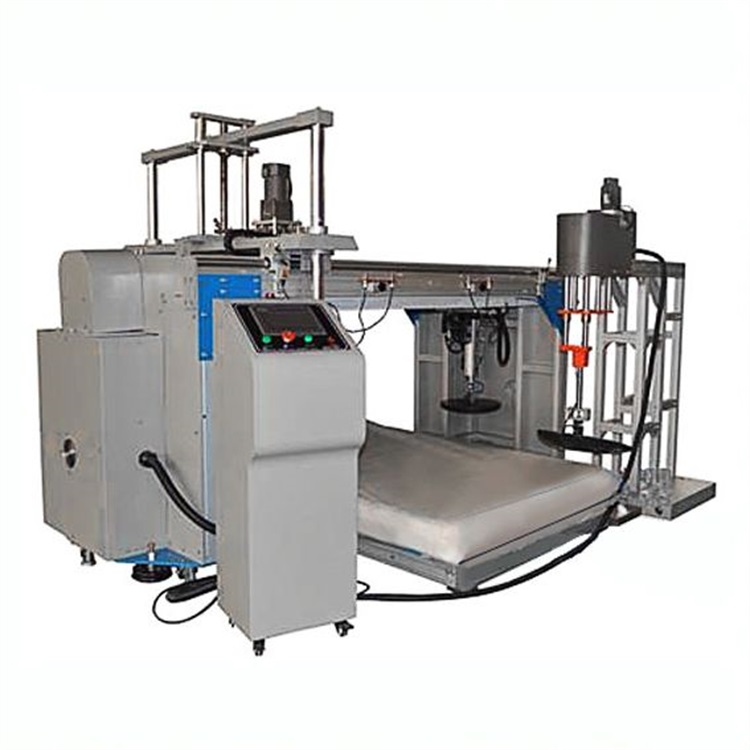

1.Use a horizontal scroll hexagonal wooden barrel or cylinder (diameter at both ends of 250 mm, the middle part of 300 mm), tested on a mattress rolling back and forth to simulate human motion to assess the durability of the mattress.
2.For the largest dimension of the mattress 2.2m * 2 m
Technical parameter:

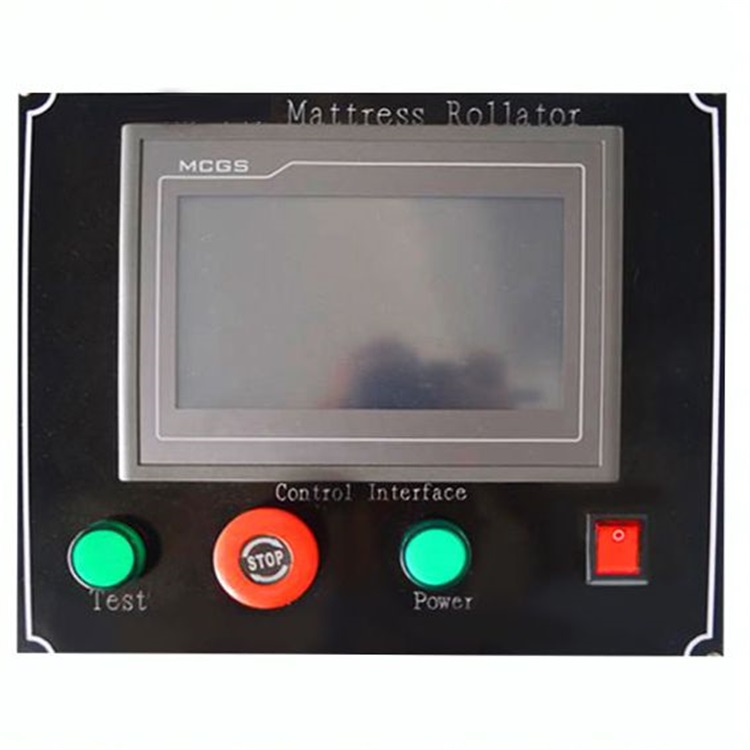

CNC controller | Mitsubishi PLC + color touch screen + data output function |
Hexagon roller length | 36±3in(915±75mm) |
Hexagon roller weight | 240±10Lb(109±4.5kg) |
Hexagon roller opposite distance | 17±1in(430±25mm) |
Circular cylinder length | 1000mm |
Circular cylinder weight | 1400N |
Circular cylinder diameter | 300mm |
Test stroke | ASTM 1566:.. Max mattress width, Min mattress width of 70% or 38in (965mm) whichever is smaller value BS EN 1957: mattresses around the middle of each 250mm GB / T 26706: Mattress 250mm each side midline QB / T 1952.2: 250mm each side mattress midline Test speed :0-20r / min |
Transmission | High precision servo system |
Height loss test | The high accuracy servo test system |
Edge of the mattress | A, Test times: 5000 B, Dwell time: 3 seconds C, Test force value: 1000N |
Power | 3∮,AC380V,5kW |
Standard:
ASTM F1566-2009, EN1957
