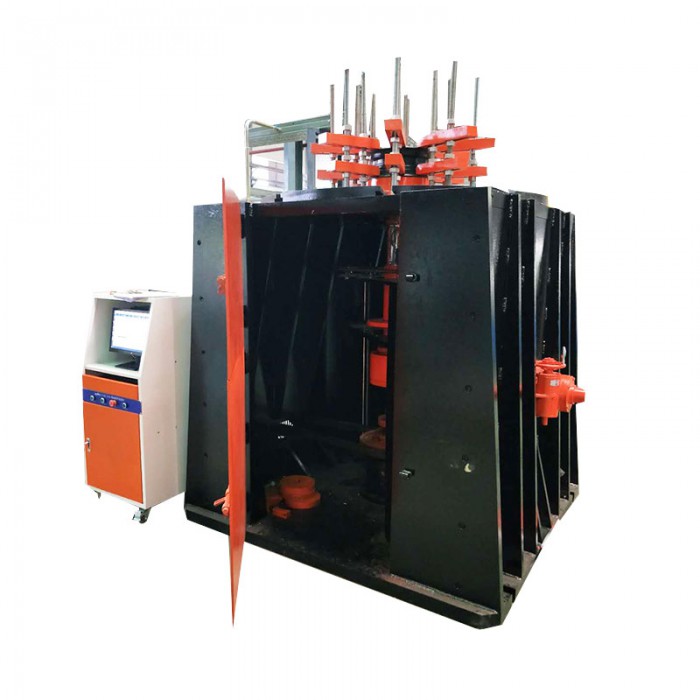

Wheel Bending Fatigue Test Machine HZ-1348
Standard of Wheel Bending Fatigue Test Machine HZ-1348: ISO3006-2015 Road vehicles SAE J328-2016 (R) Wheels GB/T 5334-2005 QC/T 221 JIS D 4230 - Automobile Tyres JWL Standard NBR 6752 : 2013 ALUMINIUM ALLOY WHEELS FOR PASSENGER CARS, LIGHT TRUCKS AND S
  • Tel:13711888650
  • Product Details

Standard of Wheel Bending Fatigue Test Machine HZ-1348:
  ISO 3006-2015 Road vehicles
  SAE J328-2016 (R) Wheels
  GB/T 5334-2005
  QC/T 221
  JIS D 4230 - Automobile Tyres
  JWL Standard
  NBR 6752 : 2013 ALUMINIUM ALLOY WHEELS FOR PASSENGER CARS, LIGHT TRUCKS AND SUVS

Technical Parameter:
Structure: Wheel rotates under the influence of a stationary bending moment.
Rated power: 20 kW
Wheel diameter: 12″~26″,
Wheel width: 4″~12″
Bending moment: 1~10kN.m, accuracy: ±1%
Rotation speed: 300~600rpm, accuracy: ±1%
Speed regulation mode: DC stepless drive
Load displacement: 0~+30mm, accuracy: ±0.05mm
Load mode: Precise ball-screw in closed-loop control
Dimensions: Approx.L2200mm×W2250mm×H1700mm
Total weight: max.3.5t
