Equipment Description:

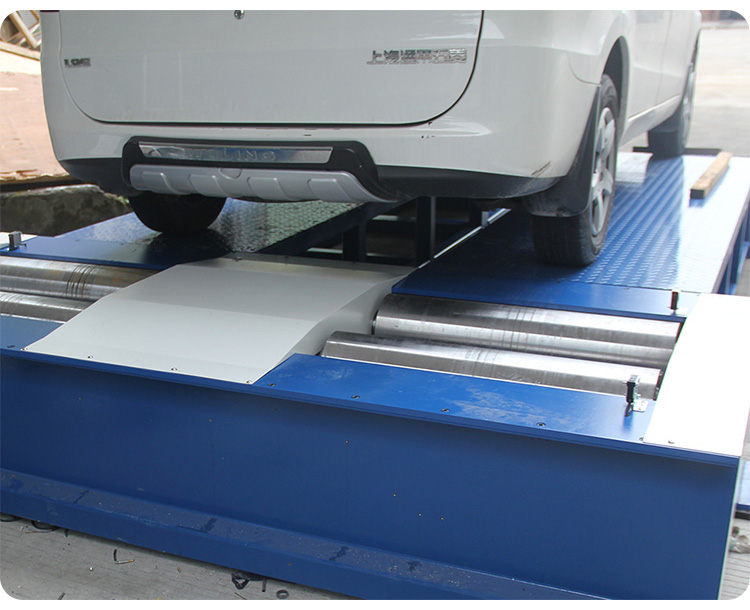

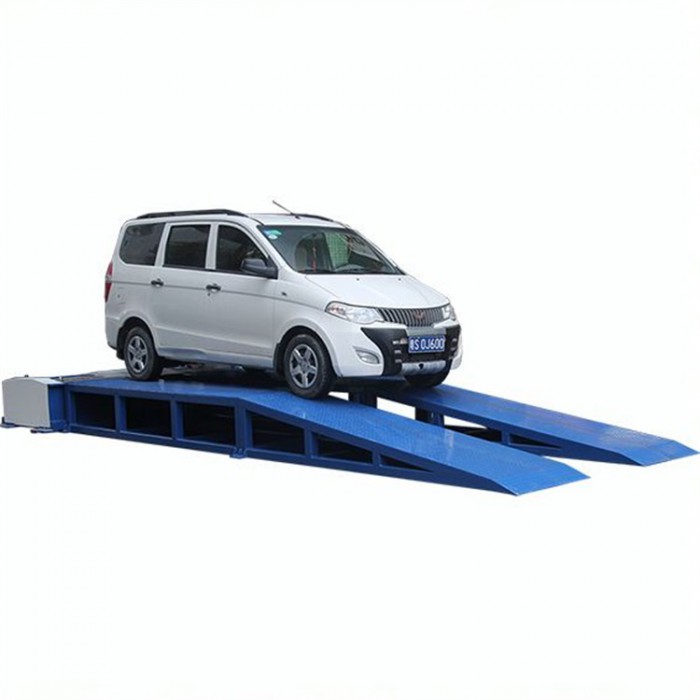

Vehicle Speedometer Tester HZ-1301 is dedicated to simulate the actual operation of state vehicles, measuring school inspection speed / odometer, and taxi meter accuracy of the device. The device uses a dedicated speed sensor, reasonable structure, strong mechanical parts, roller through the high-precision dynamic balancing test. Measurement data over a digital display, meter can display speed and distance, and operate with remote control switches, instrument with a serial communication interface, to facilitate inspection station network. The device has an accurate measurement, easy operation, clear display, full-featured, and so on.
To meet the standard:
Car speedometer testing station in strict accordance with GB11798.1-2001 "Motor vehicle safety testing equipment, dual sliding-type sliding test rig test technology" requirements. The device has made the measurement of national technical control department certified.
Applicable industry:
It is the ideal test apparatus for the automobile manufacturers ,research,product supervision inspection industries and department.
Technical parameter:
Vehicle Speedometer Tester HZ-1301 is dedicated to simulate the actual operation of state vehicles, measuring school inspection speed / odometer, and taxi meter accuracy of the device. The device uses a dedicated speed sensor, reasonable structure, strong mechanical parts, roller through the high-precision dynamic balancing test. Measurement data over a digital display, meter can display speed and distance, and operate with remote control switches, instrument with a serial communication interface, to facilitate inspection station network. The device has an accurate measurement, easy operation, clear display, full-featured, and so on.
To meet the standard:
Car speedometer testing station in strict accordance with GB11798.1-2001 "Motor vehicle safety testing equipment, dual sliding-type sliding test rig test technology" requirements. The device has made the measurement of national technical control department certified.
Applicable industry:
It is the ideal test apparatus for the automobile manufacturers ,research,product supervision inspection industries and department.
Technical parameter:
| Model | HZ-1301 | |||
| The maximum allowable axle load | 10000kg(3000kg,13000kg) | |||
| Maximum allowable speed | 120km/h | |||
| Test-bed shape reference dimension | 3152mm*880mm*600mm | |||
| Drum size | ∮190mm、∮318mm | |||
| Roller spacing | 435mm ～ 470mm | |||
| Measurement error | ≤2% | |||
| Lifting mode | Cylinder or air bag | |||
| Rated conditions of use | Room temperature | Relative humidity | Power | Rated voltage |
| -20°C - 50°C | ≤85% | AC220V | -15% — +10% | |
