- Product Details

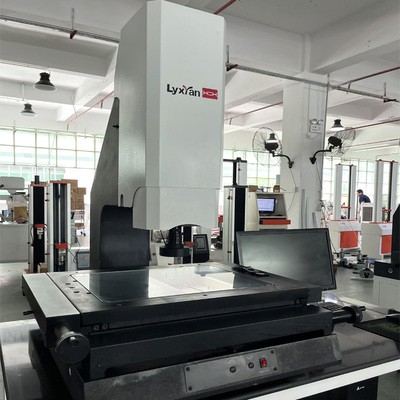

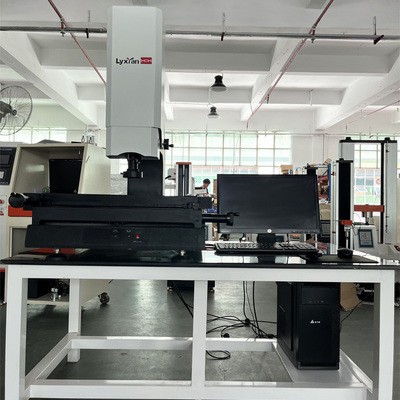

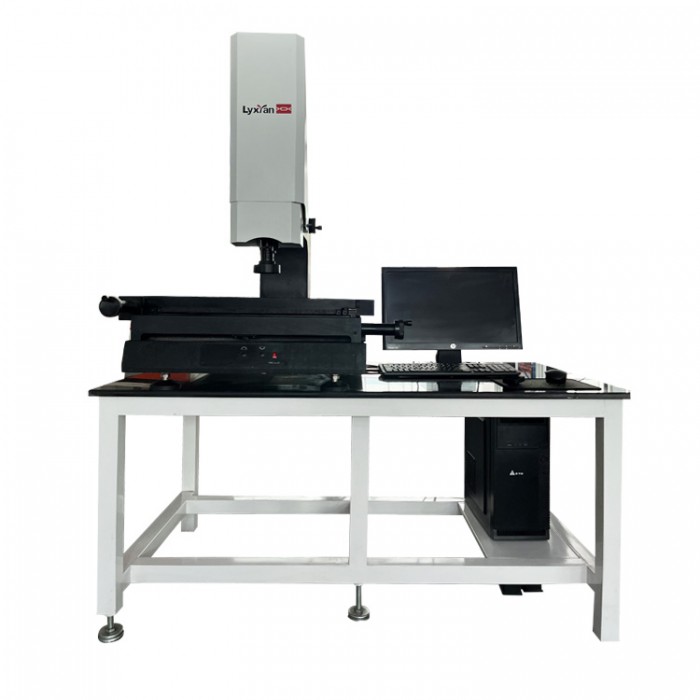

This measuring instrument can be applied to various: aerospace, automobile and shipbuilding, scientific research and teaching, electronic appliances, hardware and plastics, precision metal stamping plates, silk screen screens, acrylic plates, LCP films, PCB boards, LCD\TFT, glass cover plates, TP, ultra-large LCD display frames, die cutting, backlight modules, etc., and is suitable for measurement industries such as reverse engineering plane research and development, design, drawing editing, and experimental inspection laboratories.
| Technical parameters | ||
| 1 | Model | HZ-3501A |
| 2 | Material | Marble base, column, work surface |
| 3 | Main body dimensions | 750*670*980mm |
| 4 | Glass table size | 350*250mm |
| 5 | Actual effective range | X axis 300*Y axis 200 mm |
| 6 | Main body weight approx. | 260KG |
| 7 | Linear accuracy error | （3+L/200）um |
| 8 | Surface lighting | LED light source brightness adjustable |
| 9 | Contour lighting | LED light source brightness adjustable |
| 10 | Calculation measurement function | Force Display Measurement System Software |
| 11 | Resolution | 1um |
| 12 | CCD Camera | High Definition Color CCD |
| 13 | Eyepiece | 1X |

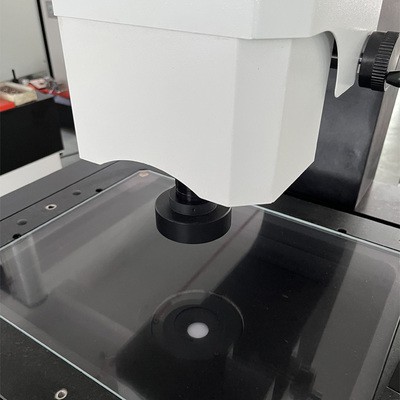

| 14 | Objective lens | 0.7X～4.5X (specific positioning variable magnification high-resolution optical lens) |
| 15 | Optical magnification | 30X～190X |
| 16 | Power Supply | Voltage AC 220V 50Hz |
| 17 | Temperature and humidity | Laboratory Standards |
| 18 | site | No high frequency, no vibration, no pollution, etc. |
