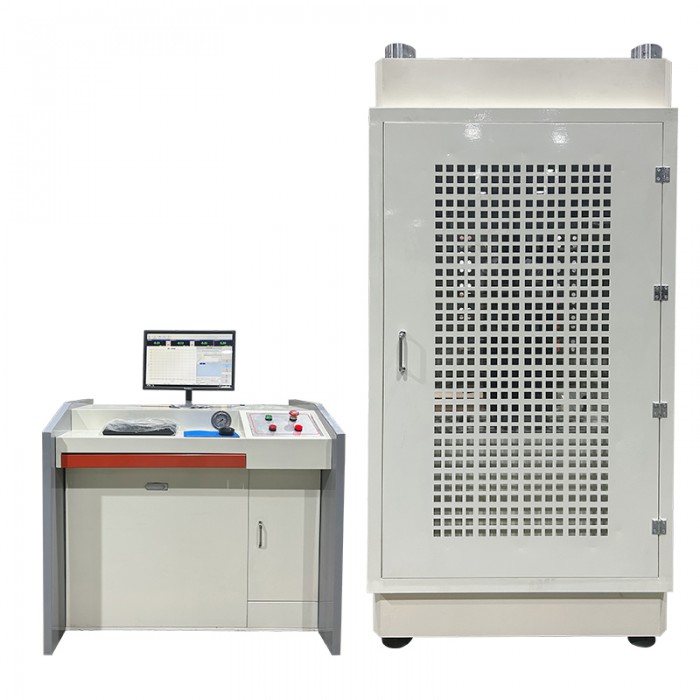

Computer Type Max Load 2000 kN Hydraulic Concrete Compression Strength Test Equipment HZ-022
Computer Type Max Load 2000 kN Hydraulic Concrete Compression Strength Test Equipment HZ-022 is developed and designed to meet the torque detection of standard specimens. It is mainly composed of mechanical parts, electrical control parts and software control systems. It has the functions of automatic data collection, storage, output and printing, and is easy to operate.
  • Tel：13711888650
  • Product Details
Computer Type Max Load 2000 kN Hydraulic Concrete Compression Strength Test Equipment HZ-022 adopts the bottom type, oil pressure loading, sensor force measurement, computer display of force value, computer adjustment of loading speed. It is easy to operate, stable in performance, safe and reliable. The Concrete Compression Strength Test Equipment consists of two independent parts, the main machine and the press, and the control system adopts advanced software.
Specification
Model Number
HZ-022
Test force measuring range
2%~100%FS
Max load
2000kN
Testing accuracy
Level 1
Testing force indication error
≤±1%
Displacement resolution
0.01mm
Workbench rising speed (mm/min)
1~50mm/min
Piston travel range
200mm
Testing machine effective width
650mm
Testing force resolution
1/500000
Power supply
380V
