ASTM E8 tensile strength tester 10ton Aluminum metal dumbbell sample Steel Tensile Testing Machine Equipment HZ-1009A

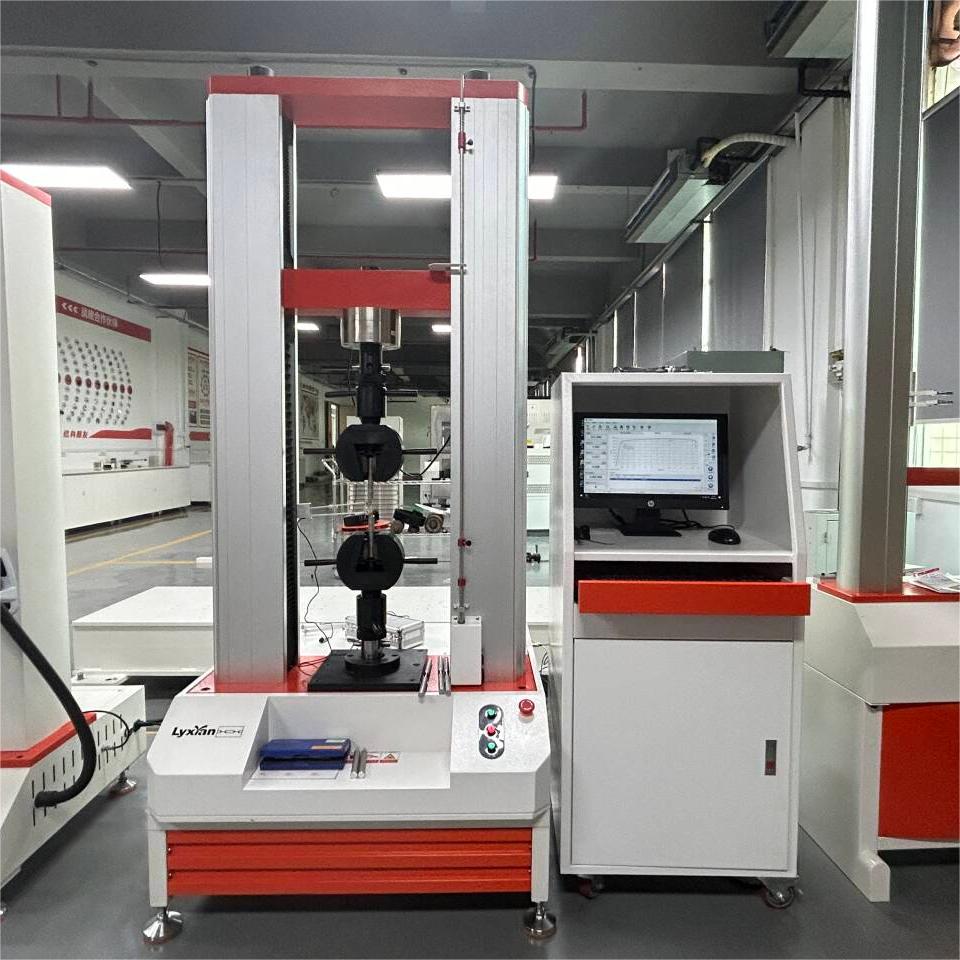

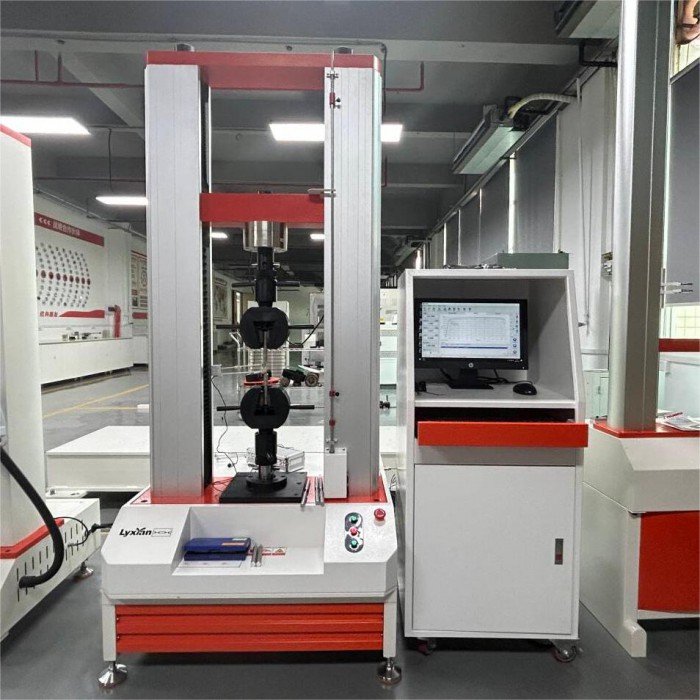

ASTM E8 tensile strength tester 10ton Aluminum metal dumbbell sample Steel Tensile Testing Machine Equipment HZ-1009A is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement.
  • Tel:13711888650
  • Product Details
Equipment Summary:
Aluminum metal dumbbell sample Tensile test machine is a new material testing machine that combined with the electronic technology and mechanical transmission. It has accurate load speed, range of force measurement, Has high accuracy and sensitivity forthe load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the Aluminum metal dumbbell sample materials which the load is less than 10ton.
Specification

Model Number
HZ-1009A
Certification
ISO/ASTM/CE
Maximum load
100 KN
Effective measuring range
Force from 0.2% to 100% (1 grade) / from 0.4% to 100% (0.5 grade)
Accuracy
0.5 grade
Measuring accuracy
the value ±1% / the value±0.5%
Tester resolution
Max load 1/200000, constant the resolution
Effective testing width
400mm (according to customers requirement )
Effective tensile space
400, 500, 600mm (according to customers requirement)
Testing speed
From 0.001 to 500mm/min
Delivery
in stock and prompt ship
