- Product Details
Main function:

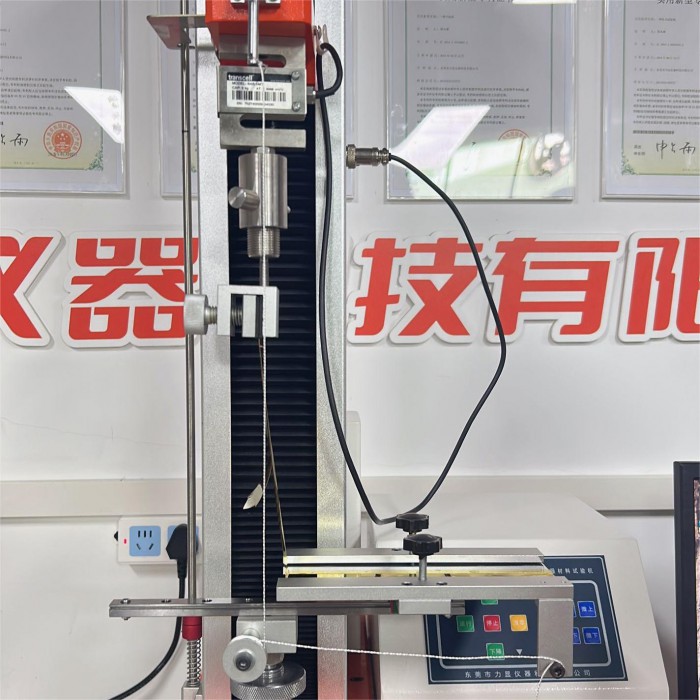

Peel Strip Strength of Adhesive tester HZ-1007E can be applied to test lots of materials in tension, compression, tear, peel (can 90 degrees and 180 degrees) and other mechanical test, such as rubber, tires, belt, shoes, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons, thread, spring, wood, medicine packaging materials, tapes etc.
Main features:
1. Adopt: Panasonic servo motor, the beam moves up and down to test the load through the transmission.
2. The whole control system is safe and high reliability.
3. Microcomputer control the whole testing process, real-time dynamic display the load values, displacement values, deformation,testing speed and testing curves.
4. Microcomputer for data processing and analysis, testing results can be saved automatically, testing curves can be transferred out after the test, you can know the testing process through the testing curves, or compare with others curves, or amplify the curves.
5. The testing software of the Window, with strong processed capabilities of data and graphics, it can immediate print out a complete testing report and testing curves.
6. Has limit protection, overload protection, emergency stop and other safe protective functions.
Applicable industry:
ASTM D903
Technical parameters:
| Model | HZ-1007E Peeling test machine |
| Maximum load | 50N, 100N, 200N, 500N, 1KN (optional ) |
| Accurate grade | 1 grade / 0.5 grade |
| Effective measuring range | Force from 0.2% to 100% / from 0.4% to 100% |
| Measuring accuracy | the value ±1% / the value ±0.5% |
| Tester resolution | Max load: 1/200000, constant the resolution |
| Load sensor | Basic configuration sensor max load: one |
| Effective tensile stoke | 500mm (accept customize) |
| Testing speed | From 0.001 to 500mm/min |
| Accuracy of displacement measurement | Tolerance: ±0.5% / tolerance: ±0.2% |
| Safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow (two speeds to control), can jog |
| Overload protection | Overload 10%, automatic protection |
| Fixture | A set of 90/180 degree peeling test clamp |
| Machine size | 35x40x100cm (L*W*H) |
| Motor | Taiwan Delta |
| Power supply | 220V , 50HZ or according to the requirement |
| Power | 0.4KW ( depending on the motor) |
| Weight | About 70KG |
| Unit | KG, N, LB, TON can be exchanged. |
