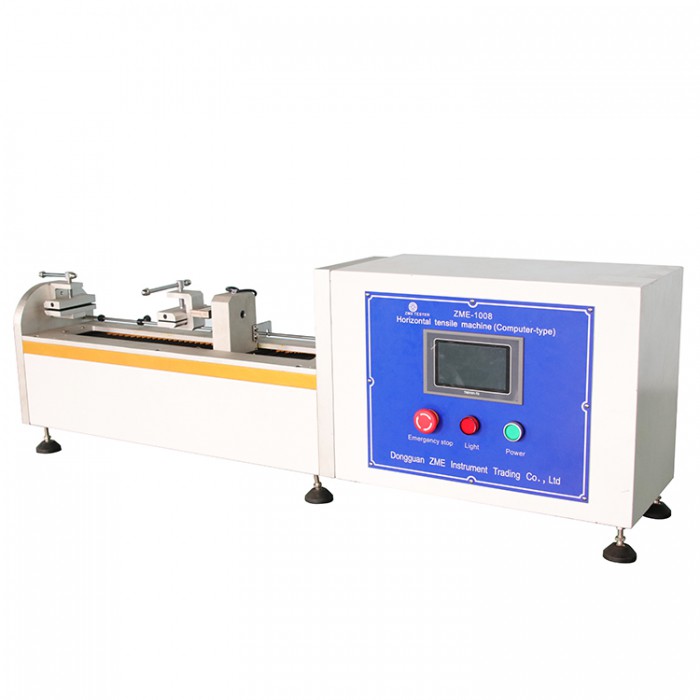

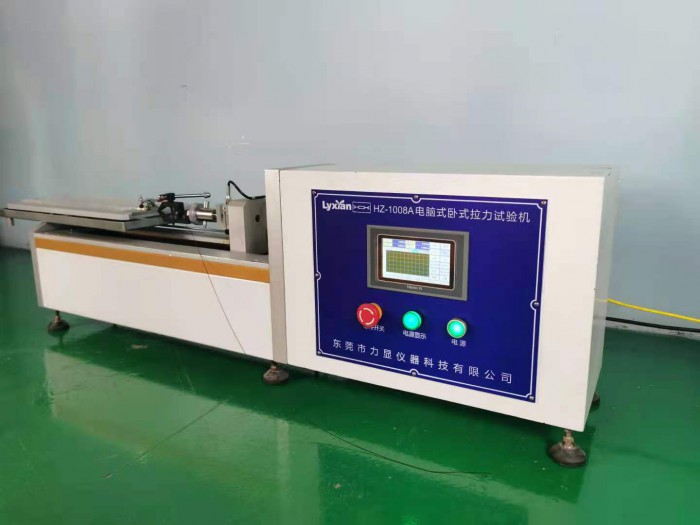

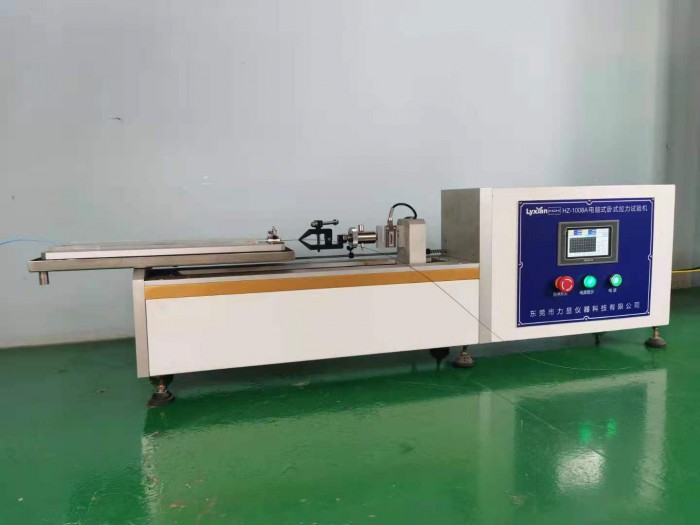

10kN Capacity Wire And Cable Horizontal Tensile Machine HZ-1008
10kN Capacity Wire And Cable Horizontal Tensile Machine HZ-1008 is used for tensile test of chain, wire rope, cable, electrical porcelain insulator and etc.
  • Tel:13711888650
  • Product Details

Horizontal tensile testing machine high precision load cell equipped with digital display, sensing material tensile strength testing machine, suitable for various industries to perform material tensile strength testing, such as: paper industry, rubber and plastic industry, wire, textile industry, latex industry, packaging industry, footwear industry, small hardware fastener industry and wire industry, building materials industry material raw materials or finished products industry physical strength testing, is to help the industry improve quality of tools.


Purpose of horizontal tensile testing machine:

High-precision load cell equipped with digital display, sensing material tensile strength testing machine, suitable for various industries to perform material tensile strength testing, such as: paper industry, rubber and plastic industry, wire, textile industry, latex industry, packaging industry, footwear industry, small hardware fastener industry and wire industry, building materials industry material raw materials or finished products industry physical strength testing, is a tool to help the industry improve quality.

Features of horizontal tensile testing machine:

High-precision load cell equipped with digital display, sensing material tensile strength testing machine

Applied industries:

Horizontal tensile testing machine is suitable for various industries to perform material tensile strength testing.


Universal Testing Machine Specification

Model NumberHZ-1008
PowerElectronic
Product nameHorizontal Testing Machine
Max. Force10kN
Accuracy1grade
Force range1% ~ 100% FS
Force accuracy±1% of reading
Force resolution1/±350,000 of max force
Force rate150mm/min
Displacement range0 ~ 600mm
Displacement accuracy±0.1mm
Piston Stroke1500mm
