Universal testing machine 0.5 Grade accurate ISO 2439 Foam hardness and fatigue Compression Testing equipment HZ-1003E

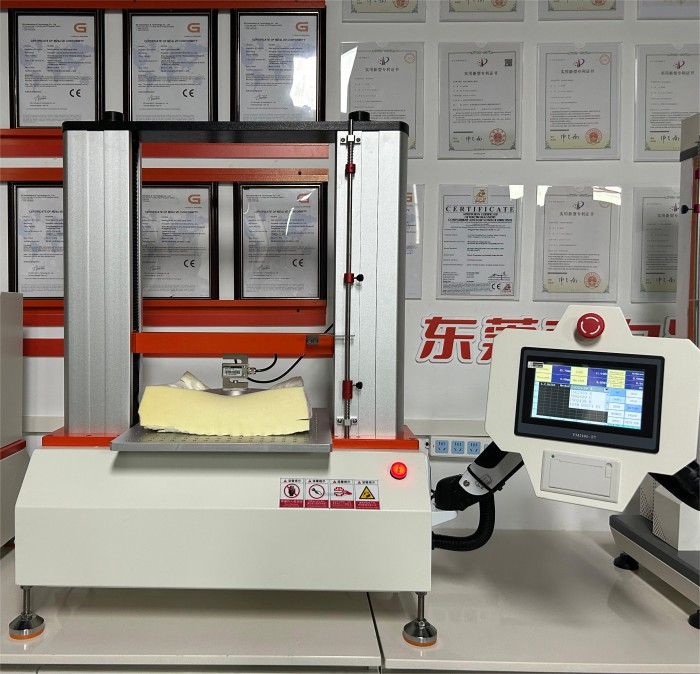

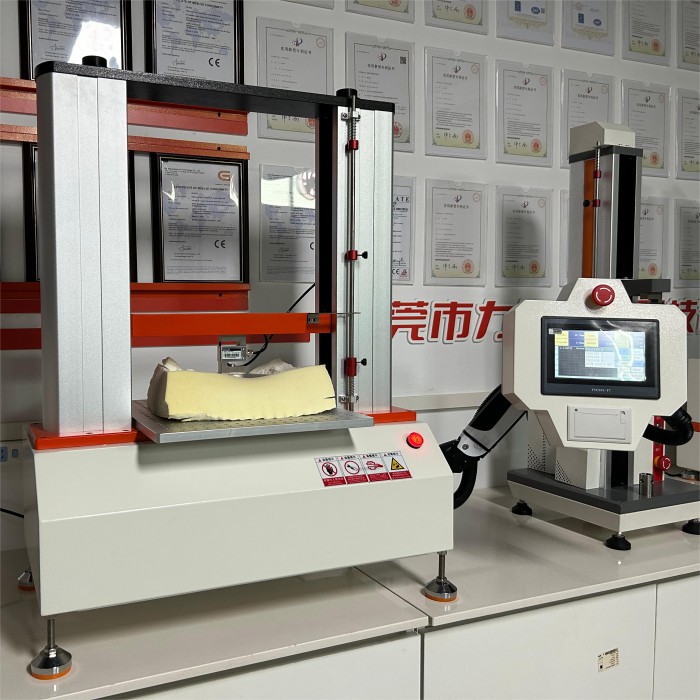

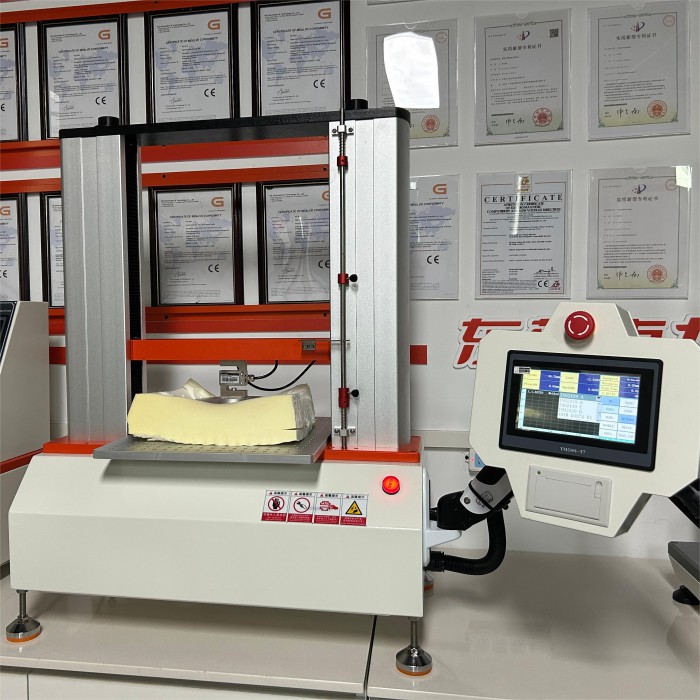

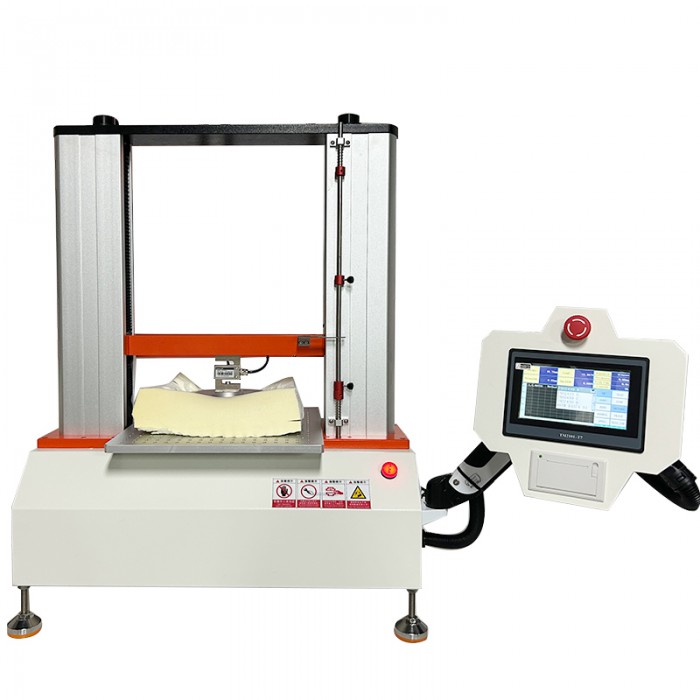

Dual Column Sponge Foam Compression Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control. Sponge Foam Compression Testing Machine is easy to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line.
  • Tel:13711888650
  • Product Details

Universal testing machine 0.5 Grade accurate ISO 2439 Foam hardness and fatigue Compression Testing equipment HZ-1003E is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control. Sponge Foam Compression Testing Machine is easy to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line. Sponge Foam Compression Testing Machine is mainly applied to test the Rubber pad resilience which the load is less than 5KN.
Specification
Model Number
HZ-1003E
Max Load
5 KN
Computer system
RealTest software control, Chinese and English
Measuring accuracy
0.5% (5% -100% of full scale)
Tester resolution
1/50000
Load sensor
Extended configuration:an add more sensors
Compression plate size
150*150mm
Effective tensile space
Approx. 500mm
Data sampling frequency
200times/sec
Safety device
overload, emergency stop
Power
750W; AC 220V single-phase

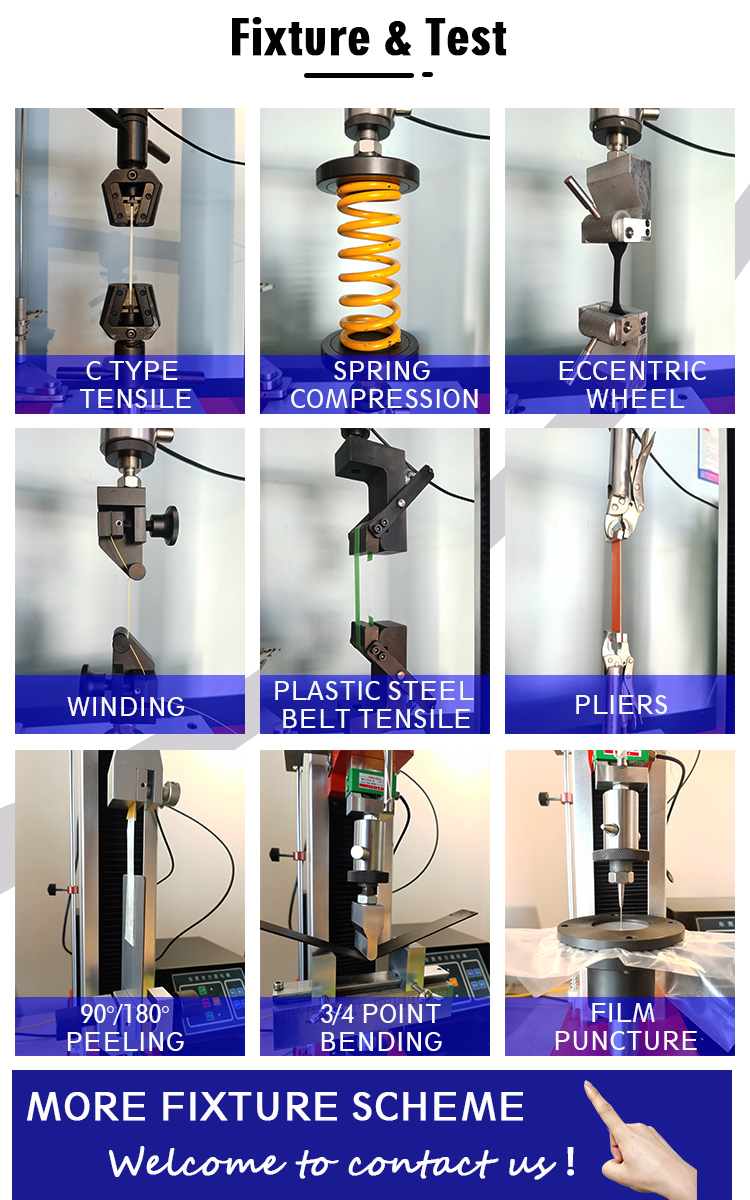

Fixture&Test
