Equipment summary:

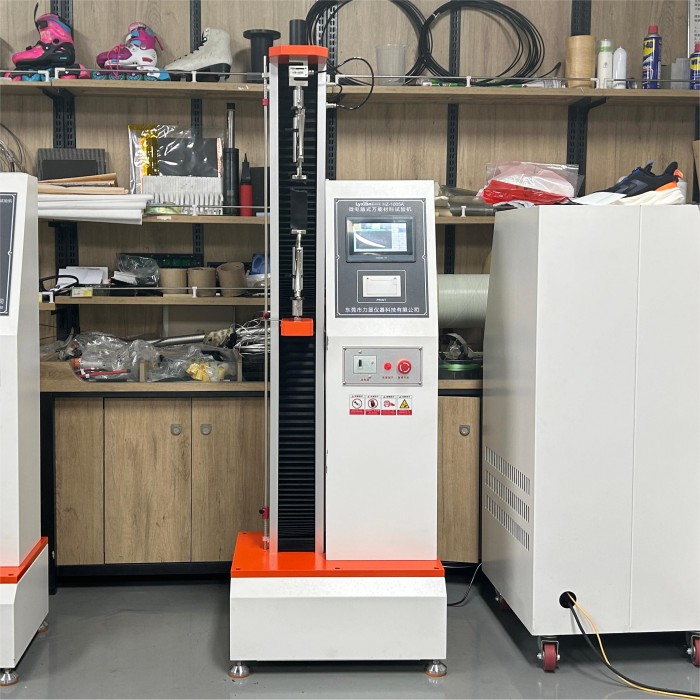

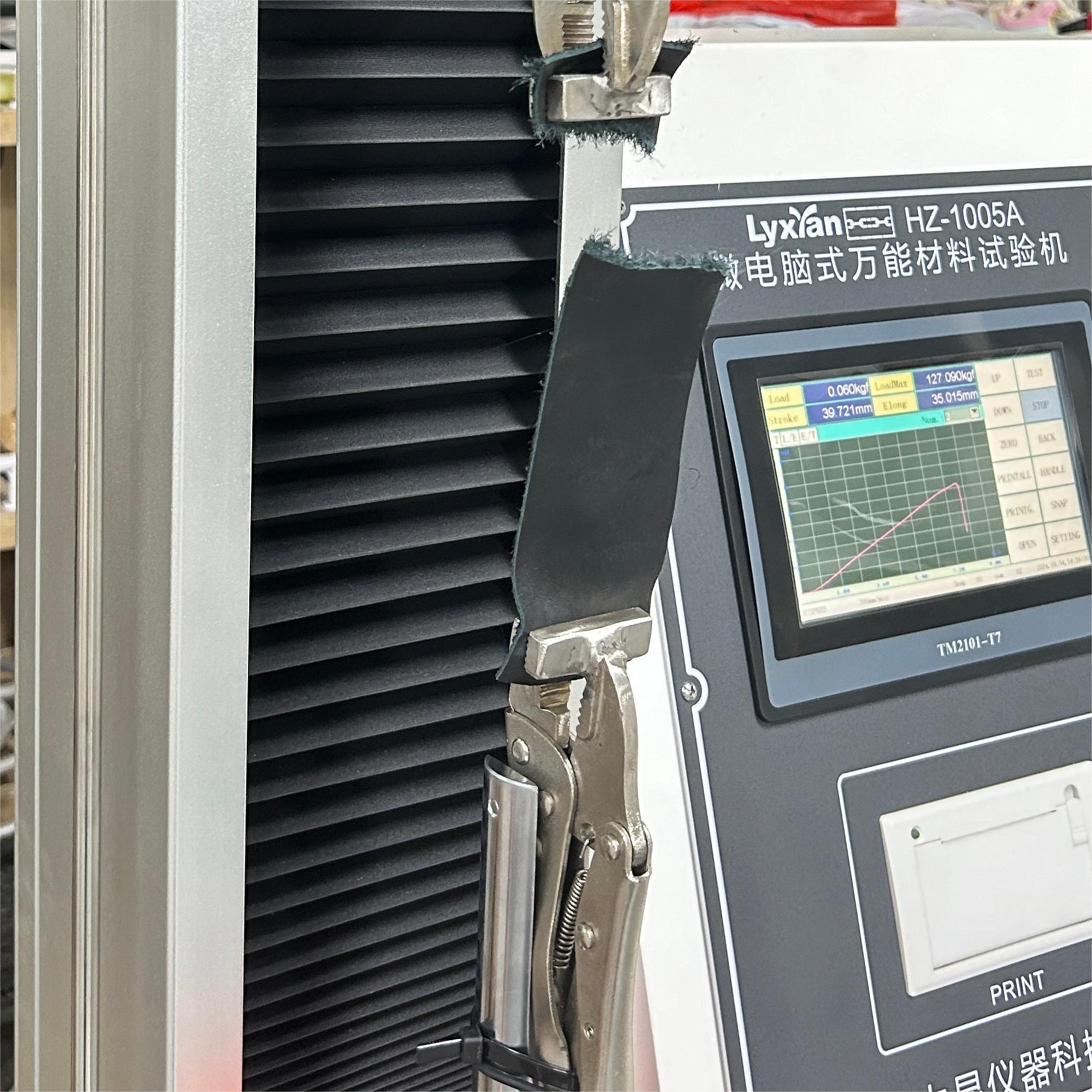

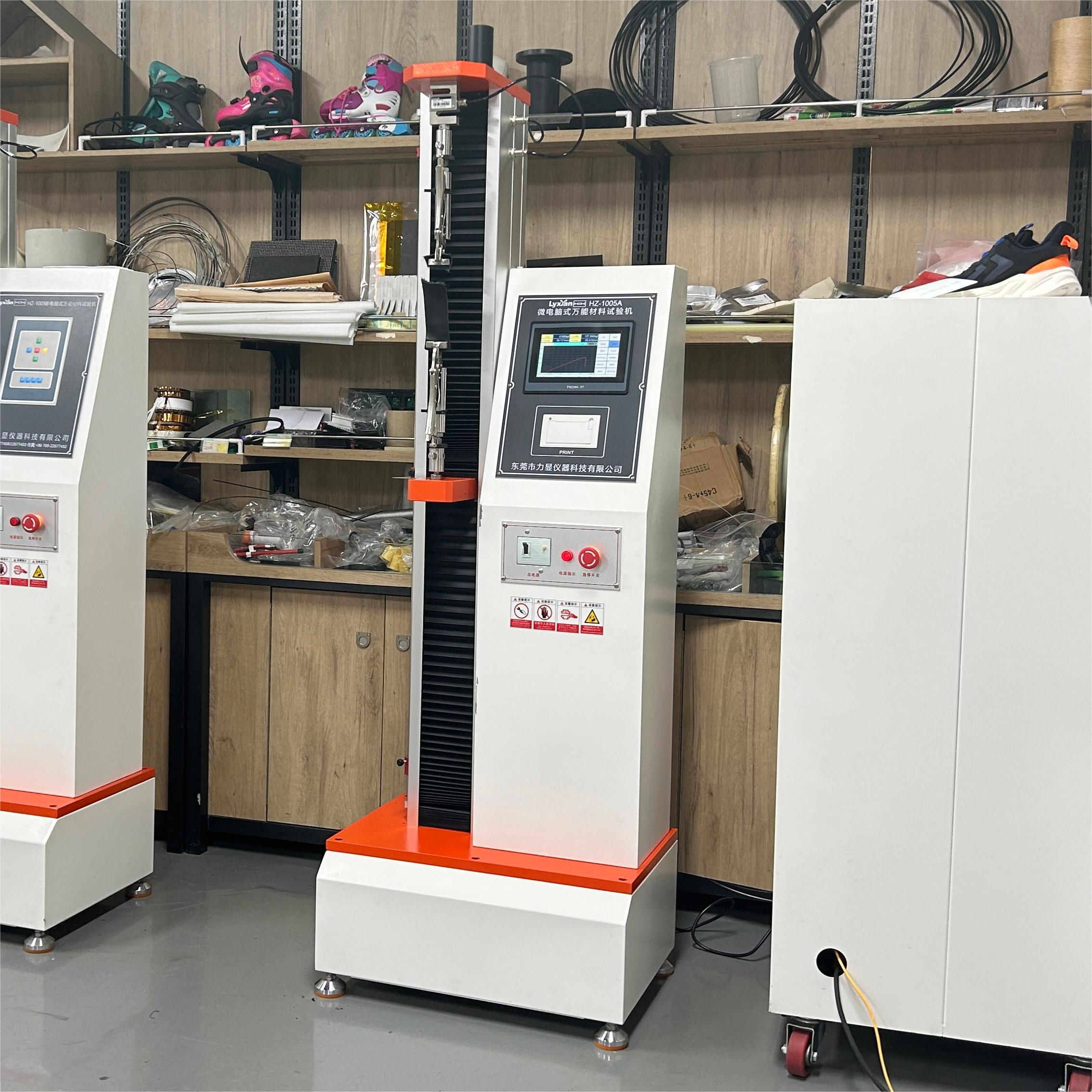

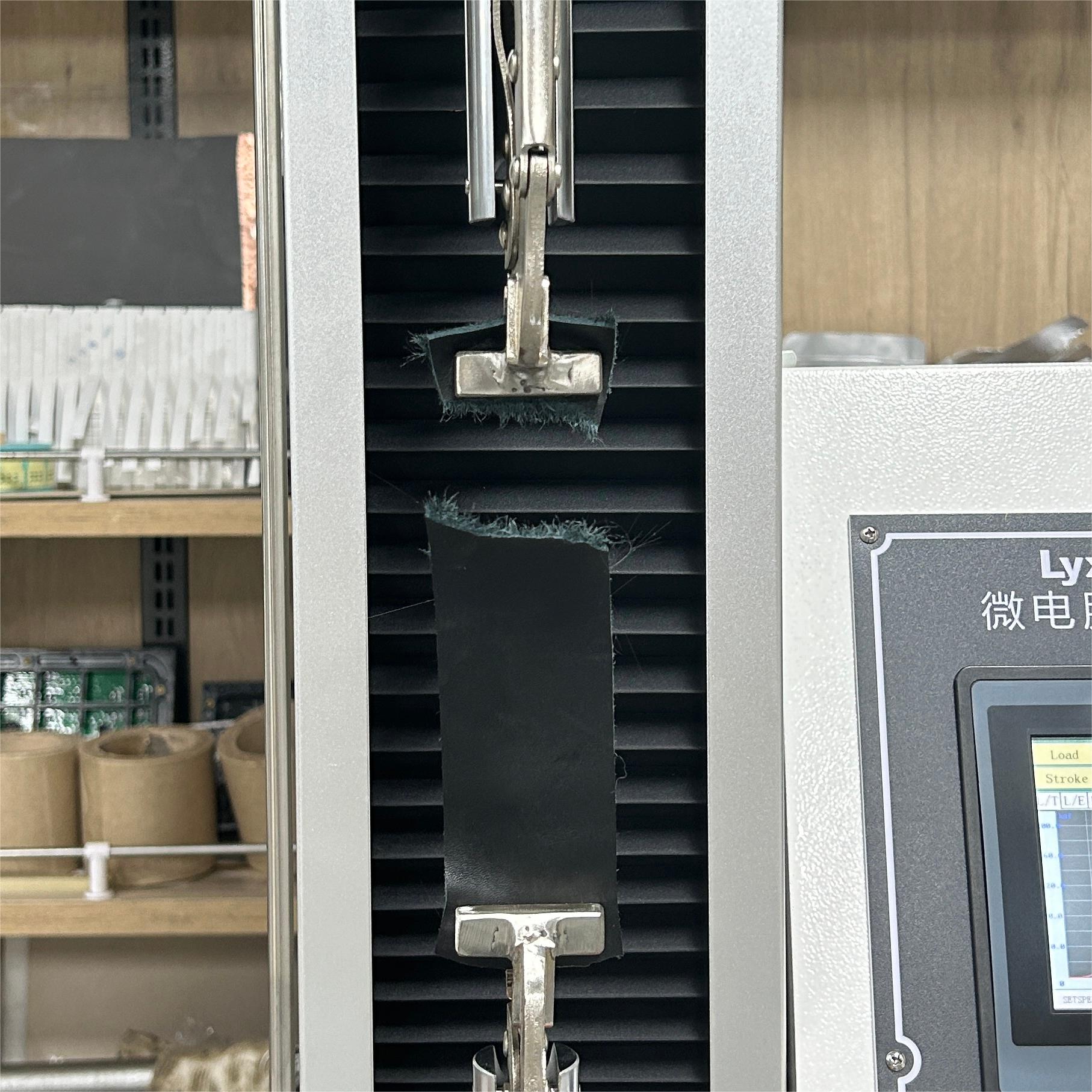

Electronic Customized Servo 5kn Universal Tensile Testing Machine Price ASTM D2209 Leather Tensile Test Equipment HZ-1005A is simple to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 5KN.Main functions:
Tensile Strength Testing Machine HZ-1005A can be test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add extensometer) and others for control products quality. Such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials.
Corresponding standard:
ASTM D2209.
Technical parameters:
| Model | HZ-1005A Tensile Strength Testing Machine |
| Capacity | 1KN, 2KN, 5KN option |
| Accuracy of load measurement | the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%) |
| Units | Kg, Lb, N, Ton (can be exchanged) |
| Resolution | 1 / 50000 |
| Displacement resolution | 0.001mm |
| Power system | AC motor, deceleration device (Italy brand) |
| Control system | testing speed 50~300 mm/min with step less speed and 5 fixed- speed (50, 100, 200, 250, 300) or the needs of customer |
| Data sampling frequency | 200 times/sec |
| Effective testing width | 120cm (can be customized) |
| Safety devices | overload, emergency stop devices, limited devices of displacement, leak current protection device |
| Power | 400W (depending on different demand of force using different motor) |
| Machine size | 45×55×140cm (length * width * height) |
| Weight | About 150KG |
| Power supply | AC 220V single-phase |
Machine has function of printing.
Can store 10 testing results and auto-calculate its average, auto-grab maximum force and the force at break.

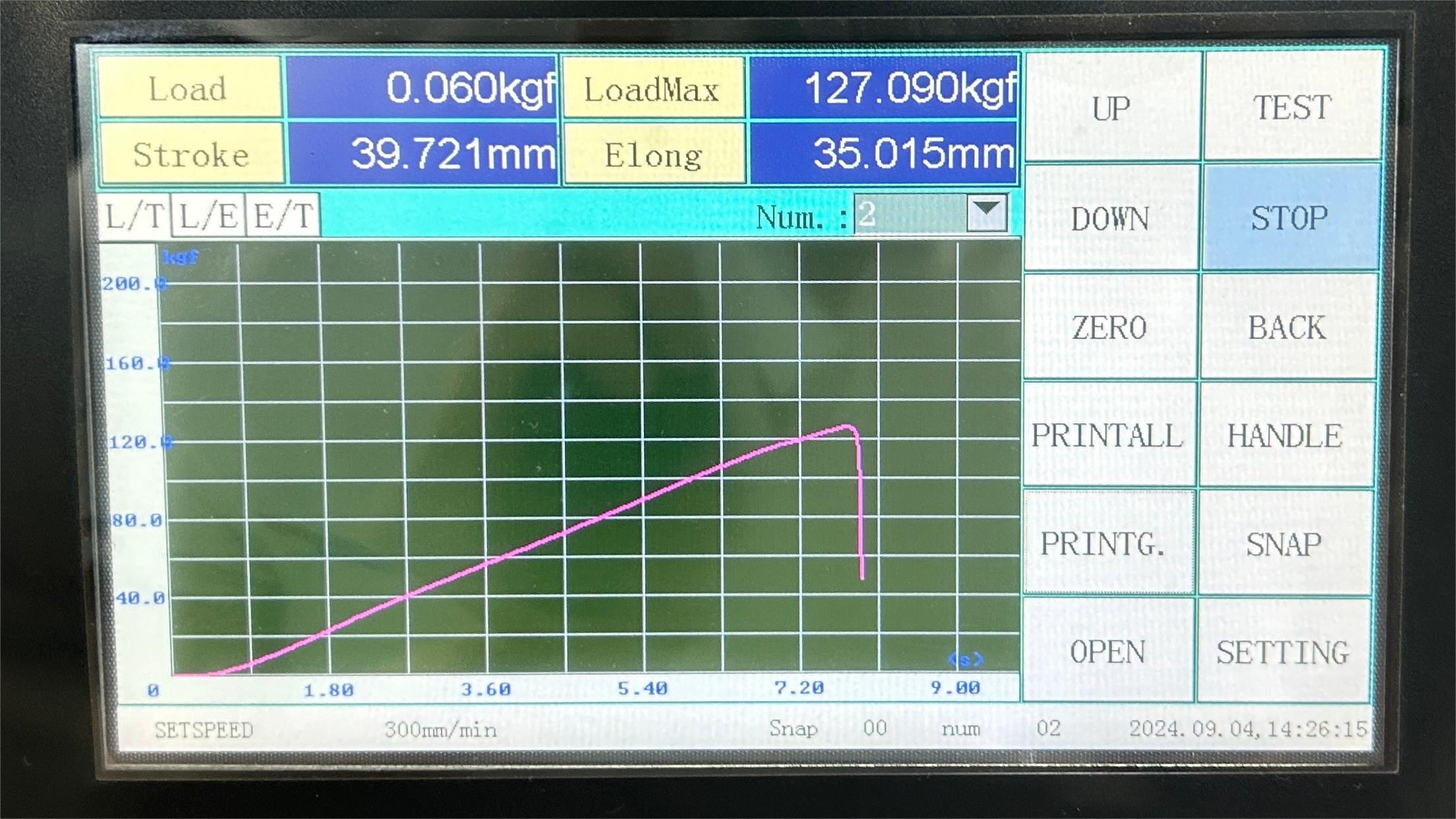

Display: HZ-2000 dark blue LCD display, membrane touch keys, with the following functions.
①. Single test, 10-point statistics manually and automatically calculate its average and break values;
②. Multi-unit automatically exchange such as kg, Lb, N;
③. Function of free to take point;
④. With multi-calibration function;
⑤. Auto printing function;
⑥. Using 24-bit AD acquisition, resolution 1 / 200000;
⑦. Decimal digits 0 to 4 arbitrary choice;
⑧. Starting up using password protection feature, which can effectively prevent the non-operators to use
⑨. Ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine
⑩. Overload protection function can be set, effectively preventing machine from overload;
