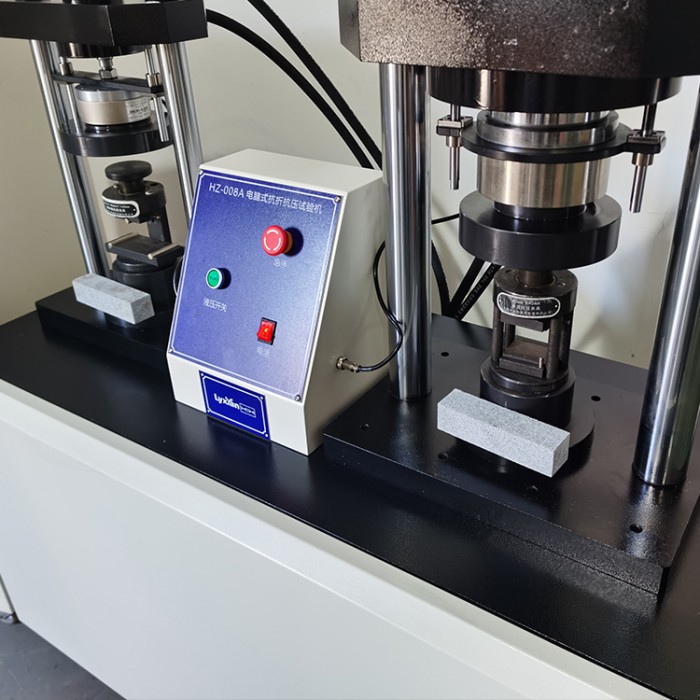

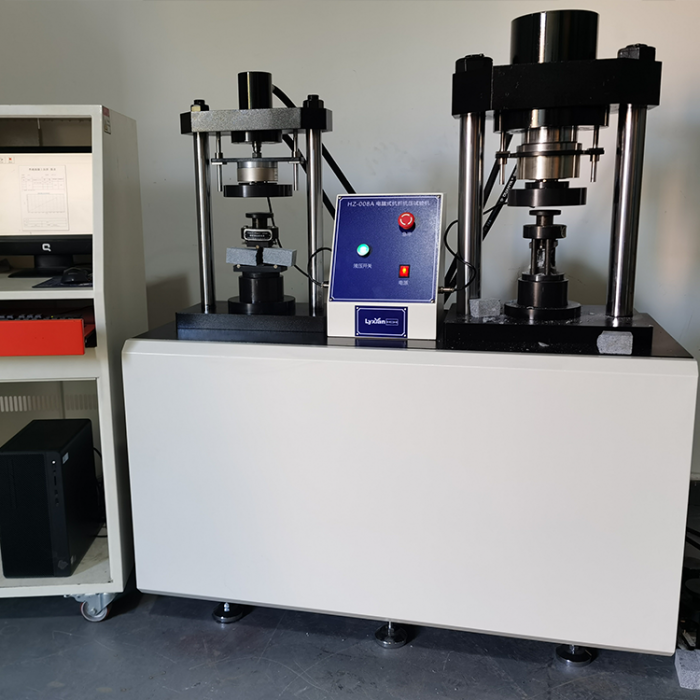

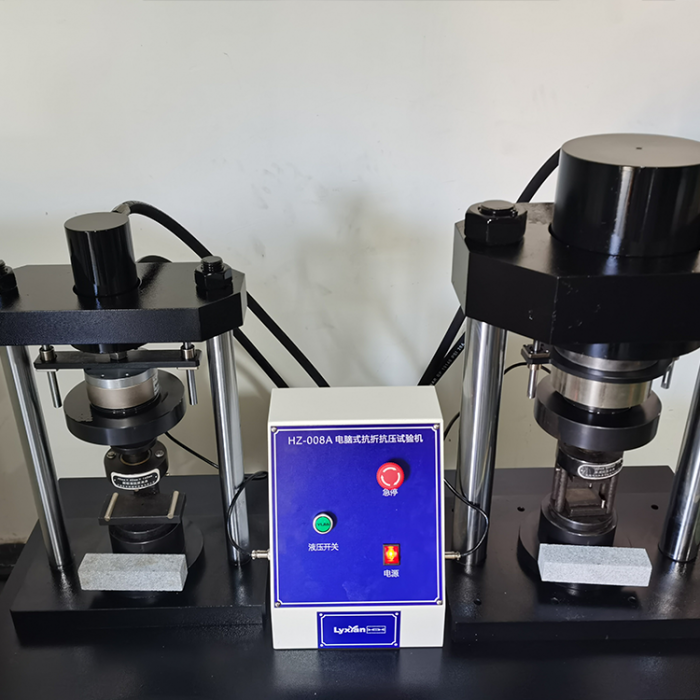

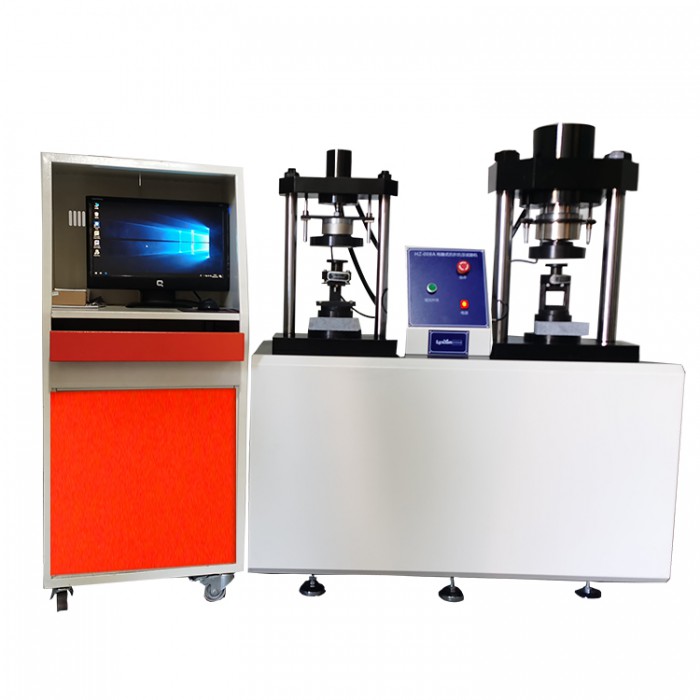

Concrete cube block Hydraulic 300KN 30t Cement Compression Testing Equipment HZ-008

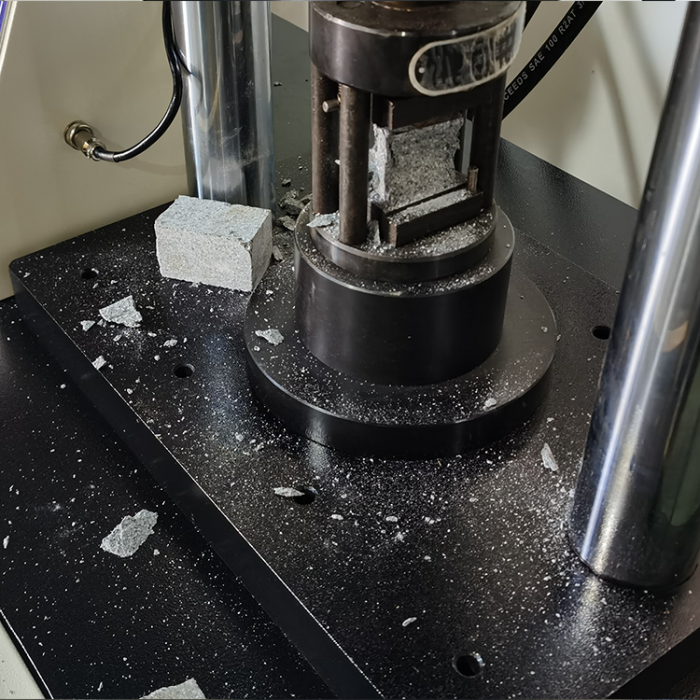

Compression Testing Machine It is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test.The hydraulic oil tank driven by high-pressure pump into the motor oil, flows through the one-way valve, high pressure filter, pressure valve, servo valve, into the cylinder. Computer control signals to the servo valve,Control direction and opening of the servo valve ,to control the flow into the cylinder,achieve constant test force control.Control system: System including digital servo valve, high-precision sensors, controllers and software, high control precision and reliability.Meet GB, ISO, ASTM and other standards for cement, mortar, concrete and other materials testing requirements.
  • Tel:13711888650
  • Product Details

Equipment summary:

Compression Testing Machine It is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test.The hydraulic oil tank driven by high-pressure pump into the motor oil, flows through the one-way valve, high pressure filter, pressure valve, servo valve, into the cylinder. Computer control signals to the servo valve,Control direction and opening of the servo valve ,to control the flow into the cylinder,achieve constant test force control.Control system: System including digital servo valve, high-precision sensors, controllers and software, high control precision and reliability.Meet GB, ISO, ASTM and other standards for cement, mortar, concrete and other materials testing requirements.



Technical parameters:

Max load KN300kN Compressive Test Machine
Hydraulic pump rated pressure25MPa
Loading rate0.3KN/S~10KN/S
Error loading speed±5%
Pump rated flow1.52L/min
Upper and lower bearing plate sizeφ155mm
Maximum distance between the upper and lower plate260mm
Piston diameterφ130mm
