- Product Details

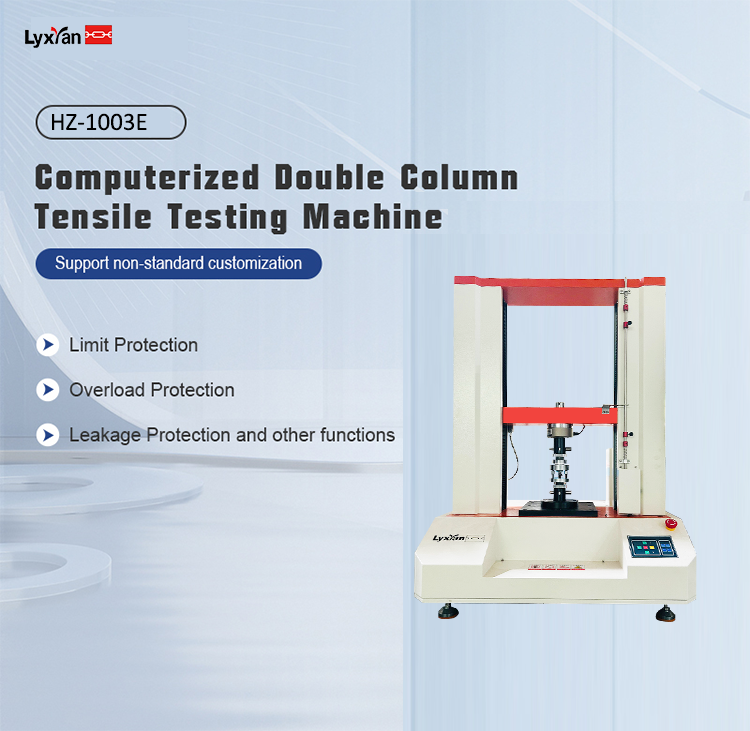

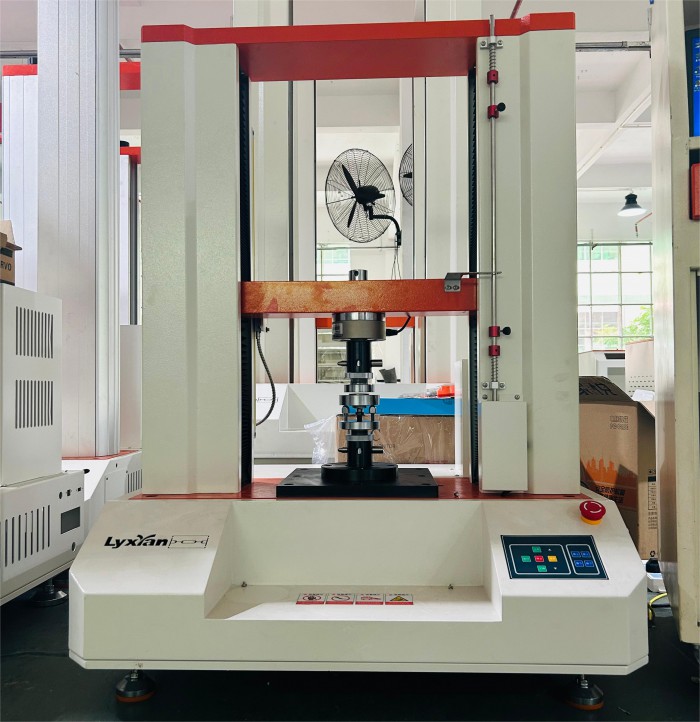

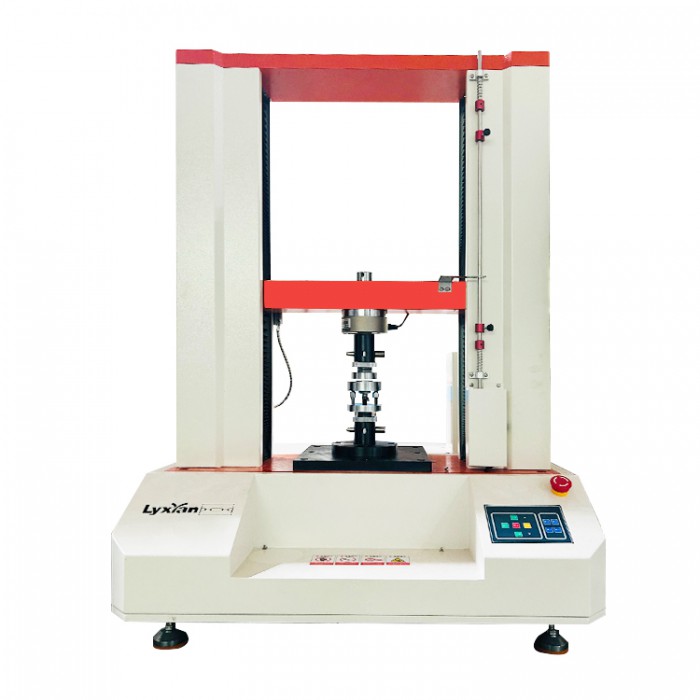

1003E Dual Column Rubber pad resilience Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control. Rubber pad resilience Universal Testing Machine is easy to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line. Rubber pad resilience Universal Testing Machine is mainly applied to test the Rubber pad resilience which the load is less than 2KN
Meet the standard:
ASTM D1054
Technical parameter:
| Model | HZ-1003E |
| Max. load | 2KN,5kN (optional) |
| Accuracy | 0.5 grade |
| Effective load range | 0.2%~100% FS, "FS" for the full scale |
| Force error | Less than ±1% of the value |
| Test speed adjusting range | 0.001~500 mm/min (stepless speed regulation) |
| Speed Accuracy | 0.50% |
| Test force value for resolution | ±1/250000 of the Max. Force (Full resolution remains the same) |
| Deformation measurement range | 0.2~100%FS |
| Deformation measurement error | Less than ±0.5% |
| Deformation of the resolution | 1/250000 of the Max. Deformation (Full resolution remains the same) |
| Safety device | Electronic limit protection |
| Overload protection | More than 10% of the Max. load automatic protection |
| Data acquisition frequency | 100times/sec |
| Valid test width | 400mm |
| Maximum stroke | 400mm |
| Dimension | 750×400×920MM (L*W*H) |
| Power Supply | single phase AC 220V/0.4kW |
| Weight | 80kg |
