ASTM D882 5KN Capacity Thin Film Tensile Strength Testing Equipment HZ-1005B-Dongguan Lixian Instrument Scientific Co.

Product Details

Equipment summary:

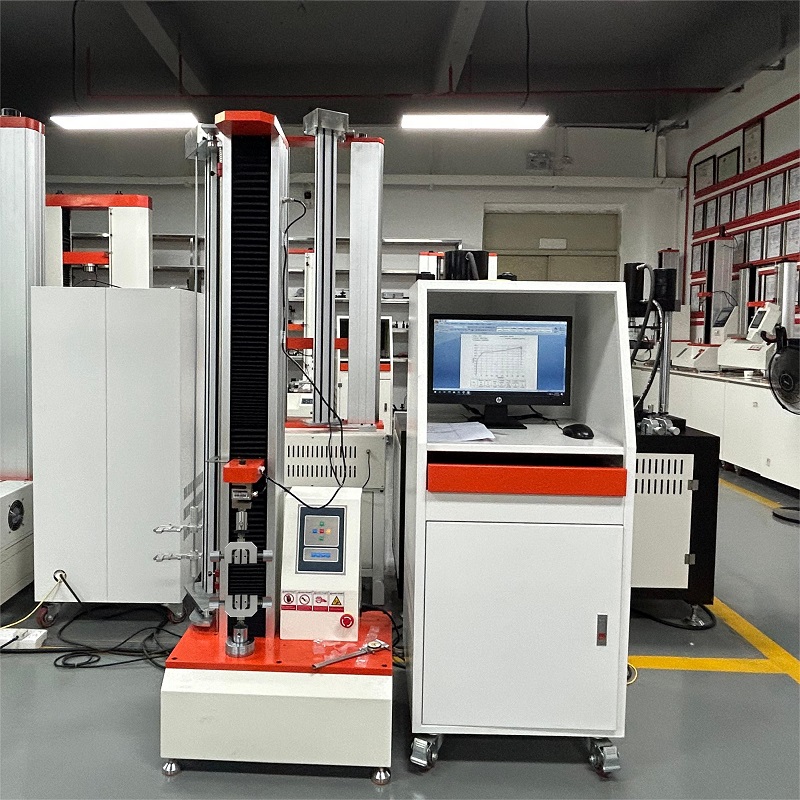

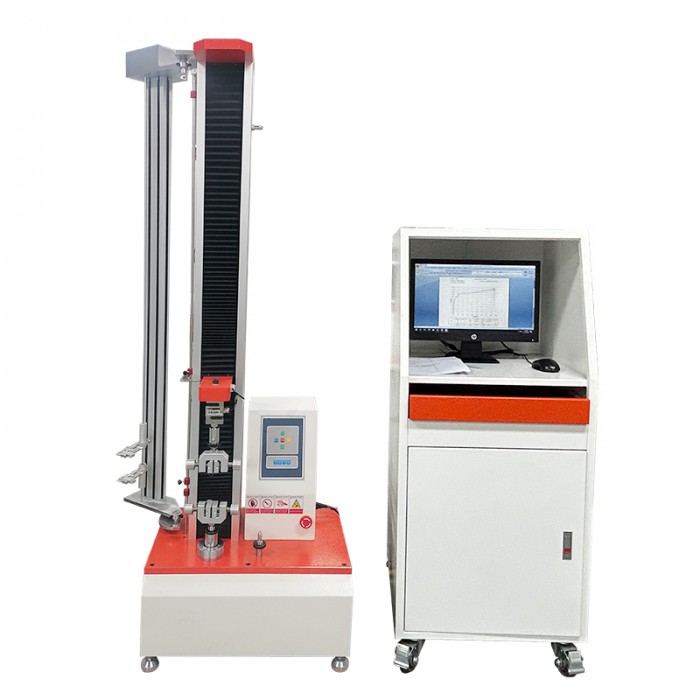

ASTM D882 Thin Film 5kn Tensile Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This series of machine using single-space structure, operational space at the bottom, it is mainly applied to test Thin Film material which the load is less than 5KN, it has the parameters, such as stress, strain, control mode of displacement,calculated max force, tensile strength, bending strength, compressive strength, elastic modulus, rate of elongation, yield strength and others.

Main functions:
HZ-1005B can be test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add extensometer) and others for control products quality. Such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials.

Corresponding standard:
ASTM D882

Technical parameters:

Model Number	1005B
Certification	ASTM D882
Maximum load	5KN
Accurate grade	0.5 grade
Effective tensile stroke	300mm
Test speed	0.01~500mm/min
Unit	KG,N,LB, TON can be exchanged.
Measuring accuracy	the value±0.5%
power	400w
Motor	Delta AC servo motor and drive
Overload protection	Overload 10%, automatic protection

Functions.

①. Single test, 10-point statistics manually and automatically calculate its average and break values;
②. Multi-unit automatically exchange such as kg, Lb, N;
③. Function of free to take point;
④. With multi-calibration function;
⑤. Auto printing function;
⑥. Using 24-bit AD acquisition, resolution 1 / 200000;
⑦. Decimal digits 0 to 4 arbitrary choice;
⑧. Starting up using password protection feature, which can effectively prevent the non-operators to use
⑨. Ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine

⑩. Overload protection function can be set, effectively preventing machine from overload;
