Equipment Summary:

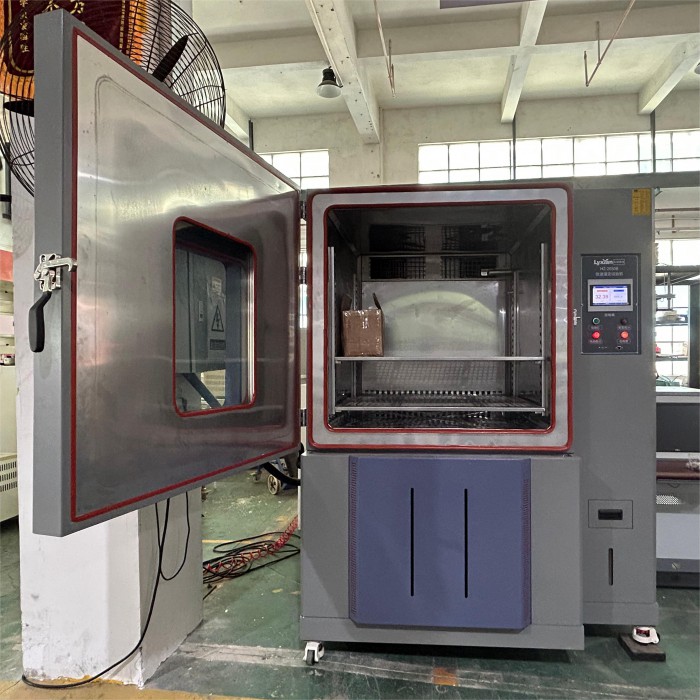

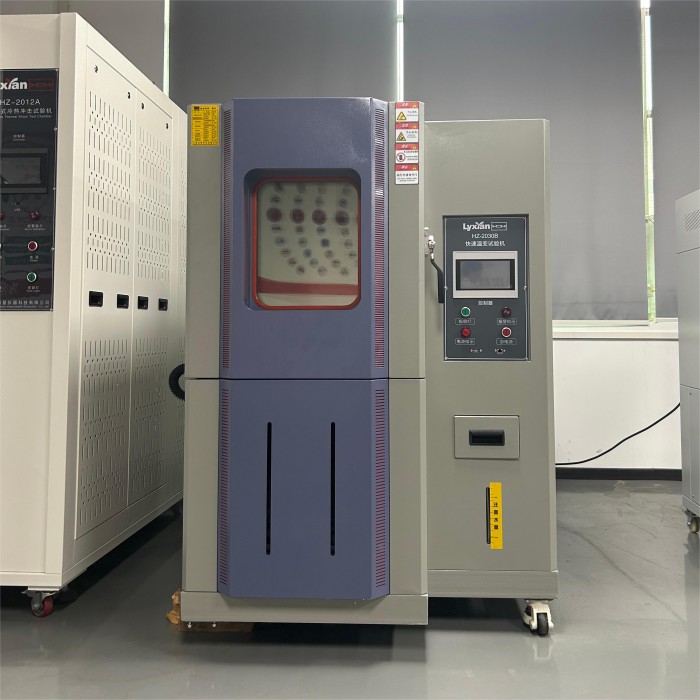

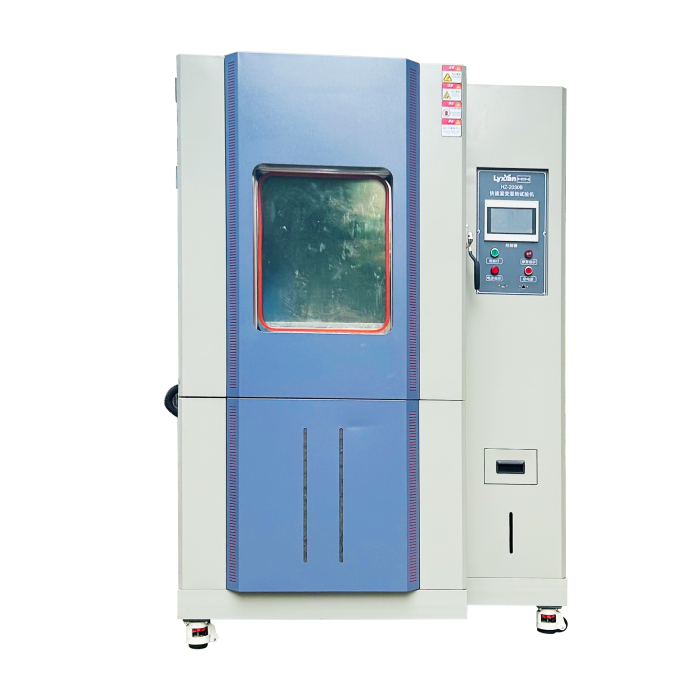

Temperature Rapid Change Test Chamber is mainly composed of cabinet, refrigeration system, heating system, air circulation system and control system. The outer shell of the box is made of cold-rolled steel plate electrostatic spraying or matte stainless steel, and the inner tank is made of high-quality mirror-finished stainless steel plate. There is a large area observation window in the middle of the door and an observation lamp, so that the user can clearly see the sample.
Function:
This Temperature Rapid Change Test Chamber HZ-2030A is suitable for various parts or complete machines such as instrumentation, chemistry, plastics, electronics, food, clothing, vehicles, metals, chemistry, building materials, aerospace, etc., for adaptability tests under rapid temperature changes or gradual changes Or conduct a temperature stress screening test to help scientifically analyze and evaluate the performance and changes of the test product under the proposed conditions for product design, improvement, identification and factory inspection.
Features:
1. The Temperature Rapid Change Test Chamber HZ-2030A is a test box that can apply temperature stress and can achieve rapid changes between expected temperature values (such as +85~-35℃ temperature range, temperature rise and fall rate of 5℃/min), which is cooled by System, heating system, control system, air circulation system, sensor system, etc.
2. The Temperature Rapid Change Test Chamber HZ-2030A has a large temperature control range and can provide: high and low temperature rapid change test, one or more temperature change tests (cycles); the rapid temperature change test box can also perform low temperature (ultra low temperature) and high temperature separately Constant temperature test.
3. The Temperature Rapid Change Test Chamber HZ-2030A adopts a perfect design, the appearance has excellent texture, beautiful atmosphere, strong and durable.
4. The control system adopts a special control system for rapid temperature change test, with strong scalability, full Chinese man-machine dialogue, simple operation, precise control, stable and reliable.
Application:
It is suitable for testing the quality of products such as electronics, plastic products, electrical appliances, meters, food, vehicles, metals, chemistry, building materials, aerospace, medical, etc.
Technical Parameter：
| Model | HZ-2030A | |
| Volume | 80L, 100L, 150L, 225L, 408L, 608L, 800L, 1000L (option or customize) | |
| Index | Temperature range | -70°C～150°C (option) |
| Accuracy/Volatility | ≤±1°C | |
| Accuracy/Uniformly | +2°C-3°C | |
| Temperature change rate | 5°C～10°C/ min | |
| 1. Linear (Specify degrees per minute) | ||
| 2. Nonlinear (The specified time reaches the specified temperature) | ||
| Humidity | 20%-98%R.H. (or customize) | |

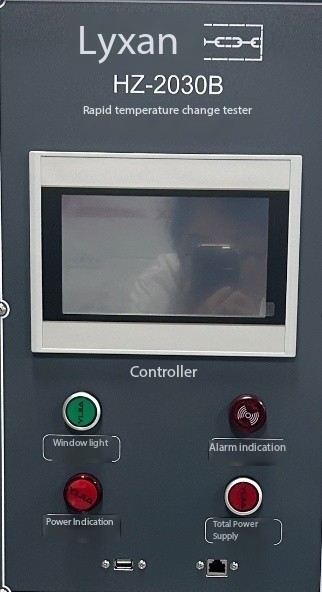

| Operation Control System | Controller | TEMI880 colorful touch screen controller |
| Temperature sensor | PTR Platinum Resistance PT100Ω/MV | |
| Heating system | Fully independent system, nickel-chromium alloy electric heating heater | |
| Cooling system | "Tecumseh" Compressor/fully enclosed air-cooled cascade compression refrigeration method | |
| Cycle System | Temperature-resistant and low-noise air-conditioning motor. Multi-blade centrifugal wind wheel | |
| Material | Outer box material | High-quality carbon steel plate. Phosphating electrostatic spray treatment/SUS304 stainless steel matte line hairline treatment |

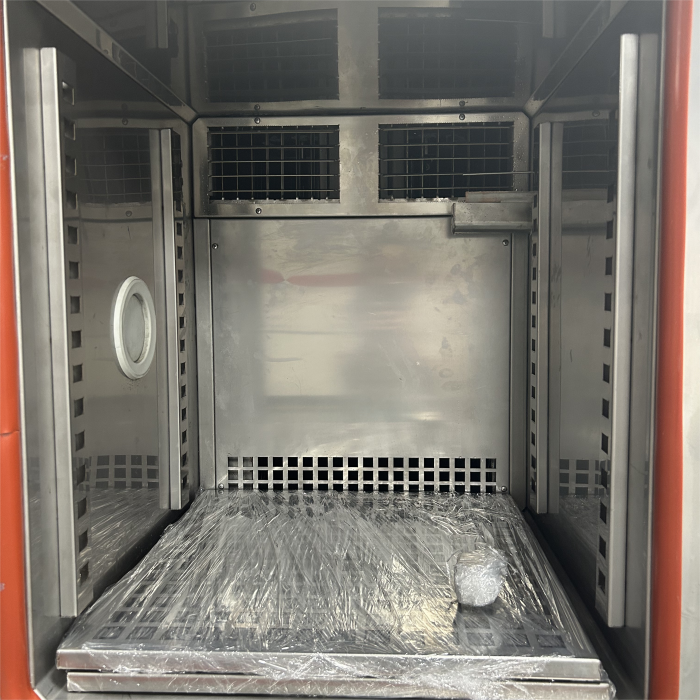

| Inner box material | SUS304 stainless steel high quality mirror light board | |
| Insulation material | Polyurethane rigid foam, ultra-fine glass fiber cotton | |
| Door frame insulation | Double-layer high and low temperature aging resistance silicone rubber door sealing strip | |
| Standard configuration | Multi-layer heating touch frost with 1 set of illuminated glass window, 2 sample racks, 1 test lead hole (25, 50mm) | |
| Safety system | Leakage, short circuit, over-temperature, motor overheating, compressor over-pressure, overload, over-current protection | |
| Power | 3 Phase, AC380V±10%, 50±0.5Hz | |
| Working temperature | 5°C～＋30°C, ≤85%R.H | |
| NOTE: | ||
| 1. The above data are all measured at ambient temperature (QT) 25°C. No load in the studio 2. Non-standard high and low temperature and low temperature test chambers can be customized according to the specific requirements of users | ||
Note:
1. The above parameters are for the equipment without load and measured at an ambient temperature of 23°C.
2. The actual configuration of the equipment is subject to the cooperation agreement signed by both parties.
