Product summary:

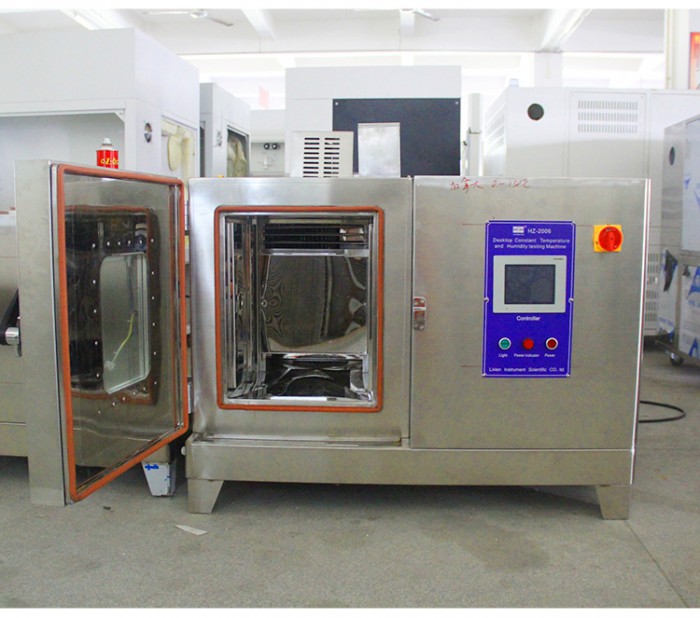

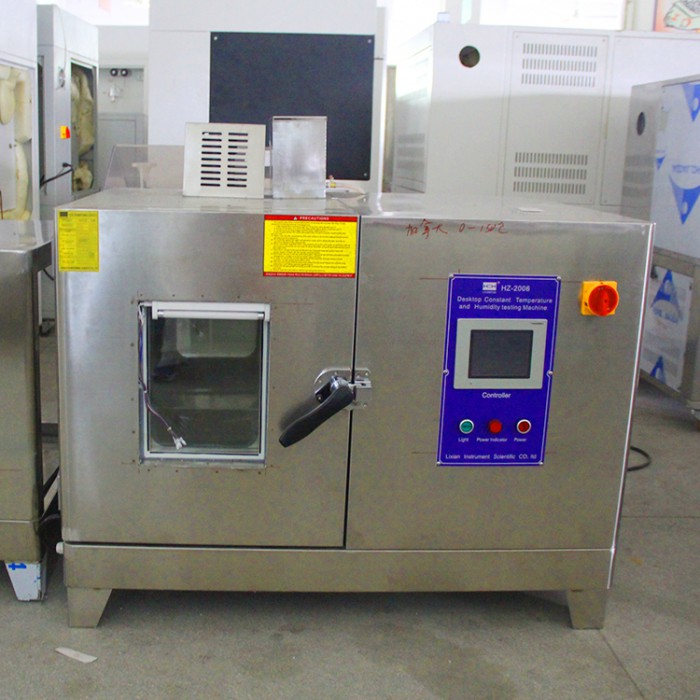

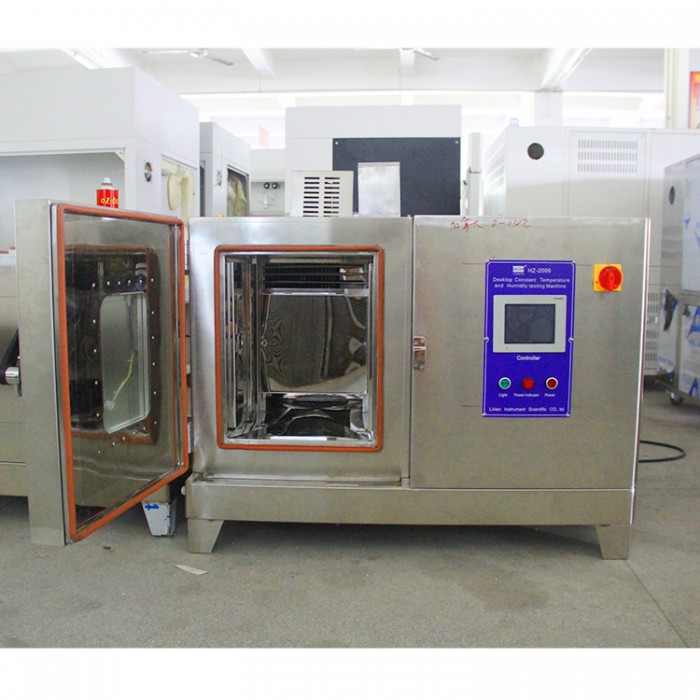

HZ-2006 Desktop Constant Temperature Humidity Chambers is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. The language can choose either English or Chinese and with the touch-screen liquid crystal display screen, simple to operate and program easy to edit. It can show the system operating data, implementation and et-up process curve. A trouble occurs in operation, the screen automatically displays the trouble and provide method for trouble shooting.

Corresponding standard:

1. GB11158  high-temperature technical condition.

2. GB10589-89  low-temperature technical condition

3. GB10592-89  high-low-temperature technical condition

4. GB/T10586-89  humidity technical condition

5. GB/T2423.1-2001  low-temperature testing method

6. GB/T2423.2-2001  high-temperature testing method

7. GB/T2423.3-93  humidity and heat testing method

8. GB/T2423.4-93  method of humidity and heat alternating

9. GB/T2423.22-2001  temperature testing method

10. IEC60068-2-1.1990  low-temperature testing method

11. IEC60068-2-2.1974  high-temperature testing method

12. GJB150.3  high-temperature test

13. GJB150.4  low-temperature test

14. GJB150.9  humidity test

Applicable industries:

Temperature Humidity Chambers applied to test the products quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.

Technical parameter:

 Model HZ-2006 Temperature Humidity Chambers

 Inside size W*H*D 40x50x40 (cm)

 Temperature range -40°C～+150°C±2°C (or requirement)

 Humidity range 20%～98%RH±2%RH (or requirement)

 Volatility / uniformly ≤±0.5°C/≤±2°C

 Accuracy +0.5°C, -3%R.H

 Heated/cooling About 4.0°C/min / about 1.0°C/min (specific condition is cooling 5~10°C/min)

 Heated speed 1.0～3.0°C/min

 Cool speed 0.7～1.0°C/min

 Material SUS 304# stainless steel

 Controller Touch Screen Controller for South Korea "TEMI"

 Sensor PT100Ω/MV

 Insulation material High-temperature high-density amino acid ethyl ester foam insulation materials

 Heated system: Nickel-chromium alloy electric heating type heater

 Humidity system: Stainless steel surface evaporative humidifier

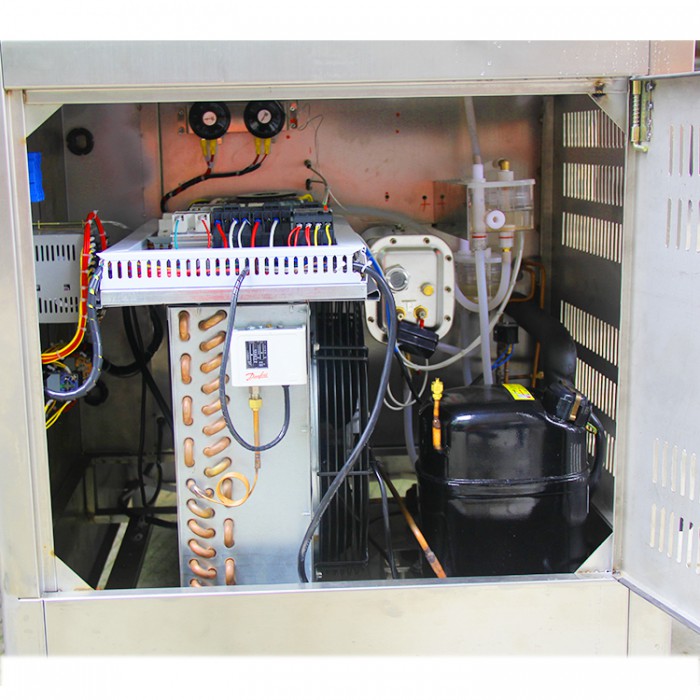

 Compressor France “Tecumseh”

 Power 1Φ 220VAC±10% 50/60Hz
