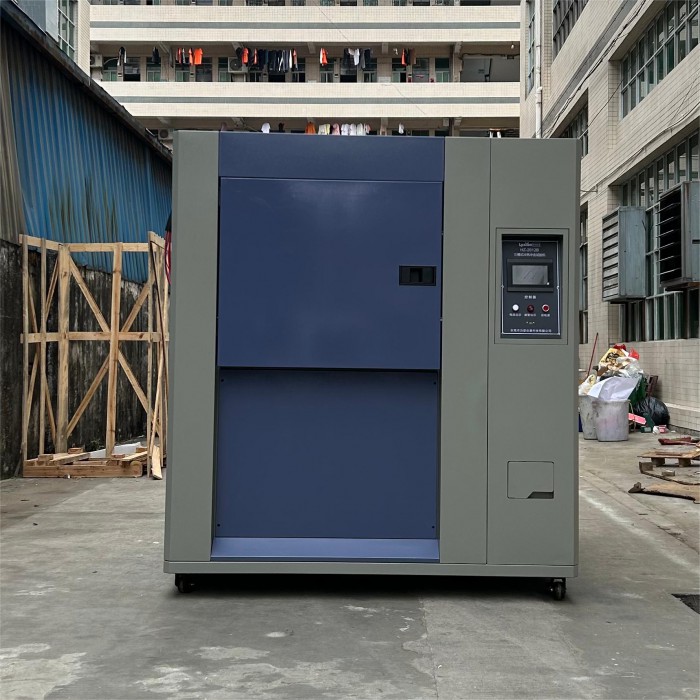

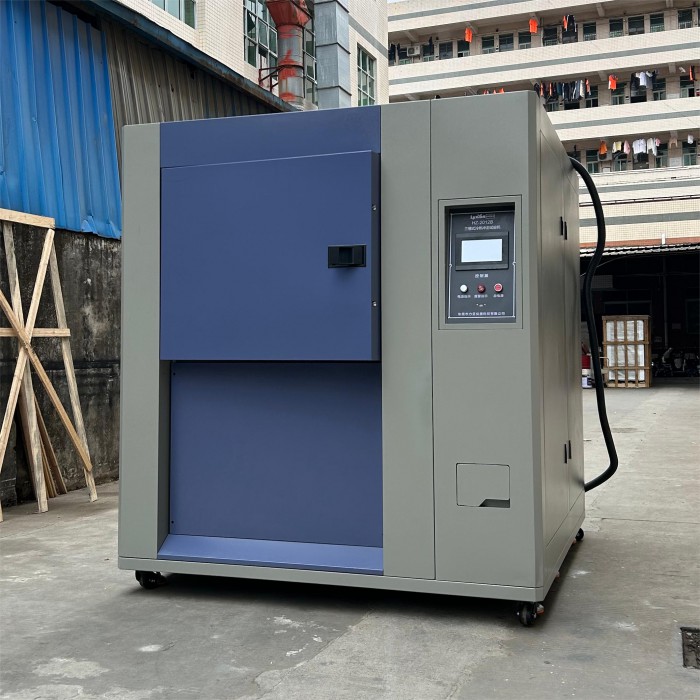

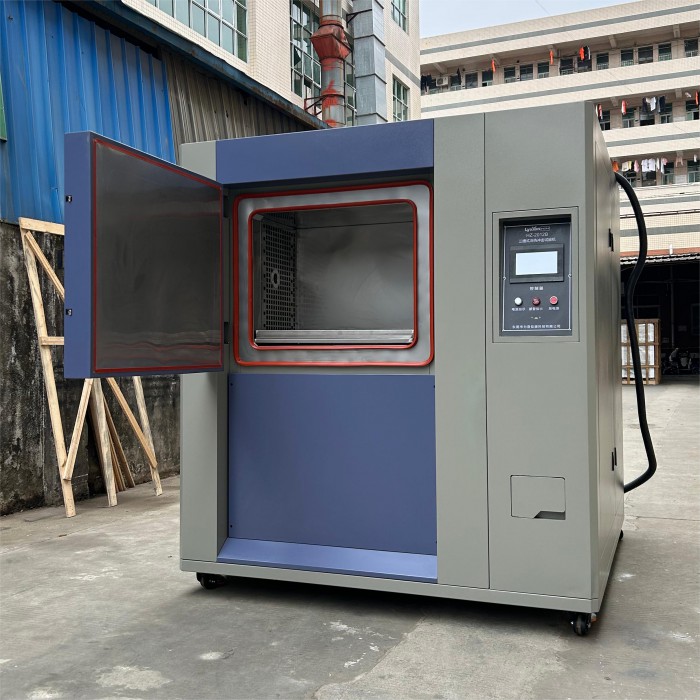

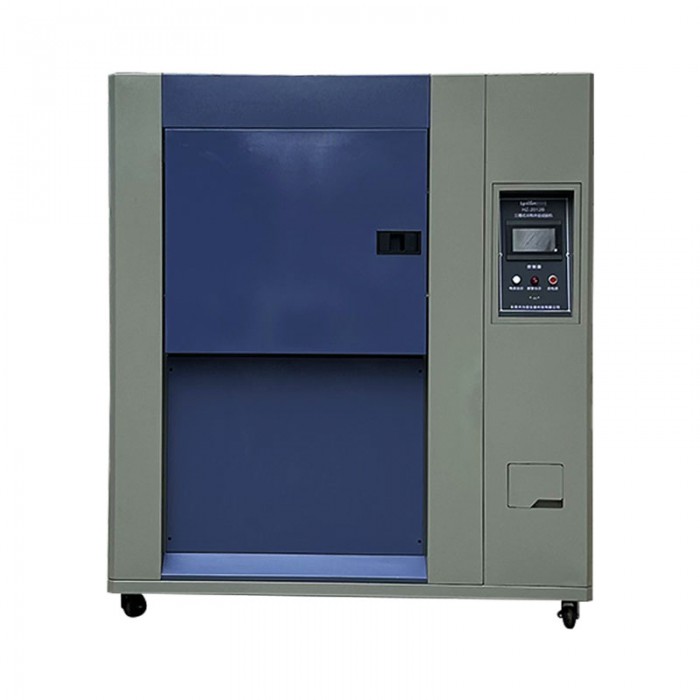

125L three-slot thermal shock testing machine (plastics, medical products, etc.)
3-slot hot and cold thermal shock chambers is divided into high temperature area, low temperature area and test area three parts, each area is a unique insulation structure, so doing hot and cold impact test.
  • Tel:13711888650
  • Product Details


Features

Thermal Shock Chambers are used to do high-temperature impact test or low-temperature impact test, the maximum time is up to 9999 minutes, the most cycle time is up to 9999 times. The machine can be automatically or manually cycle the impact or selectively set the two areas or three areas to impact of hot and cold. It used binary cooling system that is very effectiveness for cooling, the cooling system is divided into the air-cooled and water-cooled. It also can be connected with a computer, but the record instrument is only for optional purchase. Color LCD touch-control operation interface with Chinese and English, easy to operate.


Corresponding Standard

1. GB/T2423.1-1989 low-temperature testing method

2. GB/T2423.2-1989 high-temperature testing method

3. GB/T2423.22-1989 temperature test

4. GJB150.5-86 temperature impact test

5. GJB360.7-87 temperature impact test

6. GJB367.2-87 405 temperature impact test


Applicable Industries

Thermal shock chambers applied to aviation, military, ships, electrical, electronics, instruments and meters; medical equipment; civilian nuclear energy; colleges and universities; research laboratories; commodity inspection, arbitration, and technical supervision departments; building materials ceramic; petroleum and chemical products, for high and low temperature impact test.


Technical parameter:

 Model 2012B-49L 2012B-80L 2012B-150L

 Size (W×H×D)mm Inner box 35×35×40 50×40×40 60×50×50

 Outer box 150×195×145 180×200×145 190×200×155

 High-temperature range 80°C ~ 200°C

 Low-temperature range -65°C~-1 0°C

 Testing room temperature High 60°C ~ 150°C

 Low -10°C~-55°C

 Heating-up time 60°C ~ 200°C about 25min

 Cooling time 20°C~-65°C about 75min

 Impact recover time High-temperature (150°C) about 30min

 Low-temperature (-40°C or -55°C or -60°C) about 30min

 Impact recover time 5min

 Weight 2.5KG 5KG 10KG

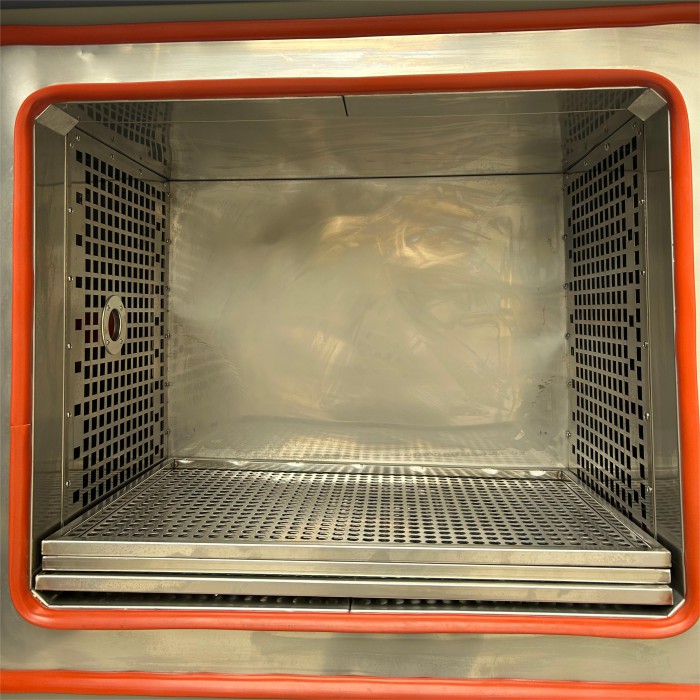

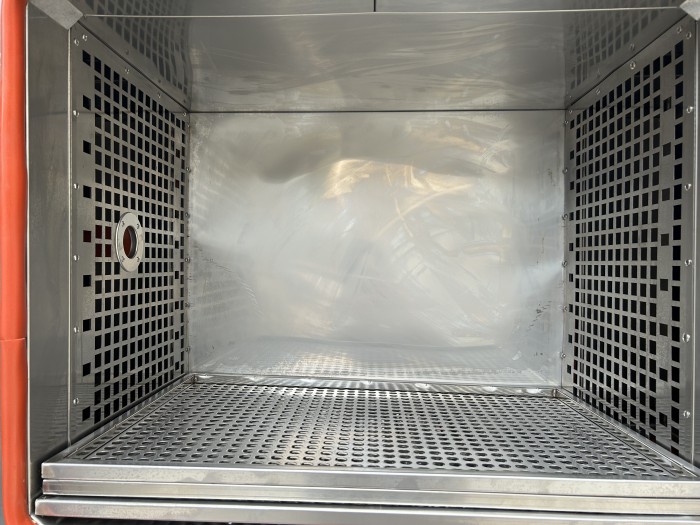

 Inner material SUS # 304 stainless steel

 Outer material SUS # 304 stainless steel

 Insulation High-precision glass wool + PU foam rubber

 Cooling system Copy blowing type or watercooled, and environmental protection refrigerant.

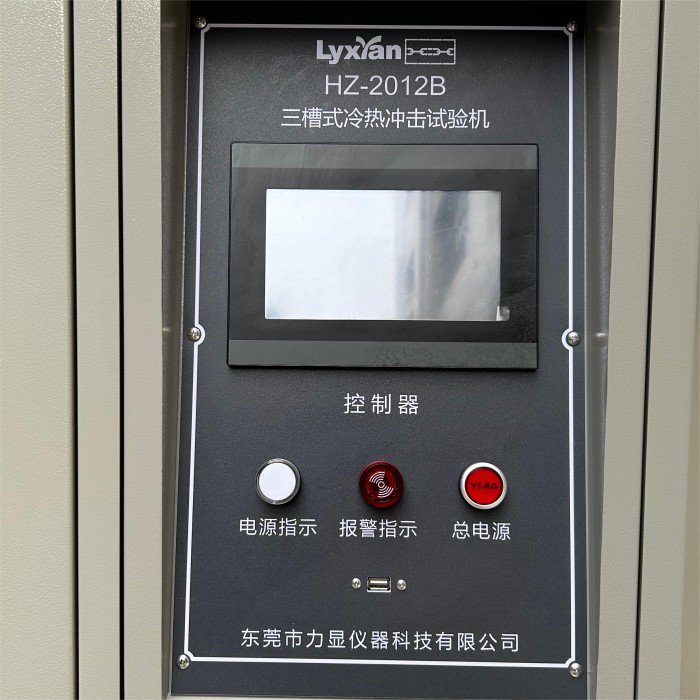

 Controller Man-machine interface with touch-programmable control

 Protector Compressor slide off, overheating, over-temperature, over-pressure, dry heat, motor overload protection switch

 Attachment Compartment frame 2, the test hole 1

 Power 18KW 32KW 45KW

 Power supply AC380V±10%, 3PH 50/60Hz
