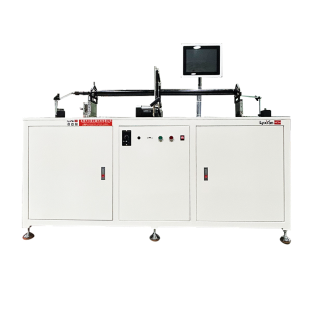

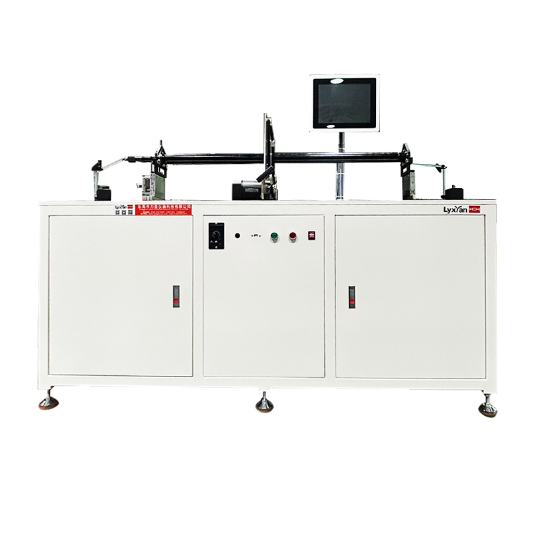

Model HZ-300kg Hard-supported Balancing Machine

Equipment Overview:

Hard-bearing balancing machine is a kind of high-speed hard-bearing balancing machine with belt transmission structure, which is designed and manufactured by our factory by introducing foreign advanced technology. It is widely used in motors, small centrifugal fans, cots, pumps, crankshafts and other industries.

Features:

The display part of the hard-supported dynamic balancing machine is in the form of a 19-inch LCD screen, which not only has the characteristics of large measuring range, high efficiency, safe and simple operation, and intuitive display, but also occupies a leading position in the domestic balancing machine industry. Before the operation, as long as the distance between the two calibration faces of the workpiece to be calibrated, the distance between the calibration faces and the supporting points and the corrected radius data are set, the unbalance of the workpiece and the corresponding phase value can be correctly displayed at one start.

Measurement system

The measuring system is the core of the balancing machine. This system uses the latest CPU operation chip, and after signal amplification, filtering, analog-to-digital conversion, the measurement data is displayed. At the same time, it also has the output of database, communication data and control signal, including the connection of printer. The man-machine dialogue interface is intuitive and simple to operate, which is suitable for the display mode of industrial production environment. After strict multi-level component screening, large-scale electrical circuit manufacturing process, coupled with high and low temperature aging test, can be suitable for balancing machine to carry out accurate measurement in different environments.

Technical Parameters
