Equipment Overview

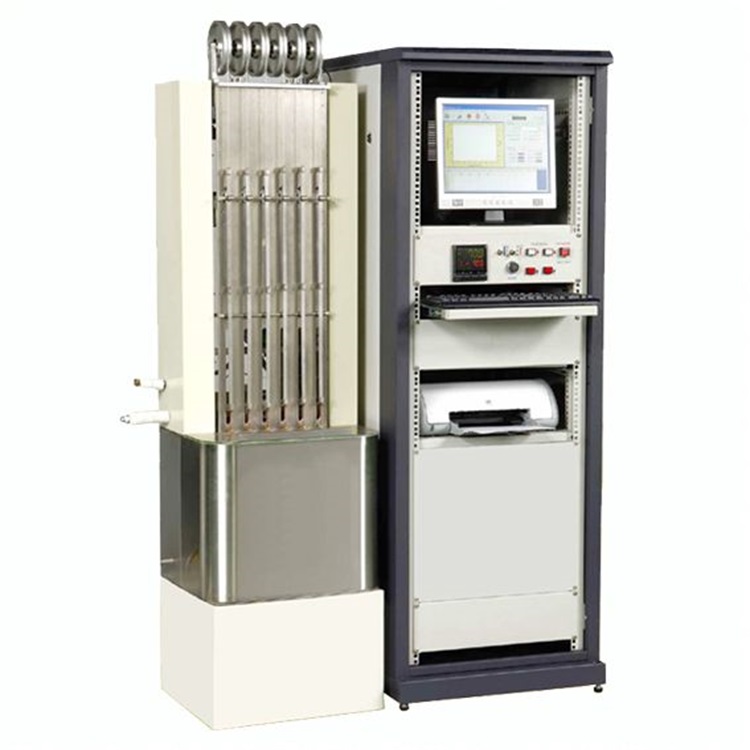

Rubber Low Temperature Recovery Test Equipment HZ-7029  The stainless steel temperature tank equipped with a stirrer can determine the temperature in the tank. PID micro-treatment temperature stirrer, PT100Ω temperature sensor, plus turn-on power assist, can precisely control the tank. Bipolar compressor refrigeration, which can quickly cool the temperature inside the tank and shorten the cooling time.

Applicable Industry

Rubber

Features

1.Computerized automatic control

1) Windows window operating system software, in addition to providing a friendly man-machine interface, it also contains the following features:

2) A large number of test conditions can be preset and stored to save the set operation before the test.

3) The user is free to select and match relative coordinates; for example, the amount of response corresponds to time or temperature.

4) The curve and related data after the test can be stored and accessed.

5) It is convenient to manage the transfer, copy and clear of stored data.

2.Automatic measurement and instant display

The precise displacement sensor accurately reads the amount of elastic recovery and synchronizes the computer's recording and display of the amount of recovery versus time versus temperature on the display.

3.Glass transition

Accurate temperature control and complete recovery process record, you can easily know the glass transition temperature of the compound.

4.Automatic calculation of data

The computer will automatically calculate the average temperature of TR10, TR30, TR50, TR70, and the temperature difference between TR10 and TR70.

5.Language switching

The software of this device supports Chinese and English switching functions.

6.Data output

The device software provides the ability to transfer the measured data to the EXCEL software for reading; in addition, if you install Acrobat software separately, you can easily save the report email to other computers.

Technical Parameters
