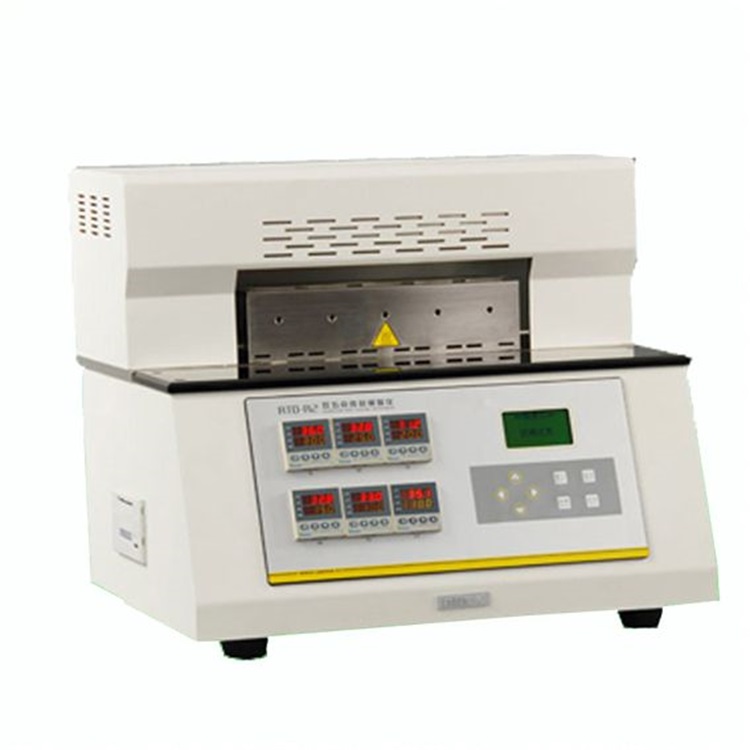

Product summary:

This product can be a determination of plastic film base material, flexible packaging composite membrane, coated paper and other heat sealing compound membrane in certain heat sealing speed, hot sealing pressure and five kinds of heat sealing temperature heat sealing parameters. Heat sealing materials melting point, thermal stability, liquidity and the thickness different, can show different heat sealing performance and its sealing work art parameters may be the difference is very big. Use this machine can be accurate, efficient and get the best heat sealing performance parameters.

Meet standard:

ASTM F2029、YBB 00122003

Technical parameters:

1. Model:HZ-1910

2. Heat sealing temperature: room temperature～250℃

3. Heat sealing pressure: 0.05～0.7MPa

4. Heat sealing time: 0.1～999.9s

5. Temperature control accuracy: ±0.2℃

6. Temperature gradient: ≤20℃

7 Air source pressure: ≤0.7MPa

8 Thermal Cover: 40 mm×10 mm×5 PCS

9. Dimension of frame: 526(L)mm×430(B)mm×450(H)mm

10. Power: AC　220V　50Hz

11. Net weight: 51kg

Product feature:

· Once test can get two group heat sealing gradient samples, double the efficiency

· LCD display, test parameters be clear at a glance

· Six groups of independent temperature P.I.D. temperature control system

· Combination temperature, gradient set, test efficiency improving five times

· The control system of the test environment P.I.D. parameters and to learn

· Heating element special manufacturing, temperature uniformity, long service life

· Easy to adjust the system pressure and high precision control

· Heat sealing time microcomputer subdivision, timing precision high

· Complete imported pneumatic components, performance is stable and reliable

· Heat sealing control original design, scientific and reasonable

· With indendent print function, and with the computer to carry on the communication

· Professional software support, group data statistics, analysis, print

· Mechanical operation design thoughtful, friendly human-machine interaction
