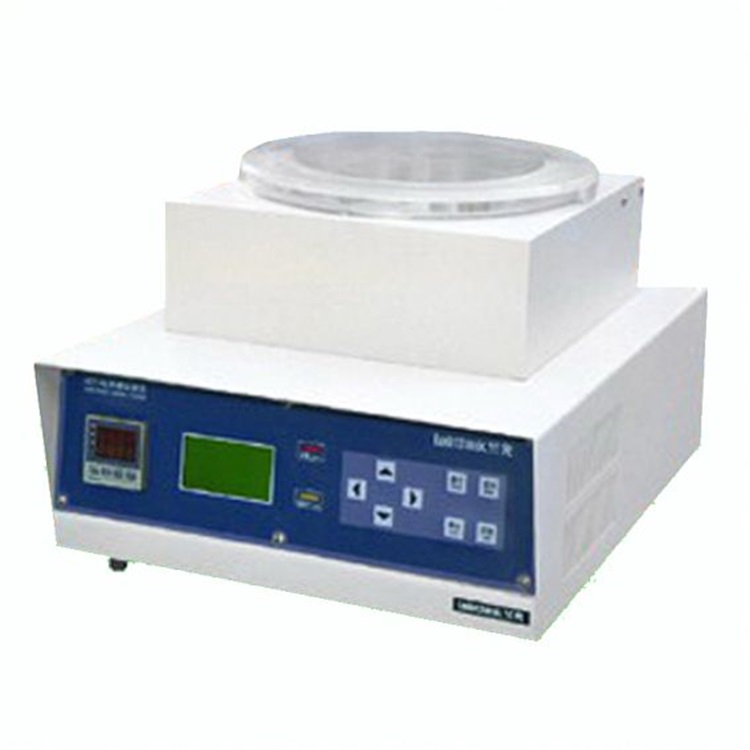

PE film Heat shrinkable tester Equipment is applied to all kinds of films in a variety of temperature liquid medium hot shrinkage performance test.

Working principle: the test instruments was made up of liquid bath cavity, heating elements and control system parts. Bath chamber is sample placed cavity, heating elements used to achieve the need temperature in the bathroom, the control system can be to set parameters and withhigh precision monitoring for the temperature in the cavity of bath.

Meet standard:

ASTM D2732

Technical parameters:

1. Model:HZ-1907C

2. Sample size:≤140mm×140mm

3. Temperature range:room temperature～200℃

4. Temperature control accuracy:±0.3℃

5. Power:AC 220V 50Hz

6. Dimension of frame:44(L)mm×370(B)mm×310(H)mm

7. Net weight:24kg

8. Standard configuration: mainframe, clamping nets 10 sets, clamping frame 3 pieces

9. Option：clamping nets, clamping frame

Basic operation steps:

Power up→set test parameters→began to preheat→preheating end→put in sample and start the timer→timing is over→take out samples.

Note:The next test, if a similar test parameters, can be directly into the test, don't need to set up test parameters.

Product feature:

1.The aluminum bath cavity, ensure rapid heating uniform
2.P.I.D. temperature monitoring
3.Liquid crystal display Settings, the man-machine dialogue friendly
4.Automatic timer function to ensure accuracy of the testing.

5.Special film rack, make operation more convenient
6.Accord with GB and integration ASTM and many kinds of test standard
7.The use of safe, reliable performance
