- Product Details
Equipment features:
1. Adopt the testing principle of inclined rolling ball method to test the instantaneous adhesion performance of the sample;
2. The test steel ball designed in full accordance with national standards ensures the high accuracy of the test data;
3. The test tilt angle can be freely adjusted according to the needs of the user.
Meet the standards:
GB/T 4852-2002GB/T4852-2002 Test method for initial adhesion of pressure-sensitive adhesive tape (rolling ball method) CNS-11888 Test method for adhesive tape and adhesive sheet
Application industry:
Specially designed and manufactured for adhesive, adhesive tape, and adhesive products industry. Applicable to initial adhesion and sustained adhesion test of pressure-sensitive adhesive tape, self-adhesive stickers and other related products.
Product parameters:
| Model | HZ-2405 |
| Inclined plate angle | 20°～40°, usually 30° |
| Number of specimens | 4Pcs |
| Specimen size | Width 10-15 mm, length 400 mm |

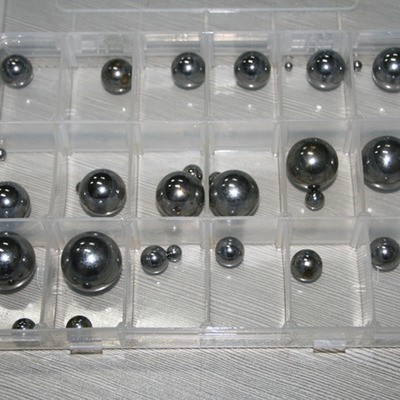

| Steel ball | No. 2 to 32, 1/16" to 1" (boxed) |
| Inclined plate material | 5mm thick frosted glass |
| Runway | Width: 25㎜; |
| Length: 100㎜ | |
| Weights | 500g |
| Machine size | 600×200×400mm |
| Machine weight | 20kg |
