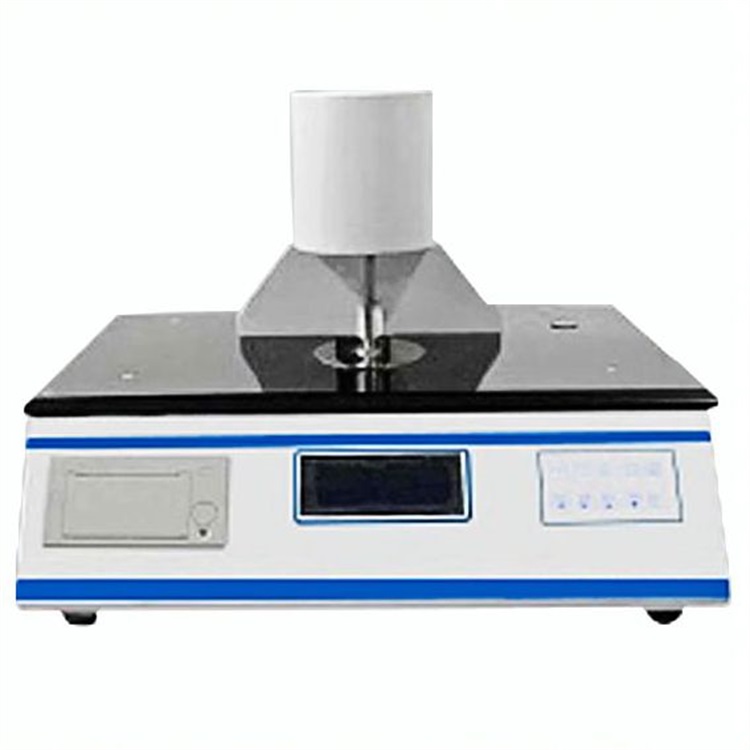

Thickness Tester is for precise thickness measurement of plastic films, sheets, diaphragm, paper, foils, Silicon Wafer and other materials.

CHARACTERISTICS Micro-computer control, LCD display; Manu interface, PVC operation board; Contact measurement; Auto rise-down measuring head; Two testing modes of manual and automatic; Real time data display, automatic statistics and printing; Max., Min., Average value and statistical error display; Standard contact area, pressure measurement (non-standard pressure is made to order); Reference measure calibration; Mini-printer;

TECHNICAL INDEXES

Test Range: 0~2mm(Routine) 0~6mm; 12mm(Optional)

Resolution: 0.1μm

Test Speed: 10 times/min (Adjustable)

Test Pressure: 17.5±1kPa(film); 50±1kPa(paper)

Contacting Area: 50mm2 (film) ; 200mm2 (paper)

Note:

select one from film and paper;

non-standard can customized

Power: AC 220V 50Hz

Dimensions: 300mm(L) x 275mm(B) x 300mm(H)

Net weight: 33kg

STANDARDS

ISO 4593, ISO 534, ISO 3034, ASTM D645, ASTM D374, ASTM D1777, TAPPI T411, DIN 53105, DIN 53353, JIS K6250, JIS K6328, JIS K6783, JIS Z1702

CONFIGURATION Standard: mainframe, mini-printer, standard measure.
