Elmendorf Tearing Tester HZ-6011P is designed for the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textiles and nonwovens. It is the necessary testing instrument for the packaging,paper industries, quality inspections and quarantine labs.

Standards:

ISO6383-1-1983, ISO 6383-2-1983, ISO 1974, ASTM D1922, ASTM D1424, ASTM D689, TAPPI T414

Industry Standards:

· AST D295, D752, D1424, D1922,

· D5734

· TAPPI T414, T496

· BS 4253, 4468

· CPPA D.9

· DIN 53862, 53128

· ISO 6383-2：1983    1974, 9290

· EN 21974

· SCAN P1

PRODUCT APPLICATION

Films, Paper, Rubber, Aluminum Foils, Laminated Films, Printed Matter

TECHNICAL FEATURE

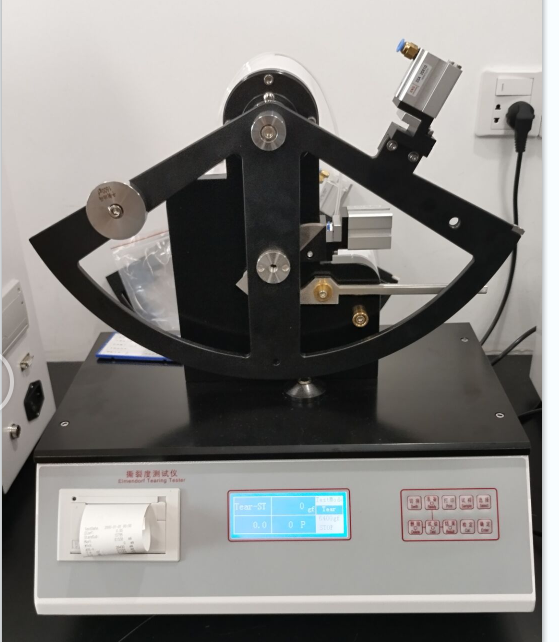

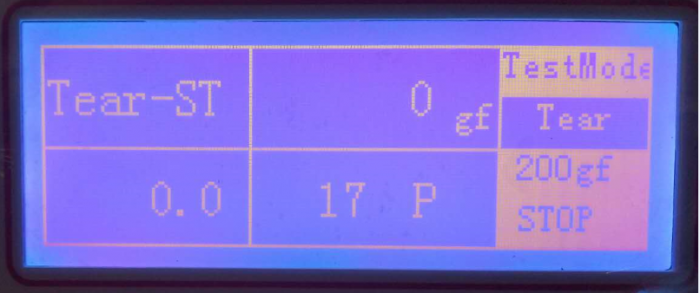

★The instrument is controlled by micro-computer, large LCD display
★The instrument is designed by automatic and electronic measurement which improves the testing accuracy

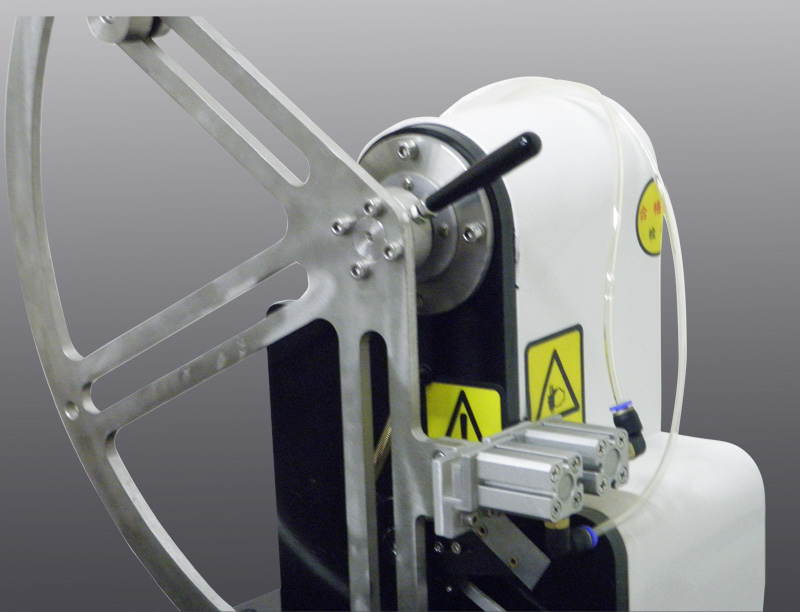

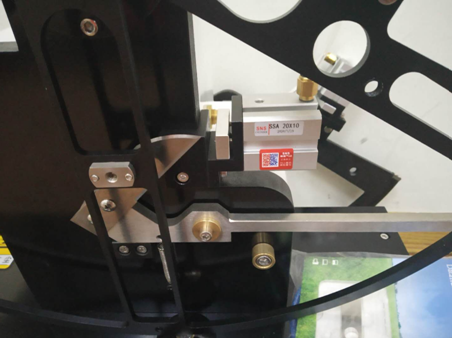

★Pneumatic specimen clamping and automatic release of pendulum could avoid the system error effectively
★Computer assisted horizontal adjustment system could maintain the instrument optimum status

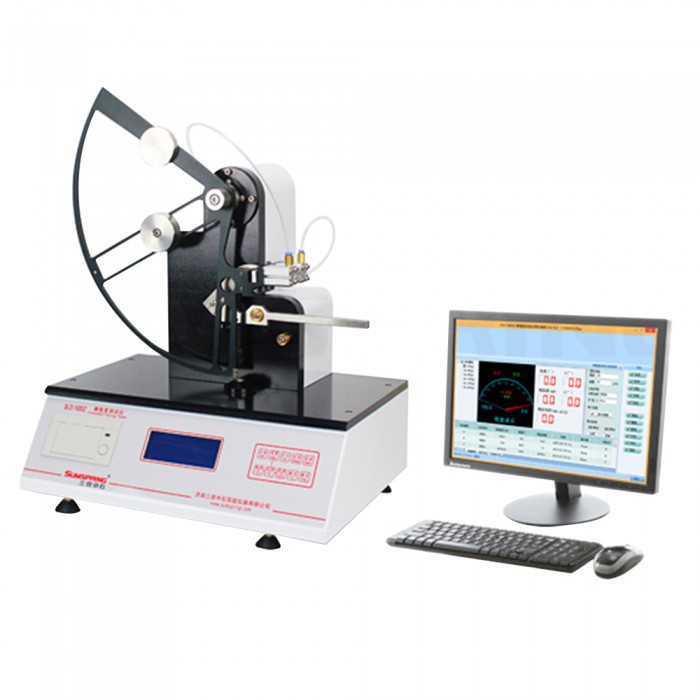

★Elmendorf tearing tester equipped with double system operation, micro-computer or computer software control
★Professional software supports multi-unit data output

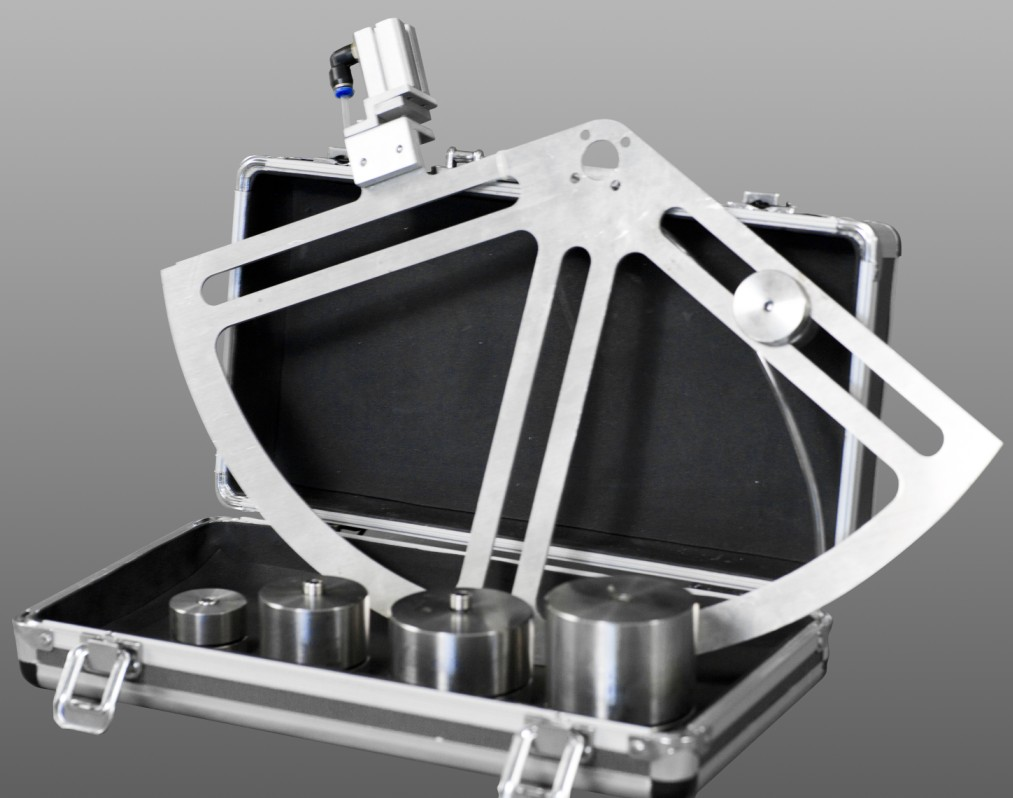

★Equipped with pendulums of multiple capacities


TEST PRINCIPLE

Lift the pendulum up to a certain height to give it an initial potential energy. The pendulum tears the specimen while swinging down. Computer calculates the decreased energy caused by tearing to obtain the required force for tearing.

MAIN SPECIFICATION
