Introduction:

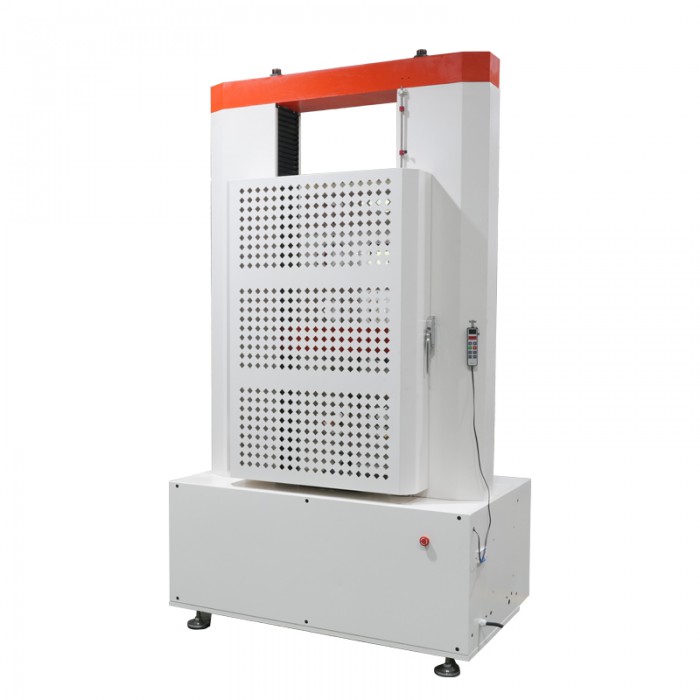

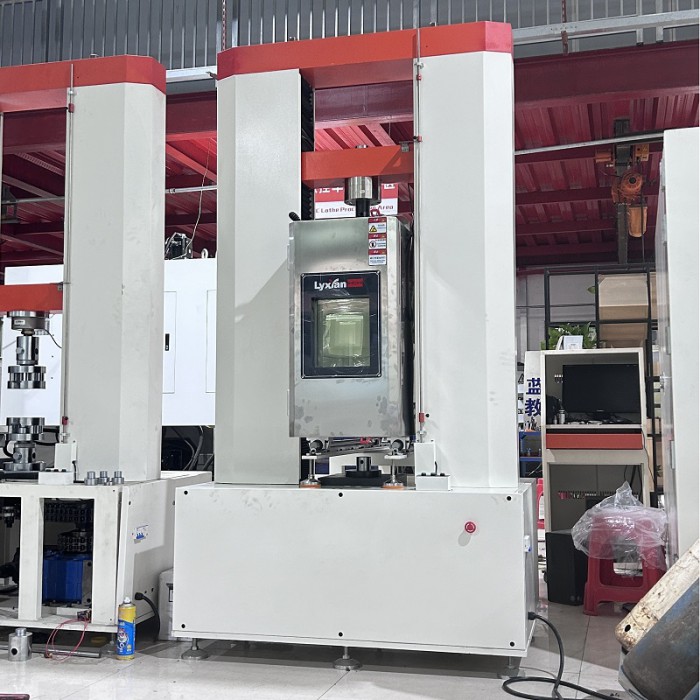

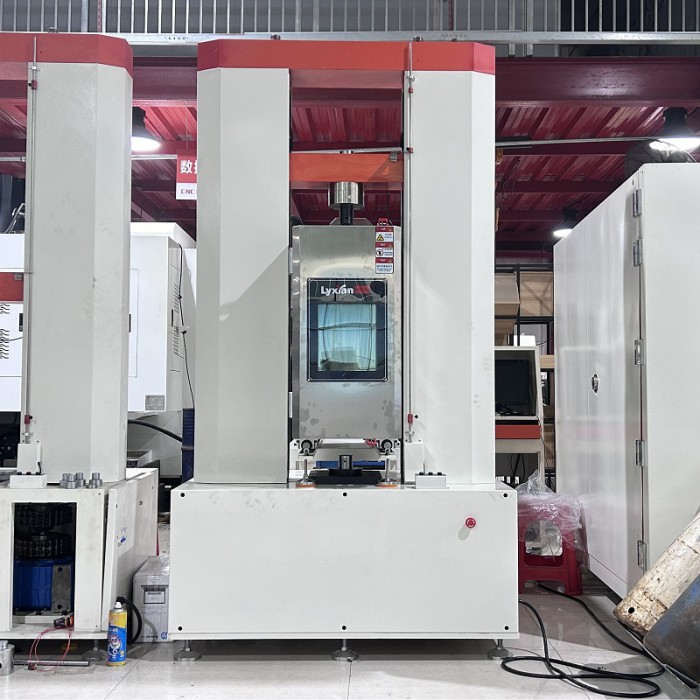

HZ-1001 ASTM E8 Computer Servo-type Metal Tensile Strength Testing Machines is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line.Main function:
Universal Testing Machines HZ-1001 mainly applied to test the force of metal materials in the high or low temperature environment, the force such as tension, compression, bending, shear, peel, tear or two-points extensions (need to add extensometer) and others, the material such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire.
Corresponding standard:
ASTM E8
Technical parameter:
| Model | HZ-1001 |
| Maximum load | 20ton |
| Accurate grade | 1 grade / 0.5 grade |
| Effective measuring range | 0.2%～100% (1 grade)/0.4%～100% (0.5 grade) |
| Measuring accuracy | Display the value ±1％/Display the value±0.5% |
| Tester resolution | Max load 1/200000 |
| Load sensor | Basic configuration: sensor (max load): one |
| Extended configuration: can add more sensors | |
| Effective testing width | 400mm (can be customized ) |
| Effective tensile space | 400, 500, 600mm (can be customized ) |
| Range of testing speed | 0.001～500mm/min |
| Accuracy of displacement measurement | Tolerance: ±0.5% / tolerance: ±0.2% |
| Deformation of measured system | Mix span: 10mm, Max range of deformation: 800mm |
| Accuracy of measured deformation | Tolerance: ±0.5% (according to customized ) |
| Safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow two speeds to control, can jog |
| Back to function of testing platform | Manual or automatic operation, after the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%, automatic protection |
| Fixture | According to customer's need |
| Machine size | 1040×590×2000mm ( length*width*height ) |
| Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply | 220V, 50HZ |
| Power | 0.75KW ( depending on different motor ) |
| Weight | (about) 500 Kg |
