Product Details

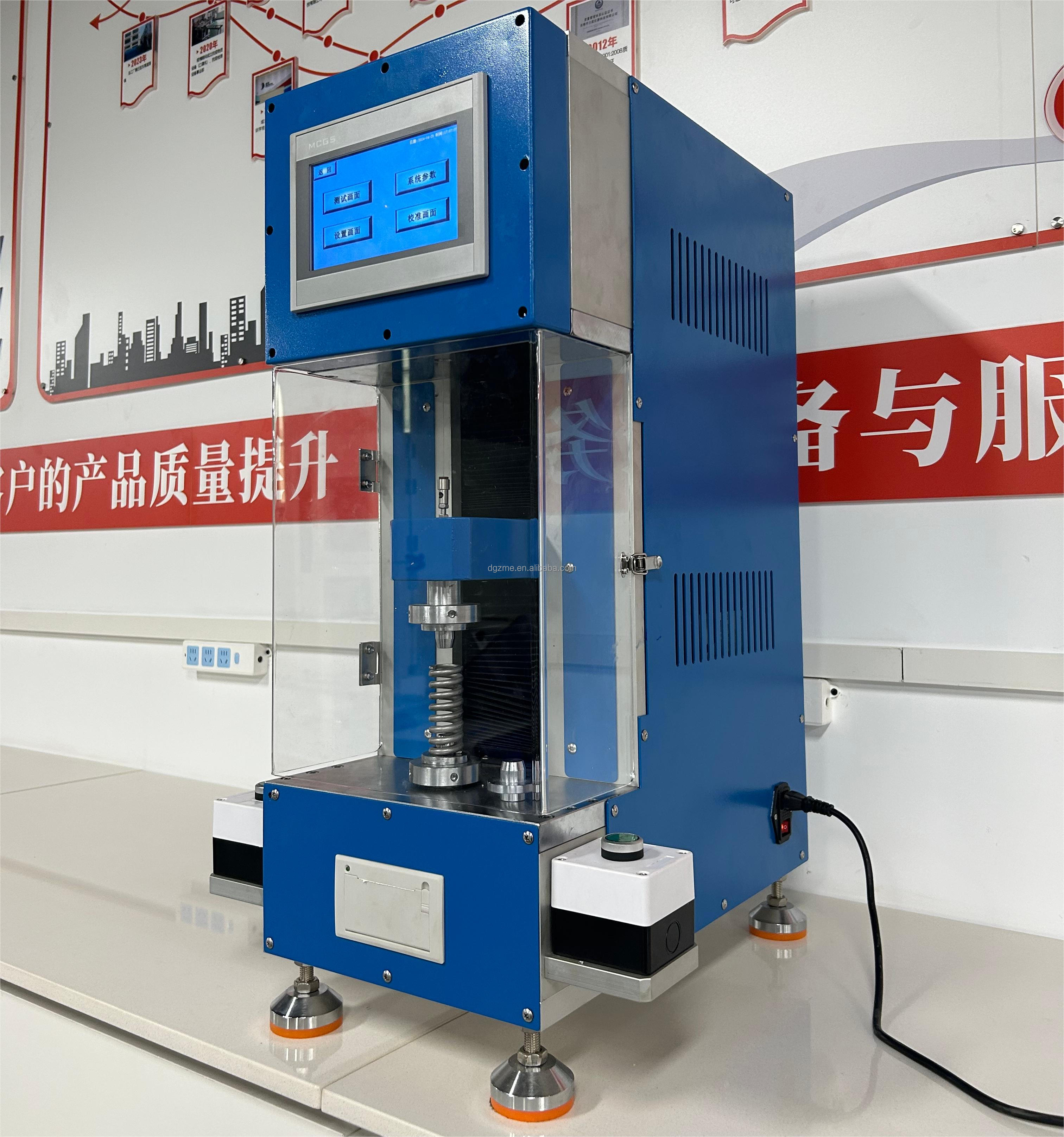

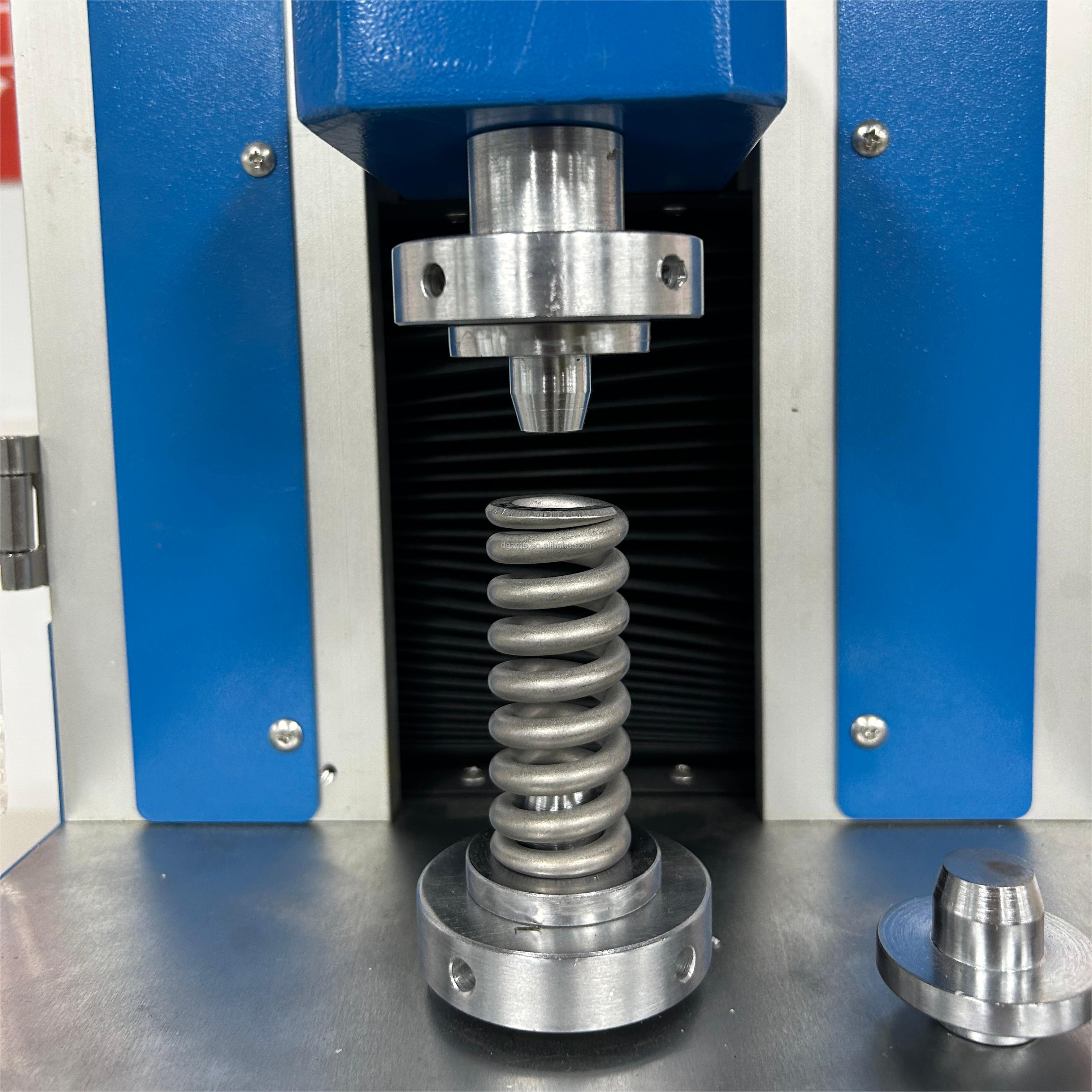

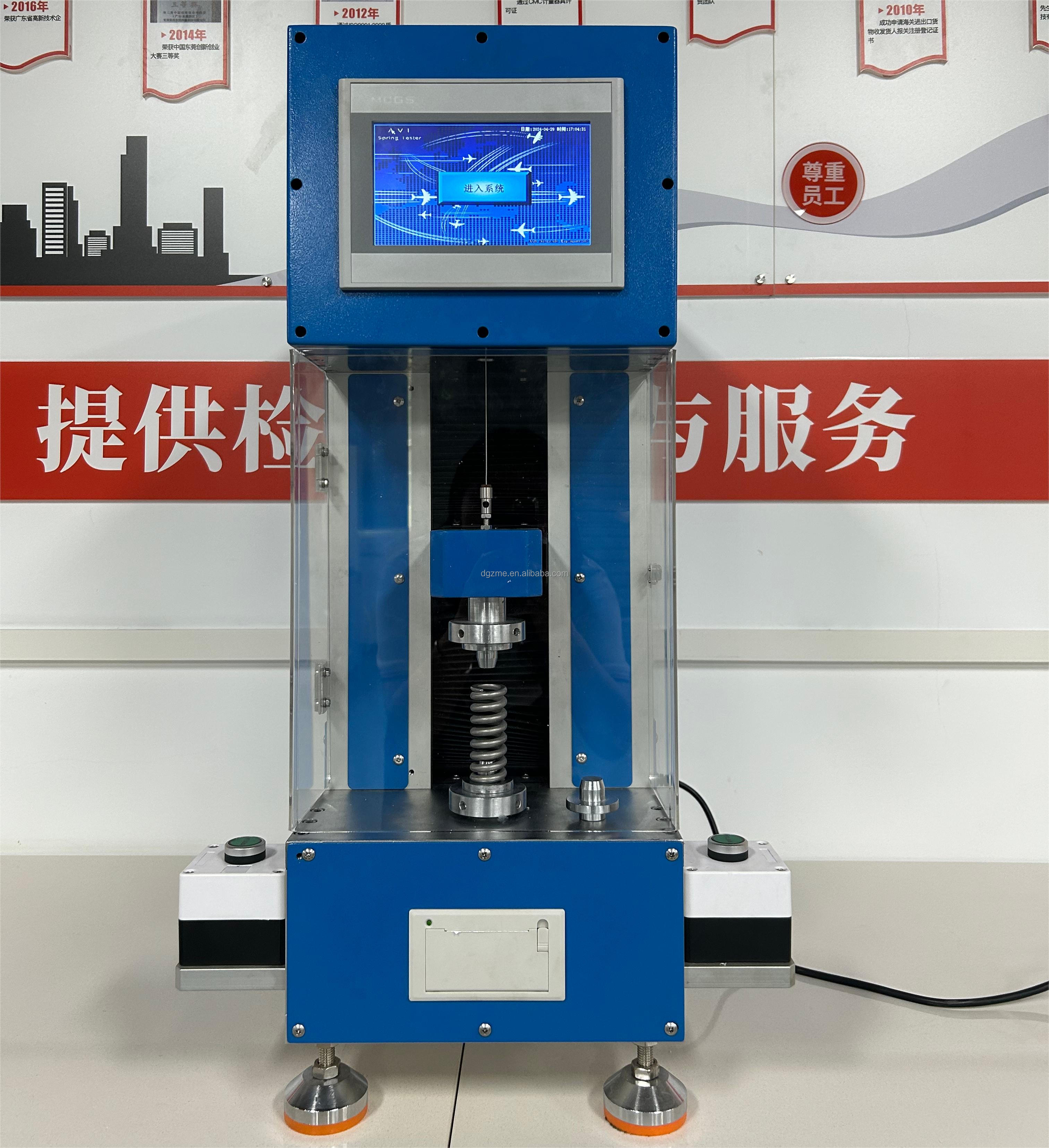

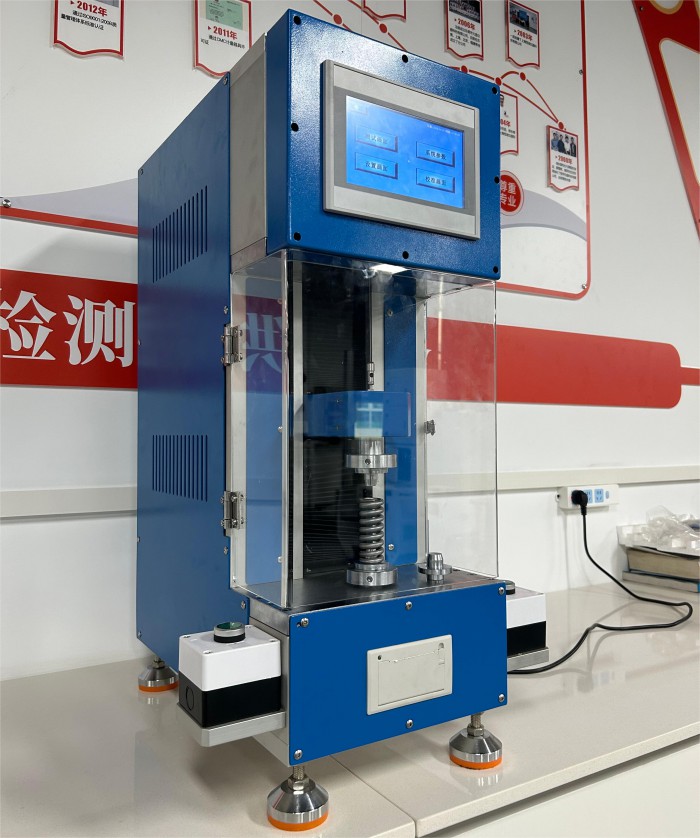

HZ-1003F Single Station Spring Pressure Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control. Rubber pad resilience Universal Testing Machine is easy to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line. Spring Pressure Testing Machine is mainly applied to test the Spring Pressure which the load is less than 2KN.

Specification

Model Number	HZ-1003F
Max Load	2 KN
Computer system	RealTest software control, Chinese and English
Measuring accuracy	0.5% (5% -100% of full scale)
Tester resolution	1/50000
Load sensor	Extended configuration:an add more sensors
Compression plate size	150*150mm
Effective tensile space	Approx. 500mm
Data sampling frequency	200times/sec

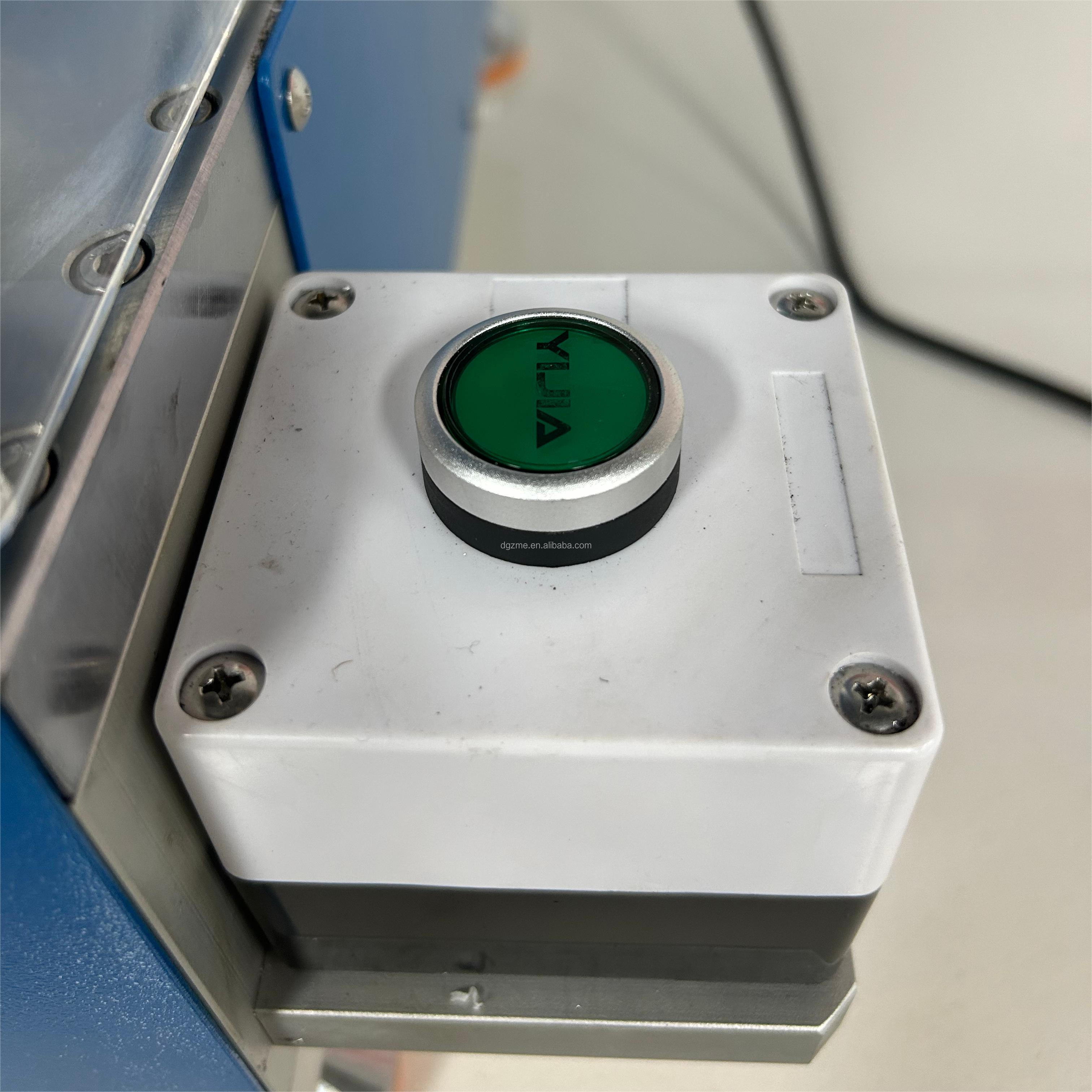

Safety device	overload, emergency stop
Power	750W; AC 220V single-phase

More machine types


HZ-1007A	HZ-1007C	HZ-1007E	HZ-1003E	HZ-1005B	HZ-1005A
Max Force:200kg	Max Force:200kg	Max Force:100kg	Max Force:500kg	Max Force:500kg	Max Force:500kg

HZ-1003A	HZ-1004A	HZ-1009A	HZ-1010A	HZ-1009C	HZ-1009B
Max Force:3T	Max Force:500kg	Max Force:10T	Max Force:3T	Max Force:10T	Max Force:30T
