Frequency conversion constant temperature and humidity compressor, use the frequency converter to change the pressure to output
power, set according to the needs of use Fixed temperature, cooling capacity can be adjusted, heating capacity can also be adjusted Adjustment, no need to cool and heat at the same time, greatly reducing energy consumption, so as to achieve the purpose
of saving electricity.
- Product Details
Product Description
Equipment Introduction

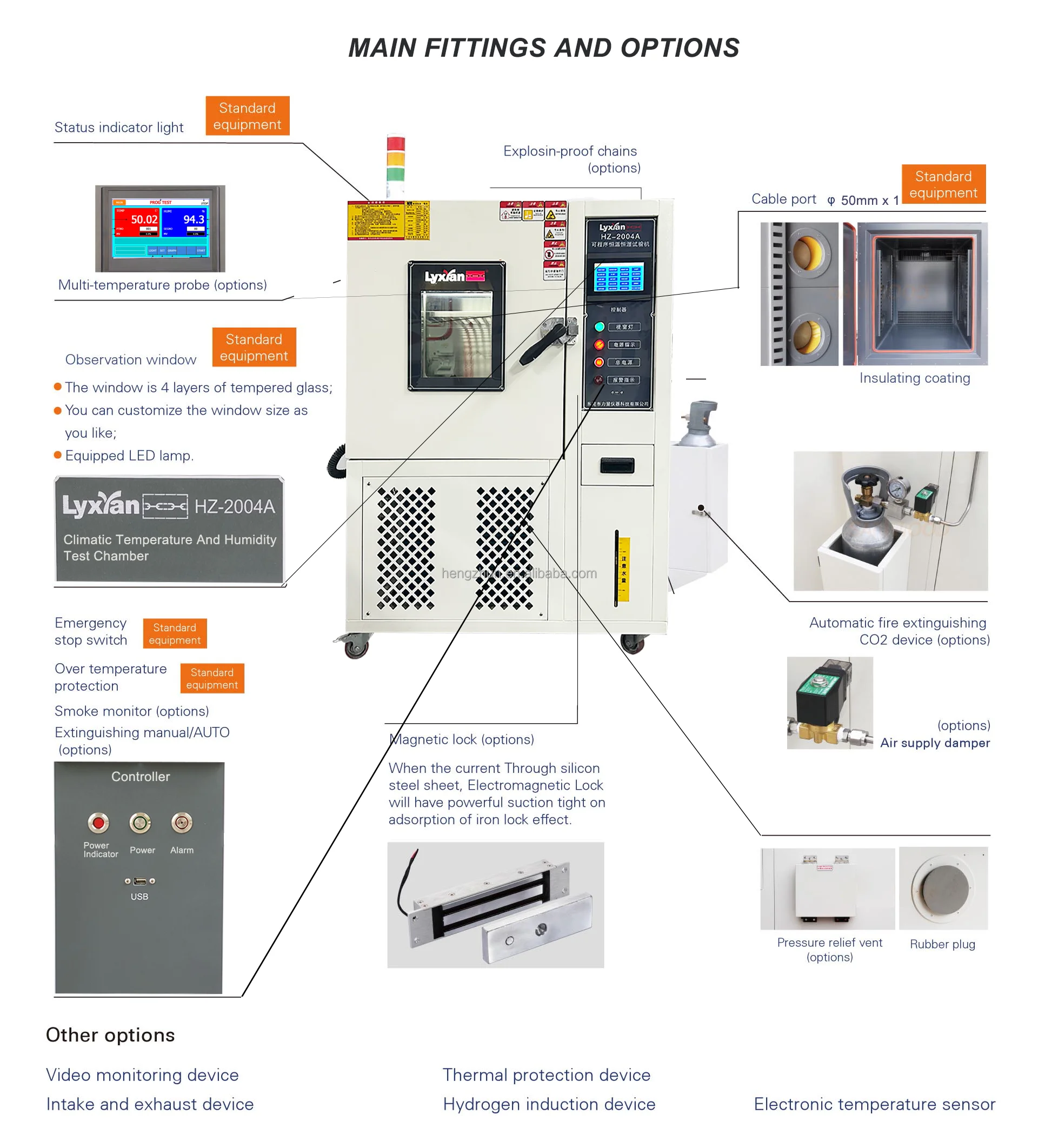

Plastic Constant temperature and humidity testing machine is suitable for the whole machine or large-scale parts to do the low temperature, high temperature, the change of high and low temperature, constant humidity and heating, high-low temperature alternating humidity and heating test. Provide large-scale parts,semi-finished product, finished product for Large-scale temperature and humidity testing environment space to industry. It is mainly composed of control panel,switchboard,moisturizing base plate blower, heating machine, humidity machine, refrigerator. And we also can design the chamber size and function according customers’ need. Block type enclosed cabinet,nice appearance, scientifical airduct design..
Plastic Constant temperature and humidity testing machine is suitable for the whole machine or large-scale parts to do the low temperature, high temperature, the change of high and low temperature, constant humidity and heating, high-low temperature alternating humidity and heating test. Provide large-scale parts,semi-finished product, finished product for Large-scale temperature and humidity testing environment space to industry. It is mainly composed of control panel,switchboard,moisturizing base plate blower, heating machine, humidity machine, refrigerator. And we also can design the chamber size and function according customers’ need. Block type enclosed cabinet,nice appearance, scientifical airduct design..
Features
1. Constant temperature and humidity testing machine with the function of widely temperature and humidity controlling range.
2. Apply special way to balance temperature and humidity, so that can reach the safety and accuracy temperature humidity environment. With the function of stable and balancing heating and humidity, can do high precision and stable temperature control.
3. Constant temperature machine equipped with PT100 and high precision and intelligent temperature controller, the digital displayed by touch-screen. Option: temperature and humidity recorder.
4. Constant temperature and humidity testing machine can automatically choose refrigerating circuit, the automatical control device with the function that can automatically choose the refrigerating circuit with the temperature setting, to reach directly turn on the refrigerator to cooling under the high temperature condition.
5. Constant temperature and humidity testing machine equipped with big view window, is convenient for observing the testing statue of testing sample
6. Constant temperature and humidity testing machine equipped with advanced safety and protective devices, including residual current circuit breaker, overtemperature protective device, open-phase protector, water protector.
1. Constant temperature and humidity testing machine with the function of widely temperature and humidity controlling range.
2. Apply special way to balance temperature and humidity, so that can reach the safety and accuracy temperature humidity environment. With the function of stable and balancing heating and humidity, can do high precision and stable temperature control.
3. Constant temperature machine equipped with PT100 and high precision and intelligent temperature controller, the digital displayed by touch-screen. Option: temperature and humidity recorder.
4. Constant temperature and humidity testing machine can automatically choose refrigerating circuit, the automatical control device with the function that can automatically choose the refrigerating circuit with the temperature setting, to reach directly turn on the refrigerator to cooling under the high temperature condition.
5. Constant temperature and humidity testing machine equipped with big view window, is convenient for observing the testing statue of testing sample
6. Constant temperature and humidity testing machine equipped with advanced safety and protective devices, including residual current circuit breaker, overtemperature protective device, open-phase protector, water protector.
Frequency conversion
Save Energy
1.DC frequency conversion technology 2.Controller independent innovation Energy 3.saving and power saving: power saving between 30% and 50%.
Programmable constant temperature and humidity testing machine
Plastic Constant Humidity Temperature Chamber is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
Application
It suitable for the national defence industry, aerospace industry, automatic parts, auto parts, electric part, luggage and bag, Electronic chip, Mobile phone, plastic and rubber, chemical engineering, medicine industry, institutions to do the heating resistant and cold resistant.
It suitable for the national defence industry, aerospace industry, automatic parts, auto parts, electric part, luggage and bag, Electronic chip, Mobile phone, plastic and rubber, chemical engineering, medicine industry, institutions to do the heating resistant and cold resistant.
Detailed Parameters
| Model | HZ-80 (A~G) | HZ-150 (A~G) | HZ-225 (A~G) | HZ-408 (A~G) | HZ-608 (A~G) | HZ-800 (A~G) | HZ-1000 (A~G) |
| Inside size W*H*D(cm) | 40x50x40 | 50x60x50 | 50x75x60 | 60x85x80 | 80x95x80 | 100x100x80 | 100x100x100 |
| Outside size W*H*D(cm) | 90x136x94 | 100x146x104 | 100x161x117 | 110x171x137 | 130x181x137 | 150x186x137 | 150x186x157 |
| Temperature Range | -70℃~+100℃(150℃) (A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃) | ||||||
| Humidity Range | 20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition） | ||||||
| Accuracy/ Uniformly | ±0.1℃；±0.1%R.H./ ±1.0℃；±3.0%R.H. | ||||||
| Accuracy / Volatility | ±1.0℃；±2.0%R.H./ ±0.5℃；±2.0%R.H. | ||||||
| Heating / Cooling Time | About 4.0℃/min；about 1.0℃/min（5~10℃/mm is the specific condition） | ||||||
| Inside Material | Stainless steel SUS 304# | ||||||
| Insulation Material | High-temperature high-density amino acid ethyl ester foam insulation materials, | ||||||
| Cooling System | Air-cooled/ single-stage compressor(-20℃) ，wind, water cooled/two-stage compressor(-40℃~-70℃) | ||||||
| Protection | Compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system | ||||||
| Accessories | Recorder(purchase)、view window、50mm testing hole、PL lamp、clapboard、Dry and wet gauze ball | ||||||
| Controller | TEMI880 touch screen controller from South Korea,"Weilun" from Taiwan | ||||||
