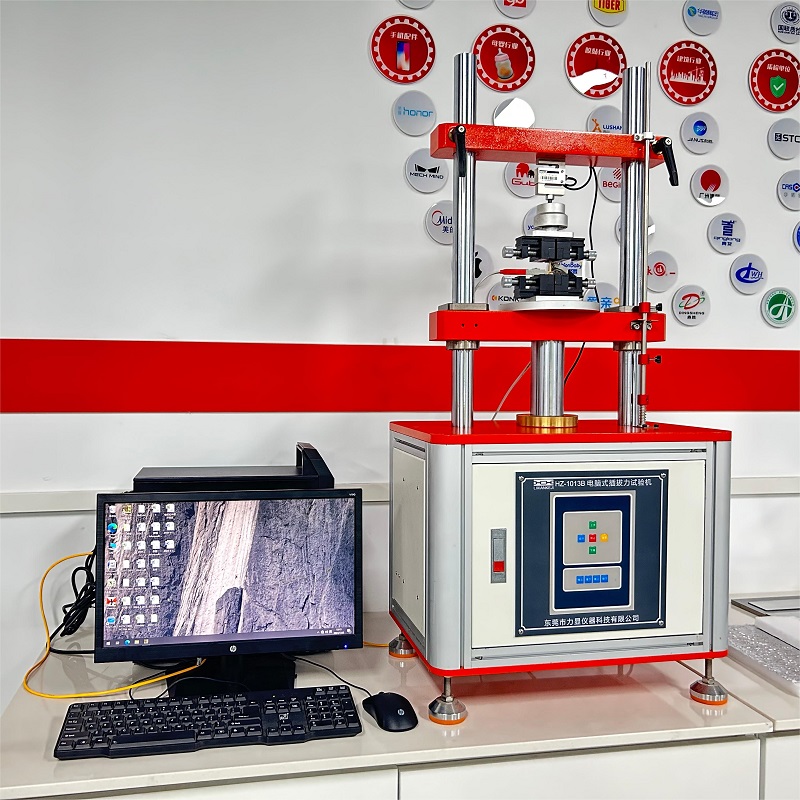

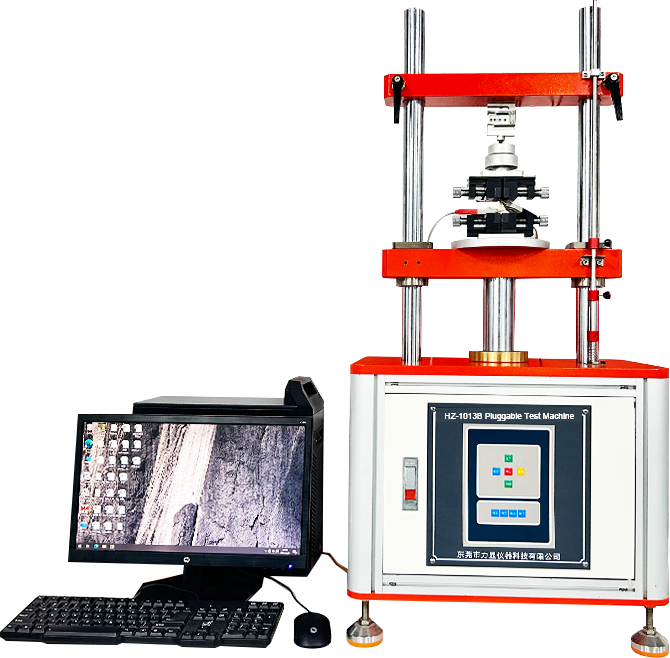

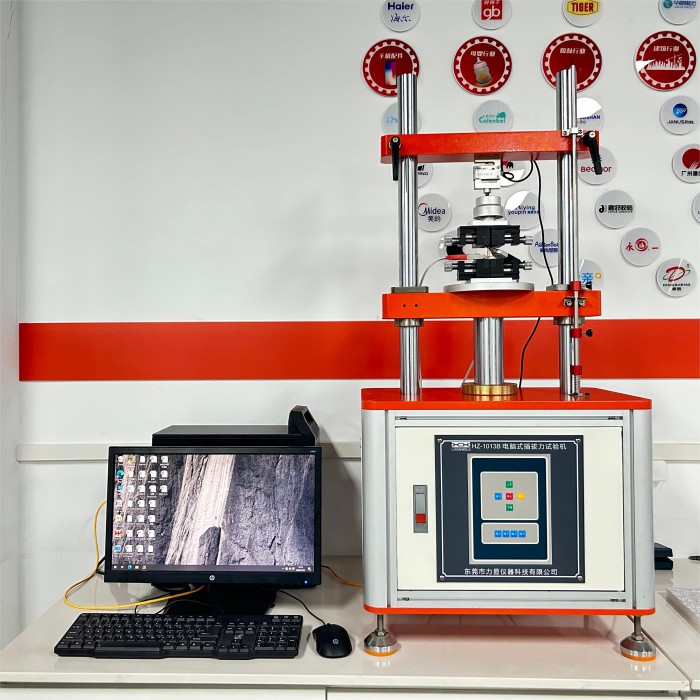

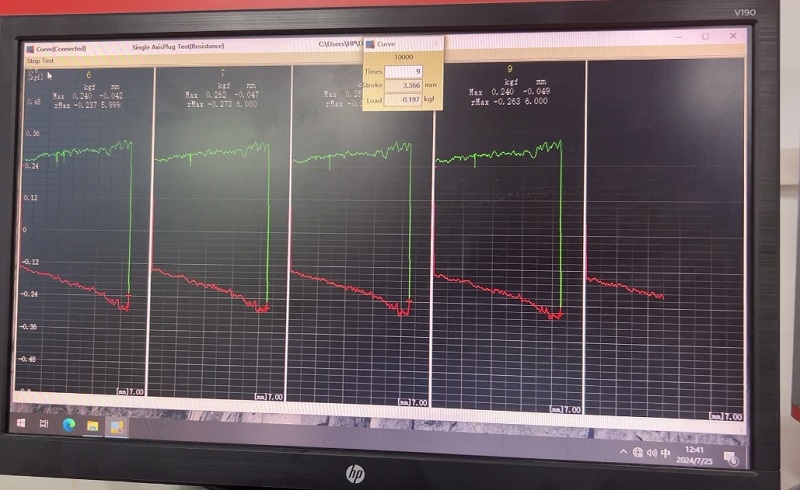

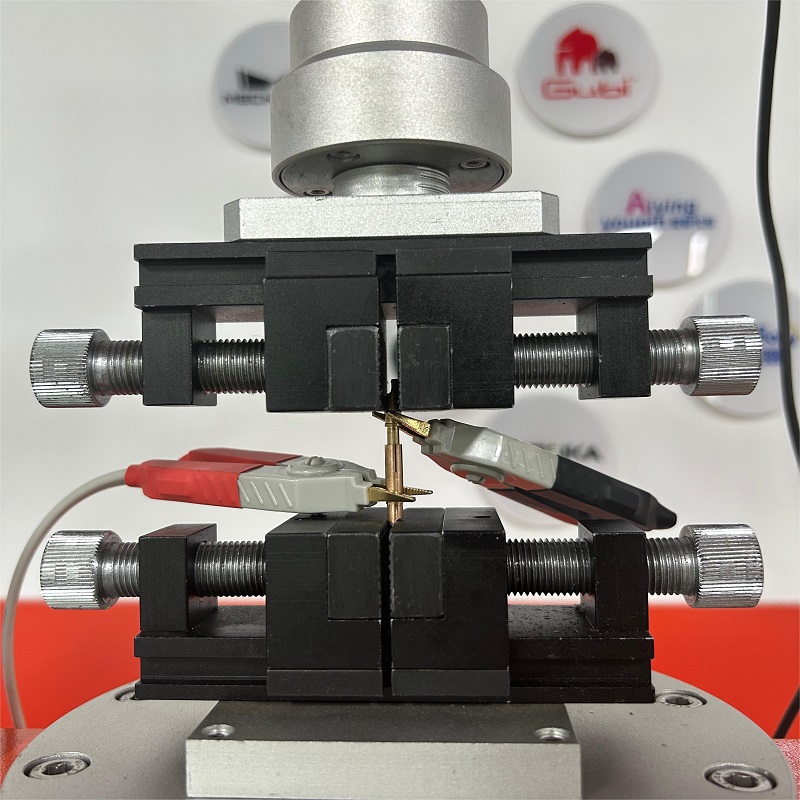

The insertion and extraction force testing machine is suitable for testing the insertion and extraction force of various connectors. With the automatic centering device designed by Zhuli, a completely accurate insertion and extraction force test can be obtained. Using WINDOWS, the Chinese screen setting and operation of the window Simple and convenient, and all data can be stored (test conditions, displacement curves, life curves, inspection reports...etc.)

Application industries:

Computerized plug-in force tester is widely used in wires and cables, hardware, electronic appliances, packaging and printing, medical equipment, auto parts, textiles and leather, clothing and footwear, rubber and plastic products, colleges and universities; scientific research laboratories; commodity inspection and arbitration, technical supervision departments and other industries. It is a basic equipment for quality management and physical property testing.

Technical parameters:

Model Number	HZ-1013B
Effective test space	About 300mm
Maximum Load	50KG USA World Civil precision sensors
Capacity choice	1kg, 5KG, 10KG, 20KG, 50KG or less may be self-selected
Force measuring range	1/200000
Accuracy class	Class 0.5
Work rate	400W
Test speed	1~150mm/min, adjustable
Data sampling frequency	200times/sec
Volume	520*360*1100mm(L*W*H)
Delivery	in stock and prompt ship
