Equipment summary:

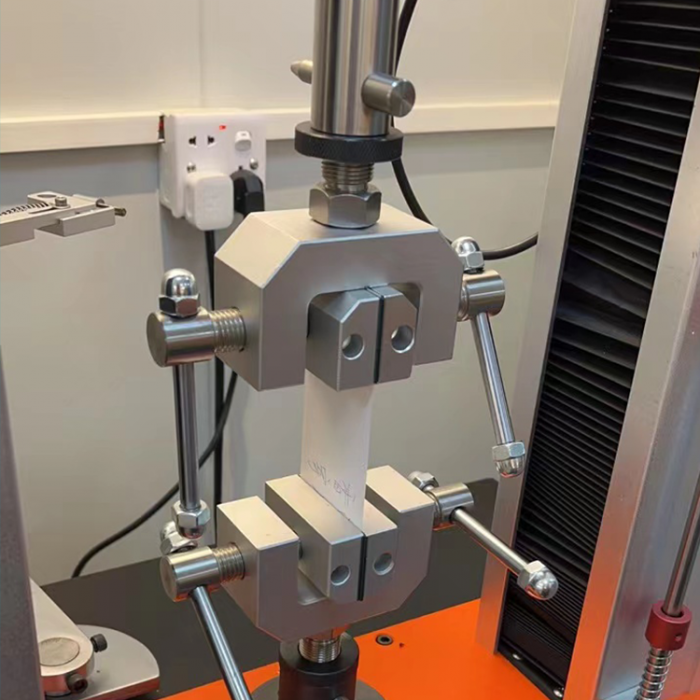

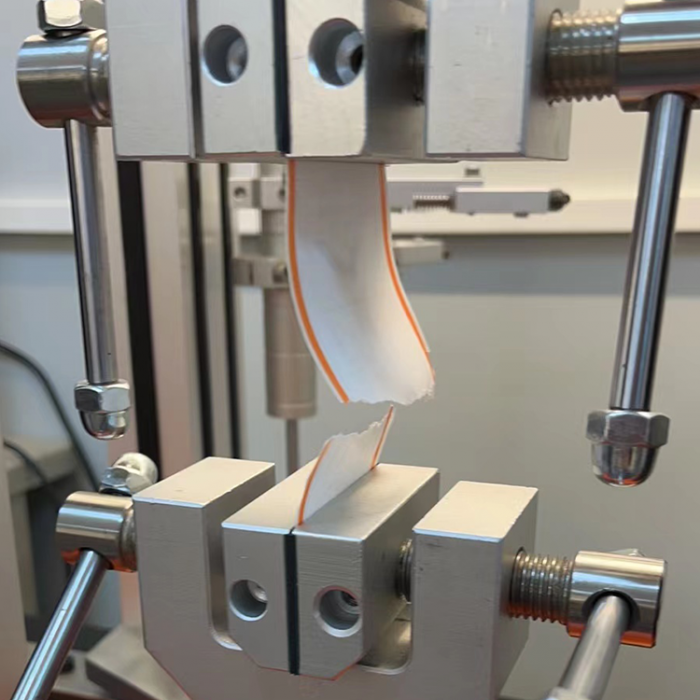

The tape film peel strength tester is suitable for rubber, plastic, leather, metal and other materials. It can complete tensile, tearing, bonding strength, peeling and other tests. It is equipped with a large deformation extensometer specially used to measure the deformation of the sample. It is suitable for mechanical properties testing of materials with large deformation.
Technical parameters:
| Model | HZ-1003A Tape peeling tensile testing machine |
| Max load | 20KN |
| Accuracy | 0.5grade |
| Effective force range | 0.4％～100％ (0.5grade) |
| Resolution | 1/200000 |
| Load cell | Basic configuration：one piece( max load) |
| Enlarge configuration：can be increased extra laod cell | |
| Effective test width | 390mm (can be enlarge as customer request) |
| Effective Tensile stroke | 800mm (can be enlarge as client request) |
| Test speed | 0.01～500mm/min |
| accuracy of displacement | ≤0.5％ |
| Test bench safety device | Electronic-limit protection |
| Test bench lifting device | Fast /slow ( two speeds to control), can jog |
| Overload protection | Overload 10%, automatic protection |
| Fixture | One set of standard tensile grip |
| Dimentions | 870*540*2200mm(L*W*H) |
| Drive system | Taiwan “Delta” AC servo motor +drive+High precision ball screw |
| Power supply | 220V, 50HZ |
| Power | 0.4KW |
| Weight | About 300 Kg |
Specifications:
1.Computer Servo Type Universal Testing Machine
A. High-precision sensor 1ton from the U.S.A. Accurate Forces within ± 0.5%.
B. High-precision 24 bits A / D, sampling frequency 200Hz
C. Power System: Panasonic AC Servo Motor + Driver + CAVEX + precision ball screw
D. Control System: it is more precise using Pulse Command control modem, the range in speed control is 0.01 ~ 250 mm / min.the board of iron can be adjusted to fast and slow by the control board. it is automatically saved after testing.
E. Data transmission: RS232 Transfer
F. Display: Windows XP test software.
G. easy to control five-speed and calibration system.
H. test software can precision control in position, speed, rate of load force and rate of stress, satisfy the different requirements of test.
I. Test space: Testing width is about 400 mm (standard), moving space of active iron 1000mm (excluding fixtures)
J. displacement: coder 2500 P / R, increase four-time accuracy. adopt Japanese Lejing coder that has strong anti-jamming capability, displacement resolution 0.001mm.
Small deformation: Metal extensometers, parsing 0.001mm.
K. Safe equipment: the system would shut down if overload or over-trip
2. items can be tested in the Computer Servo Type Universal Testing Machine
Common items: ( display data and calculation )
● tensile stress ● tensile strength
● tensile strength ● rate of elongation at break
● fixed stress ● rate of stress at break
● stress strength ● tear strength
● the value of force at any point ●rate of elongation at any point
● pull-out strength ● force of adhesion and value of peak
