- Product Details
Heat Aging Test Chamber is equipped with hot air circulatory control system which to ensure uniform distribution of temperature. 200 Celsius CNS-3556 Standard Water Meter Materials Hot Aging Test Chamber Equipment is to promote the deterioration of vulcanite, and then to calculate the change rate of tensile and elongation. This testing machine is equipped with hot air circulatory control system which to ensure uniform distribution of temperature. Generally consider being tested 24H in the 70 degree is theoretically equal to 6 months exposed at the outside atmosphere.
Corresponding Standard
CNS-3556、JIS-K6301、
Applicable Industries:
It is widely used in paint, resins, plastics, printing and packaging, aluminum, adhesives, auto, cosmetics, metals, electronics, electroplating, medicine, etc.
Techincal Parameter
| Model | HZ-2009B |
| Inside size | 400*400*500mm; 500*500*600mm(L*W*H) |
| Outside size | 600*550*750mm; 700*650*900mm(L*W*H) |
| Temperature range | RT~200°C (or customized) |
| Control | P.I.D. Automatic temperature calculation |
| Temperature resolution | 0.1°C |
| Control accuracy | ±0.3 °C |
| Distribution accuracy | 1°C (at 00°C) |
| Timer | 0~999.9H, memory-type with buzzer |

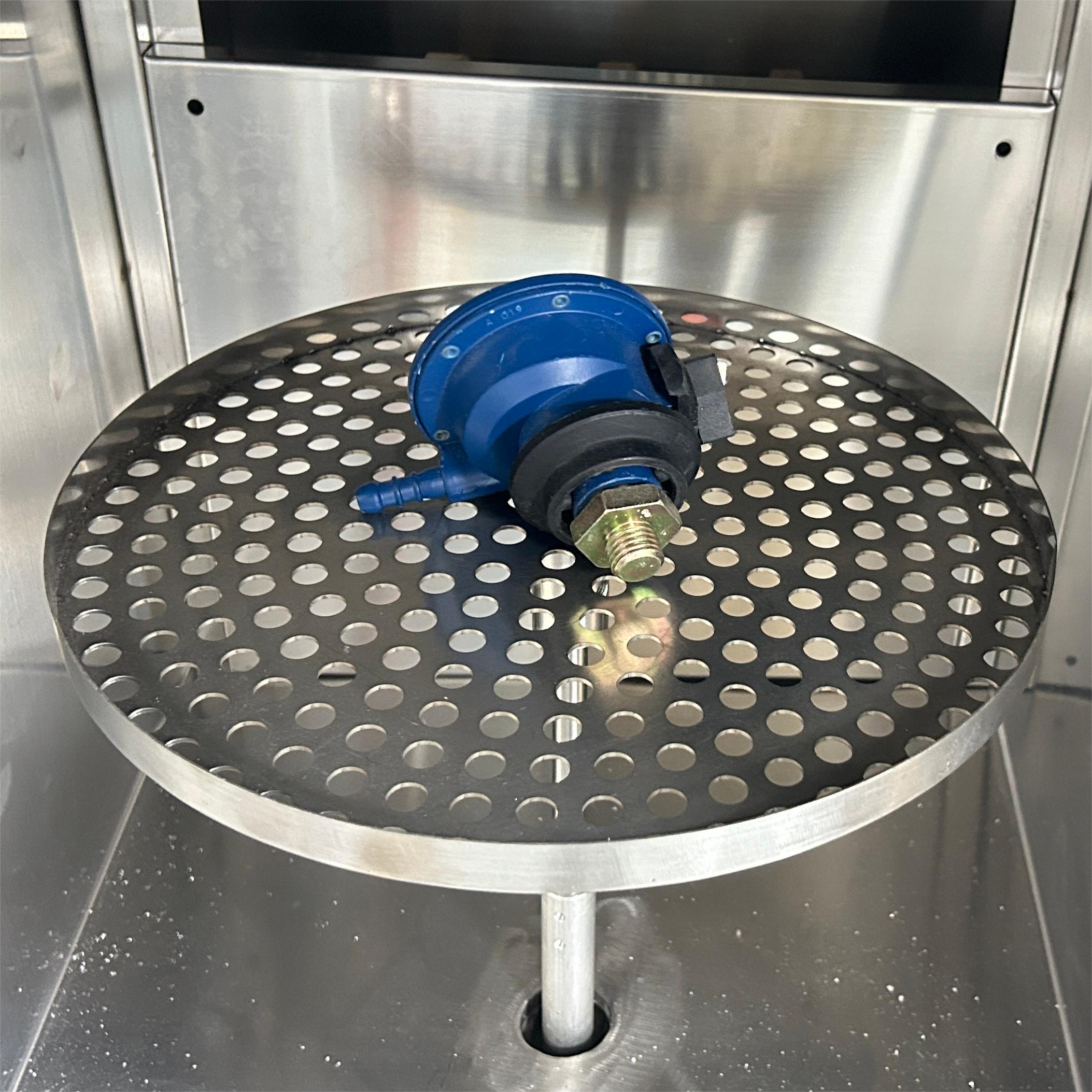

| Turntable | Double-floor and the high is adjustable, 10 R.P.M |
| Standard fitting | Slab 2 piece, view window |
| Heating | hot wind loop |
| Protection | EGO over-temperature shut down, overload switch |
| Inside material | SUS#304 stainless steel |
| Outside material | Cold plate handled with powder paint |
| Power | AC 220V, 50Hz 10A |
