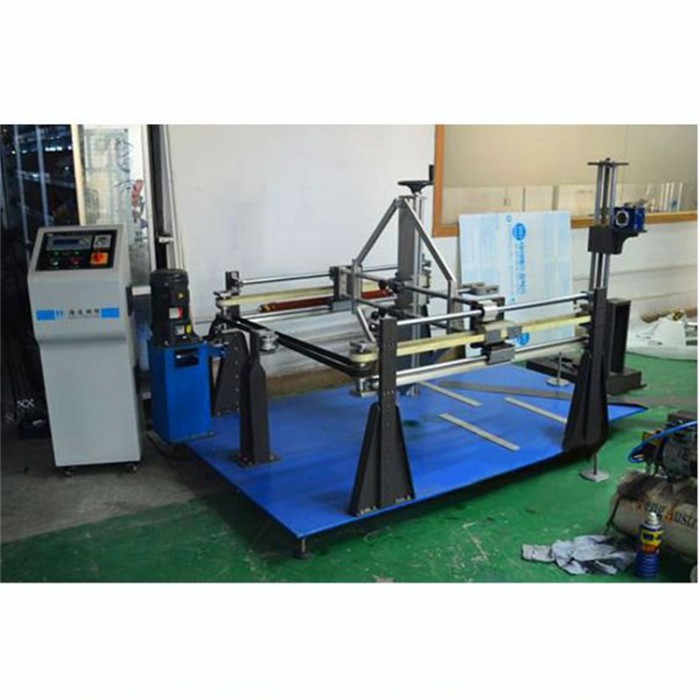

Swivel casters static test main function:

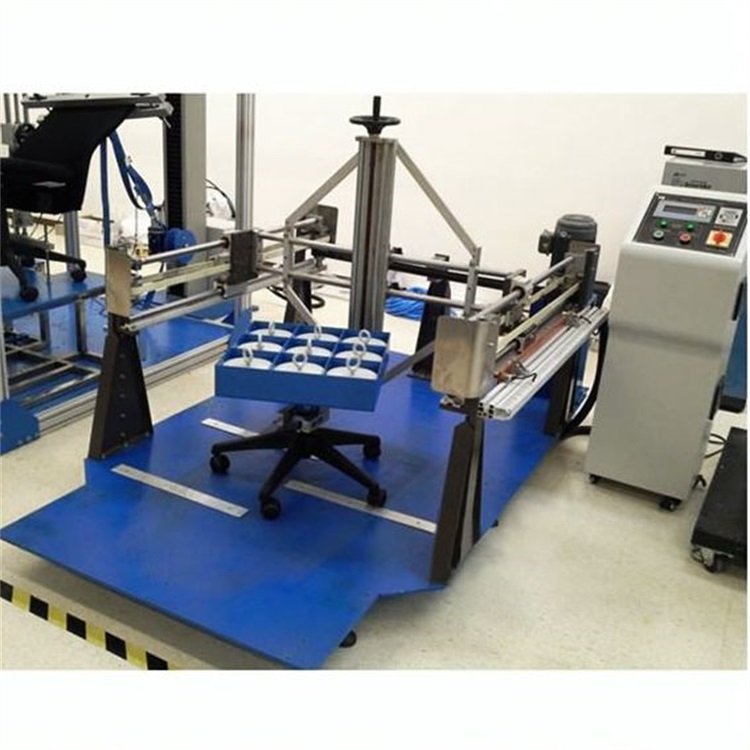

This machine is suitable for all wheel chair with castors or office chair, fatigue, stress and wear Proficiency Assessment casters and chair frame to withstand the chair moving back and forth caused. Place the seat surface weight (113 kg), the holding fixture with motor and belt drive to make office chair or chair frame for movement back and forth back and forth, in order to assess the wear life casters, stroke, speed and frequency can be set. Standard: Caster Bifma x 5.1 clause 17 chairs with foot / chair frame durability test

Main technical parameters:

1, drive mode: frequency conversion motor and belt

2, stroke: 762mm (+ 50 mm)

3, rate: 8 to 12 times / min

4, with the upper and lower clamping regulation range: 80mm ~ 500mm

5, control mode: PLC and large LCD display

6, the starting point of self-adjusting

7, voltage: 220V single phase, 900W Accessories: loading dock a point within the weight 23 kg  9 equal portions, each grid place a 10 kg weight within the weight, the overall weight is equal to 113 kg.

8, the base block may be removed obstacles to smooth the surface of the test block accessibility

Do not use the instrument in the following situations:

1, vibration, rocking occasions.
2, out of direct sunlight.
3, hot, dusty, humid places.
4, AC power supply of the machine should be well grounded, to ensure safe use.
5, Do not use strong solvents (such as: benzene, nitro oil) enough to be cleaned.
6, shall be injected into the local water and debris to prevent damage to electrical components and electrical shock margin.
7, disassembly and debugging machine inside the instrument display can only measure approved by the state Department Station units and the company responsible, others are not allowed to overhaul.
