- Product Details

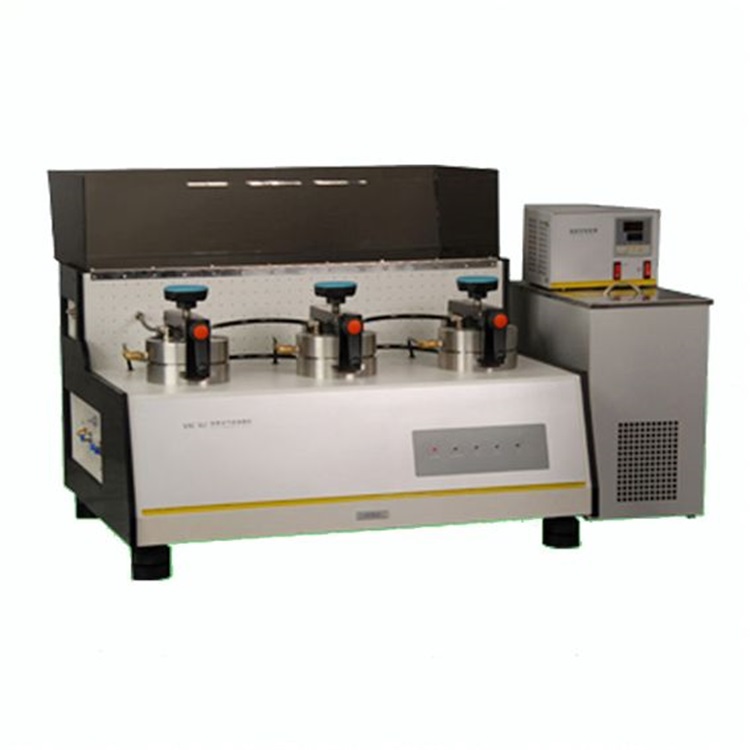

Product summary:
Applied to plastic film, composite membrane, sheet material of the gas permeability, solubility coefficient, diffusion coefficient, the permeability coefficient is determined in all kinds of temperature.
Executive standard:
ASTM D1434、ISO 2556、ISO 15105-1、JIS K7126-A、YBB 00082003
Technical parameters:
| Model: | HZ-1907B |
| Test range: | 0.01 ～ 50,000 cm3/m2·24h·0.1MPa（routine）；toplimit not less than 500,000 cm3/m2·24h·0.1MPa (expanded volume) |
| Temperature control range: | 5～75℃ |
| Temperature control accuracy: | ±0.1℃ |
| Vacuum precision: | 0.1Pa |
| Test chamber vacuum degree: | <20Pa |
| Test gas: | O2，N2，CO2 and so on |
| Test pressure: | -0.1MPa～+0.1Mpa |
| Air source pressure: | 0.6MPa≤P≤0.8MPa |
| Sample size: | Φ97mm |
| Sample quantity | 0.01 ～ 50,000 cm3/m2·24h·0.1MPa（routine）；toplimit not less than 500,000 cm3/m2·24h·0.1MPa (expanded volume) |
| Through the area: | 38.46cm2 |
| Dimension of frame: | 760mm(L)×575mm(B)×450mm(H) |
| Power: | AC 220V 50Hz |
| Weight: | 88kg |
Product feature:
· Differential pressure principle, ISO, ASTM standard compatible world
· Three cavity independent testing, issued by the chamber can be independent data, combination cavity, statistical average value
· The highest accuracy and high vacuum in the global, data third party justly and objectively
· With temperature control device for 5 ~ 75 ℃ temperature range any through tests
· The world famous components, performance is stable and reliable
·Conventional, non-standard double test pattern choice
·Super software support, solubility, diffusion, osmosis coefficient to be automatic calculation, Excel format conversion, graphics display
·Permeability is diffusion coefficient, dissolved coefficient,, the permeability coefficient, any conditions fitting function, the only global
·Can easily get-273 ℃ ~ + 200 ℃ the permeability of the materials, air coefficient, solubility coefficient and diffusion coefficient
·The test operation intelligent, test process all automation
·Equipment performance high stability, can uninterrupted operation, test efficiency more improved
·Data repeatability better, artificial operation small error
·Low of system error blank test, overall performance is better than similar products at home and abroad
·Reference diaphragm calibration, operation easy and simple
