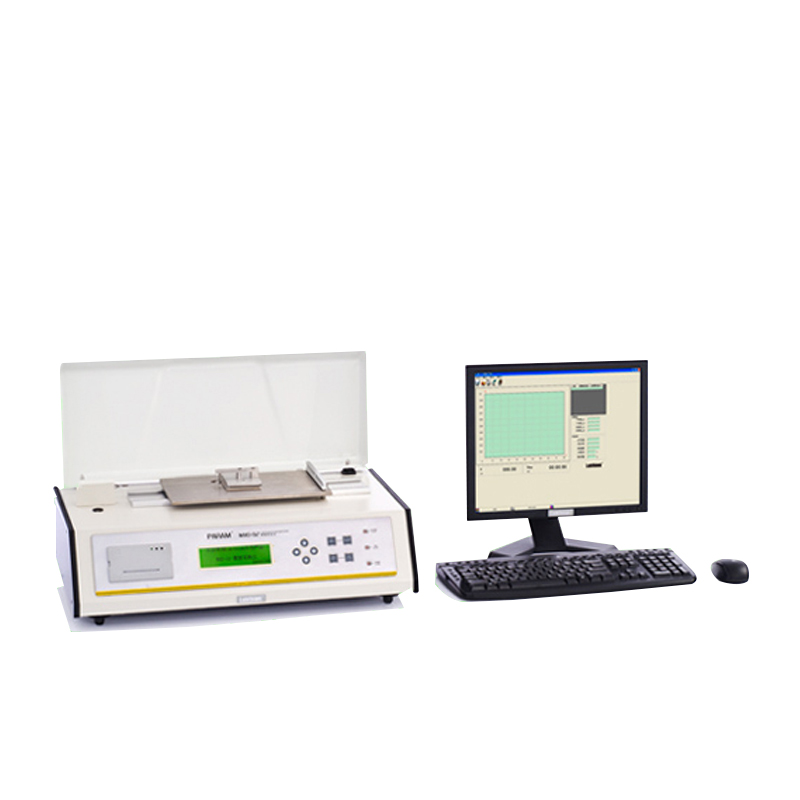

Coefficient of Friction Tester is designed for static and kinetic coefficient of friction tests of plastic films, sheets, rubber, paper, PP woven bags, fabric style, metal-plastic composite strips/belts for communication cable, conveyor belts, wood, coatings, brake pads, windshield wipers, shoe materials and tyres, and etc. With the material smoothness testing, users can control and adjust material quality technical indexes to meet application demands. Besides, this tester is applicable to the smoothness measurement of cosmetics, eye drop and other daily chemistry.
Test standards:
ISO 8295,ASTM D 1894,TAPPI T816
Technical Specifications
Items | Specifications |
Capacity Range | 0 ~ 5 N |
Accuracy | 0.5% of Reading Value |
Stroke | 70 mm, 150 mm |
Mass of Sled | 200g (Standard) |
Sled of specific weight could be customized | |
Test Speed | 100 mm/min, 150 mm/min |
Test speed could be adjusted | |
Environment Condition | Temperature: 23±2°C |
Humidity: 20%RH ~ 70%RH | |
Power Supply | AC 220V 50Hz |
Instrument Size | 630 mm(L) x 360 mm(W) x 230 mm(H) |
Net Weight | 33 kg |
