Overview

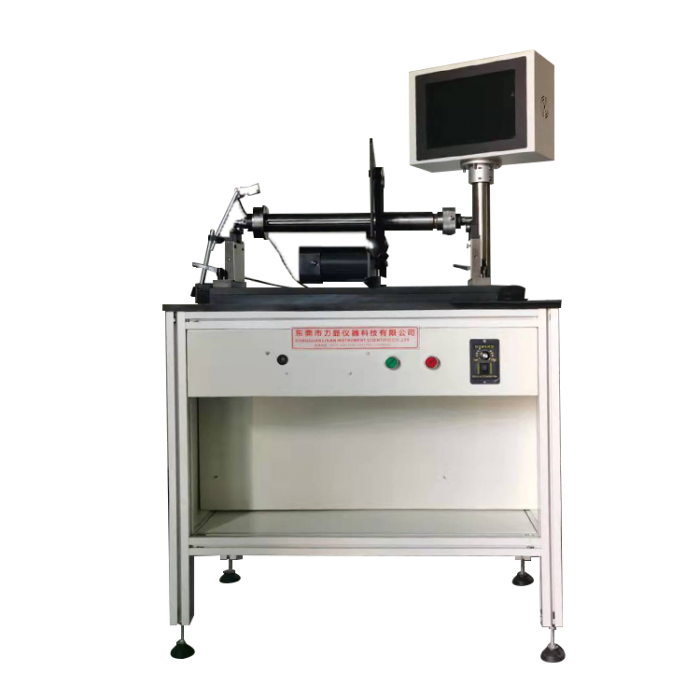

The balancing machine is an instrument used to determine the unbalance of the rotor. The balancing machine is a hard-supported balancing machine. The swing frame is very rigid. The measurement result of the dynamic balancing machine is used to correct the unbalance of the rotor, so that the vibration generated when the rotor rotates or acts on the vibration on the bearing is reduced to the allowable range to achieve the purpose of reducing vibration, improving performance and improving product quality.

Range of Application

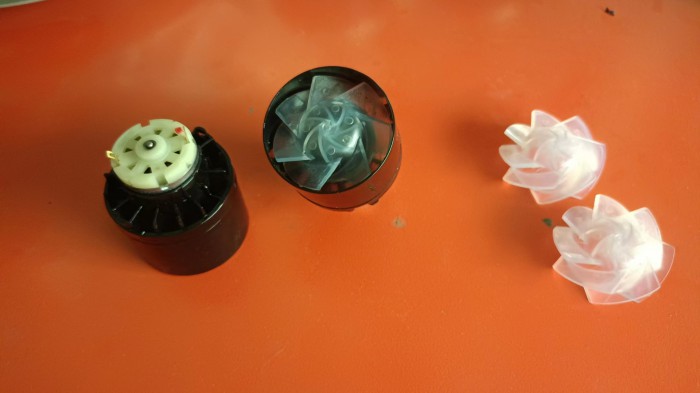

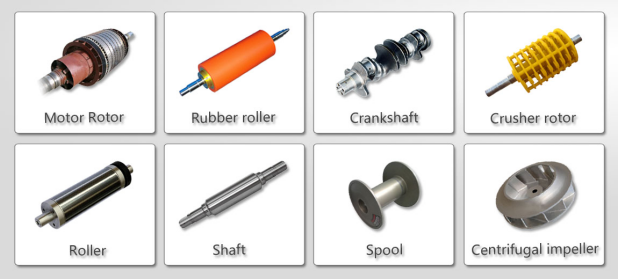

This balancing machine is widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency  .

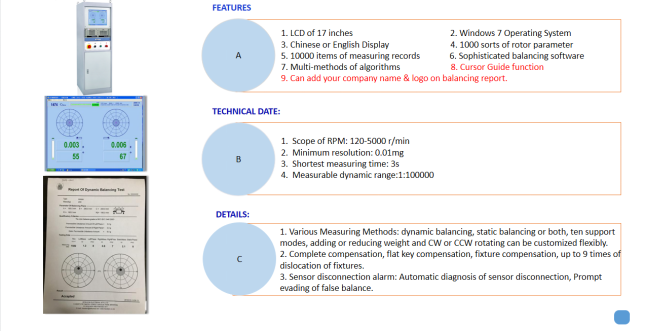

Control System

Application

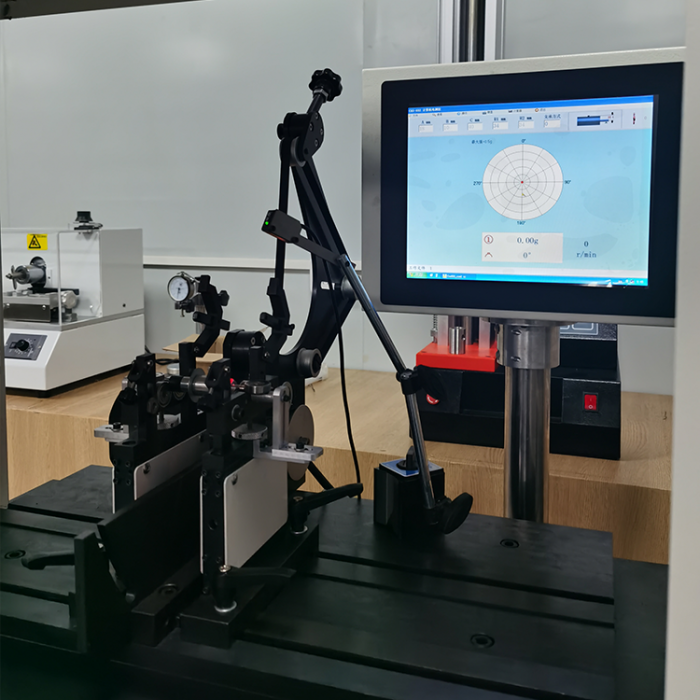

It is mainly a hard-bearing balancing machine that combines high-precision mechanical parts and advanced electrical parts. This series of products is one of the single-sided vertical hard-bearing balancing machines developed, designed and manufactured by our company based on the core technology at home and abroad. , Is currently the internationally advanced model, applied to all kinds of rotating workpieces, such as: brake discs, clutches, brake drums, water pump impellers, flywheels, gears, pulleys, flanges, fan impellers, saw blades, tools, grinding wheels , Balance detection and correction of traction wheels and other parts.

This machine is equipped with special fixtures and it is convenient to install. Its characteristics have the advantages of high precision, high efficiency, convenient operation, intuitive display, rapid measurement, stable performance, and the use of frequency conversion speed control device to control the speed.

The electromechanical measurement system can be equipped with a microcomputer digital display measurement system or a computer measurement system.

Features

1.The professionally designed swing frame can effectively transmit mechanical force, is sturdy and reliable, has low vibration resistance and good rigidity;

2.High sensitivity sensor, good linearity, durable and reliable;

3. Permanent calibration measurement principle, high accuracy, allowing extremely high initial imbalance;

4. Equipped with special fixtures, with higher accuracy and easier clamping;

5. Advanced electrical measurement system, friendly man-machine interface, complete functions

Technical Parameters
