Equipment Overview

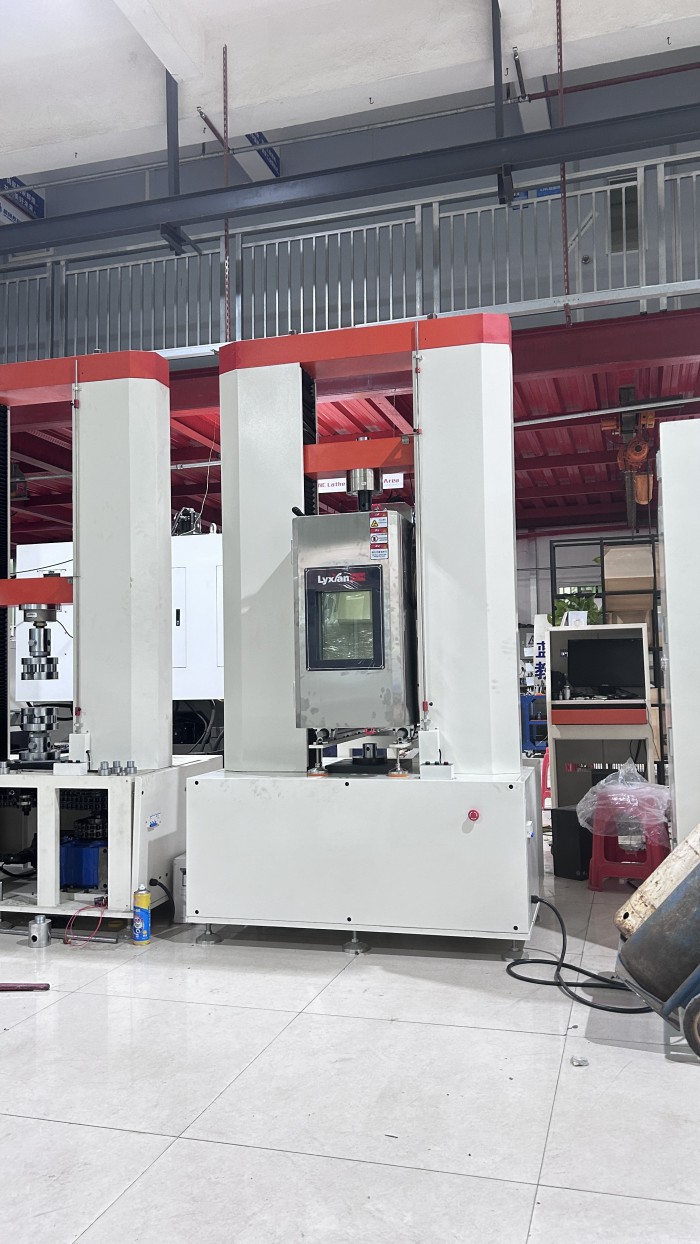

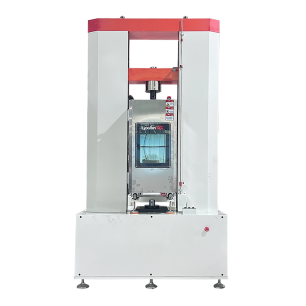

HZ-1001C computer servo high temperature universal material testing machine is a new type of material testing machine that combines electronic technology with mechanical transmission. It has a wide and accurate loading speed and force measurement range, has high accuracy and sensitivity in measuring and controlling load and displacement, and can also perform automatic control tests of constant speed loading and constant speed displacement. It is simple and convenient to operate, and is especially suitable for testing instruments to control product quality on production lines
Features
It uses imported photoelectric encoders for displacement measurement, and the controller uses an embedded single-chip microcomputer structure with built-in powerful measurement and control software, integrating measurement, control, calculation, and storage functions. It has the functions of automatically calculating stress, elongation (extensometer is required), tensile strength, and elastic modulus, and automatically counting the results; it automatically records the force value or elongation at the maximum point, breaking point, and specified point; it uses a computer to dynamically display the test process and test curves, and performs data processing. After the test, the curve can be enlarged through the graphic processing module for data re-analysis and editing, and reports can be printed. The product performance has reached the international advanced level.
Main functions
It is mainly suitable for testing metal and non-metal materials, such as rubber, plastic, wire and cable, optical fiber cable, safety belt, safety belt, leather belt composite material, plastic profile, waterproof coil, steel pipe, copper, profile, spring steel, bearing steel, stainless steel (and other high hardness steel), casting, steel plate, steel belt, non-ferrous metal wire, and various tests such as stretching, compression bending, shearing, peeling, tearing, two-point extension (extensometer is required) under high temperature environment.
Applicable Industry
Widely used in metrology and quality inspection; clothing and footwear; rubber and plastics; metallurgy and steel; machinery manufacturing; electronic appliances; automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instrumentation; medical equipment; civil nuclear energy; civil aviation; colleges and universities; scientific research laboratories; commodity inspection and arbitration, technical supervision departments; building materials and ceramics; petrochemical industry; and other industries.
Technical Parameters
Maximum load | 20T |
Accurate grade | 0.5 grade |
Effective force measurement range | 0.4%～100% (referring to the effective force measurement range) |
Force measurement accuracy | Within ±0.5% of the indicated value (force measurement accuracy value within the effective force measurement range) |
Testing machine resolution | Maximum load 1/200000, no internal or external division, and the full-range resolution remains unchanged |
Effective test width | Standard width 550mm, can be customized and widened according to customer needs |
Test speed range | 0.01～200mm/min 0.01～500mm/min |
Displacement measurement accuracy | Within ±0.2% of the indicated value |
Large deformation measurement system | Gauge length 10-100mm adjustable, deformation range: standard 800mm, special customizable |
Small deformation measurement system | Gauge length 25mm, 50mm, 100mm Deformation: 5mm, 10mm, 25mm |
Power supply | AC380V 50Hz three-phase five-wire |
Power | 7.5KW |
Main unit weight | (approx.) 1500 KG |
Temperature range | -30-60℃ |
Heat-up time | Average 3.0℃/min (no heat source in the box) |
Heat-up time | Average 1.0℃/min (no heat source in the box) |
Inner box size | 400*400*800mm |
Controller | Imported color touch screen |
Temperature sensor | Platinum resistor PT100Ω/MV |
Heating system | Fully independent system, nickel-chromium alloy electric heating heater |
Refrigeration system | Compressor |
Circulation system | Heat-resistant and low-noise air-conditioning motor. Multi-blade centrifugal fan |
Outer box material | SUS304 stainless steel matte line hairline treatment |
Inner box material | SUS304 stainless steel high-quality mirror light plate |
Insulation material | Polyurethane hard foam, ultra-fine glass fiber cotton |
Door frame insulation | Double-layer high and low temperature resistant aging silicone rubber door seal |
.
